High cost performance LED Street Light
150w LED Street Light is designed to provide the best balance of public safety and return on investment for towns of all sizes. ZGSM is one of the best factories of street lighting fixtures in China, who offer road owners and municipal managers the best possible lighting options. With our LED public lights, we provide solutions for commercial, residential, and industrial projects.
Streetlight, street lighting led, outdoor street light, commercial led street lights, led roadway light
1.70% energy saving, short ROI period
2. Up to 100, 000hrs @ L70, low maintenance cost
3.World class, approbated quality components (LEDs /Driver /etc.)

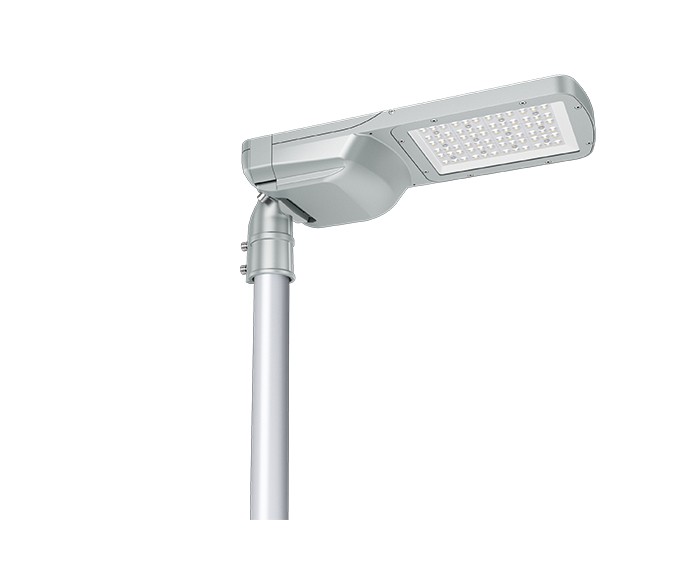

4. Support horizontal and vertical mounted, suitable for different light poles

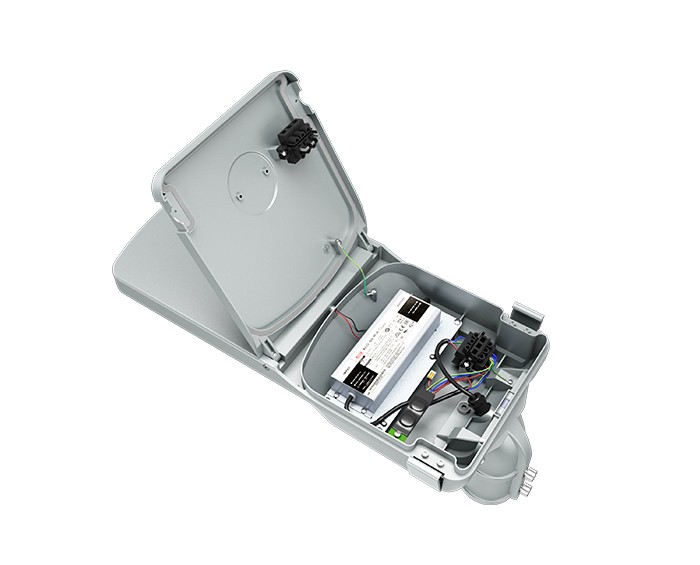

5. Tool-less opening of driver box, ease of maintenance
6. 5 years warranty
7. CE, RoHS, CB, ENEC, LM-79, LM-80, ISTMT, ISO9001, ISO14001 Certified for both Class I & Class II Version.
8. Accessories of Photocell, Motion Sensor, Smart Control System (LORA & ZIGBEE), NEMA Socket (3/5/7 Pin), ZHAGA Socket available for options.
Model | ZGSM-ST17-150M |
LED Brand | LUMILEDS 3030 OR 5050 |
Driver Brand | Inventronics /Other brands on request |
Normal Wattage | 150W |
Input Voltage | 100-240/277VAC |
Power Efficiency | >90% |
Power Factor | >0.95 |
Lamp Rated Luminous Efficiency | 145-155lm/w |
Lamp Rated Lumen output | 21750-23250 lm (Lumen tolerance +/- 5%) |
Color Rendering Index | 70 (80 is optional) |
Color Temperature | 3000K, 4000K, 5000K, 5700K |
Photometric Type | Type II, Type III |
Optimal Operating Temperature | 25℃ |
Storage Temperatures | -40°C~50°C |
Working Environment | Between-40°C~+50°C, 10%~90%RH |
Total Harmonic Distortion | <10% |
Lumen Maintenance | >100,000 hours -L70, @25 ºC (77 ºF) |
Body | High-pressure die-cast aluminum |
Cover | Tempered glass |
Rating | IP66 IK10 |
Protection | Class I (Default) /Class II |
Certification | CE, RoHS, ENEC, CB, LM79, LM80, TM-21 |
Dimming Options | 1-10V Dimming (Default) /Timer Dimming |
Available on request | NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, Knife switch, NTC, OLC, Solar Compatible, DALI Dimming |
Color Options | Gray (Default) /Black (available on request) |
Warranty | 5 years |
Smart street lights refer to public street lights that adapt to the movement of pedestrians, cyclists, and cars in smart cities. Also known as adaptive street lighting, it lights up when it senses activity and dims when it doesn't. This is different from traditional fixed lighting, as well as dimmed lighting on a timer.
In addition to thermal management, make sure that the street light you choose has:
1. Recyclable, tested materials.
2. Wide enough power range.
4. Replaceable components.
5. High IP & IK rating.
6. Long-term guarantee.
7. Smart City Compatibility.
IEC protection Class II power supplies will have a two-wire power cord as opposed to a three-wire power cord with Safety Earth connection.The concentric square symbol or the words "Class II" or "double insulated" are frequently used to identify products having Class II insulation on safety labels.
