120w led light street

ZGSM's 120w led street light, with modern design and ultra-high lumen output, NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, Knife switch, NTC, OLC, Solar Compatible, DALI Dimmingaims are available on request, Create cost-effective smart street lights. As a manufacturer of outdoor lighting, we are professional.


PRODUCT DESCRIPTION

Key Features

led light street, street light waterproof, city streetlight, street light suppliers, best street light

1.70% energy saving, short ROI period

2. Up to 100, 000hrs @ L70, low maintenance cost

3. World-class, approbated quality components (LEDs /Driver /etc.)

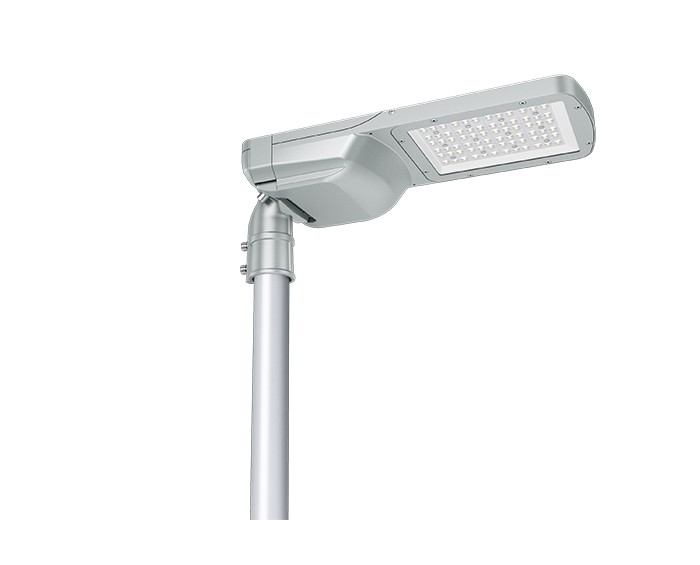

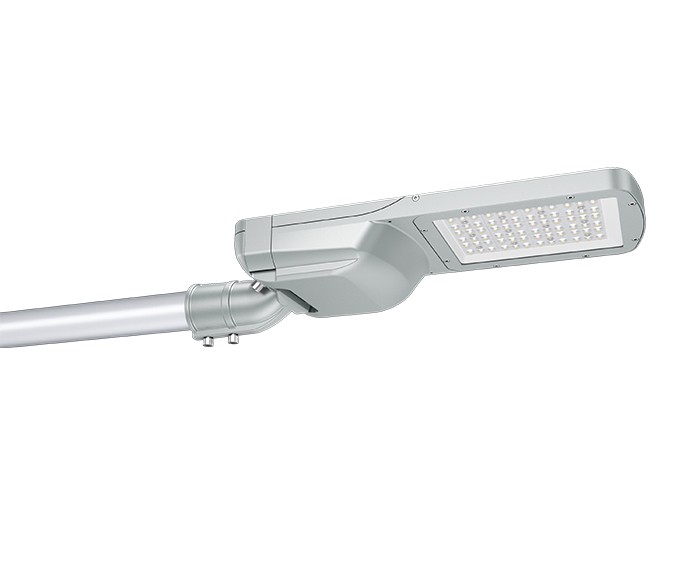

4. Support horizontal and vertical mounted, suitable for different light poles

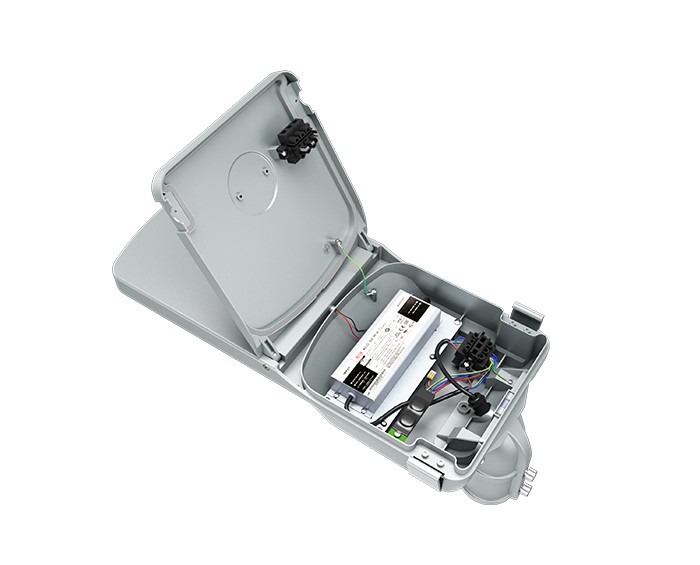

5. Tool-less opening of driver box, ease of maintenance

6. 5 years warranty


Specifications

ModelZGSM-ST17-120M
LED BrandLUMILEDS   3030 OR 5050
Driver BrandInventronics   /Other brands on request
Normal Wattage120W
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency155-160lm/w
Lamp Rated Lumen output18600-19200   lm (Lumen tolerance +/- 5%)
Color Rendering Index70   (80 is optional)
Color Temperature3000K,   4000K, 5000K, 5700K
Photometric TypeType II, Type III
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C,   10%~90%RH
Total Harmonic Distortion<10%
Lumen Maintenance>100,000 hours -L70, @25 ºC (77 ºF)
BodyHigh-pressure die-cast aluminum
CoverTempered glass
RatingIP66  IK10
Protection Class I (Default) /Class II
CertificationCE, RoHS, ENEC, CB, LM79, LM80, TM-21
Dimming Options1-10V Dimming (Default) /Timer Dimming
Available on requestNEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, Knife   switch, NTC, OLC, Solar Compatible, DALI Dimming
Color OptionsGray (Default) /Black (available on request)
Warranty5   years


FAQ

Why are LED street lights white?

A higher CCT grade usually means a higher blue content and the whiter the light appears. CCT 4000K or 5000K white LEDs contain high levels of short-wavelength blue light; this has become an option for many cities that have recently revamped street lighting.


How do smart street lights work?

The intelligent street lighting system consists of a set of street lights that can communicate with each other and provide lighting data to the local concentrator. The concentrator manages the relevant data and transmits it to a secure server, which captures the data and presents it in a web browser dashboard.
