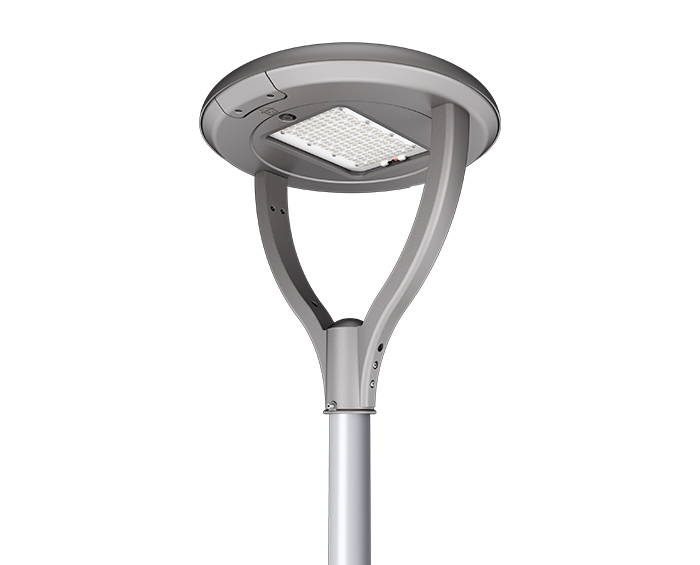

Tool-less LED Street Light

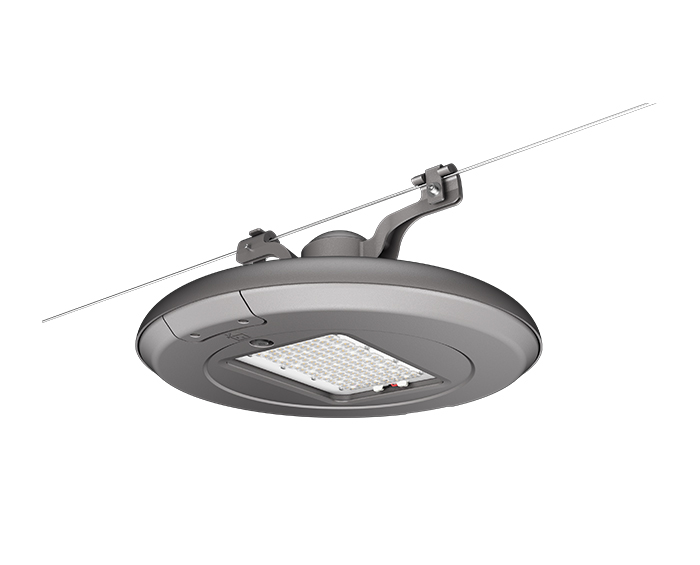

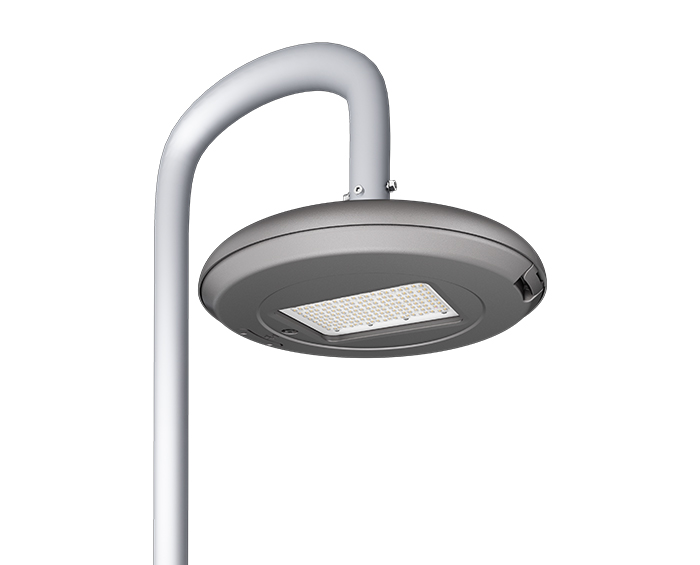

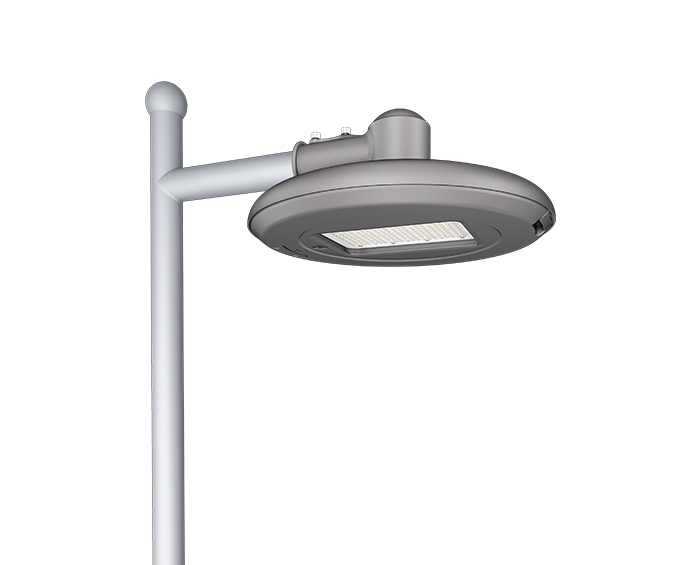

The exterior design of modern street lamps is more novel, and the L series street lights launched by ZGSM not only have a modern appearance but also meet the needs of modernization with a multi-purpose design. Post-Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional. Meet any installation environment you need.
1. Wide power range: 27W~120W
2. Special circuit design, single LED damage won't affect others' normal work
3. Tool-less open for easy installation, replacement, and maintenance.
4. Power-off protection makes the power automatically off when the fixture is opened
5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.
6. Breather ensures air balance inside and outside of the lamp
7. High Lumen output up to 150lm/w with high quality LED chips

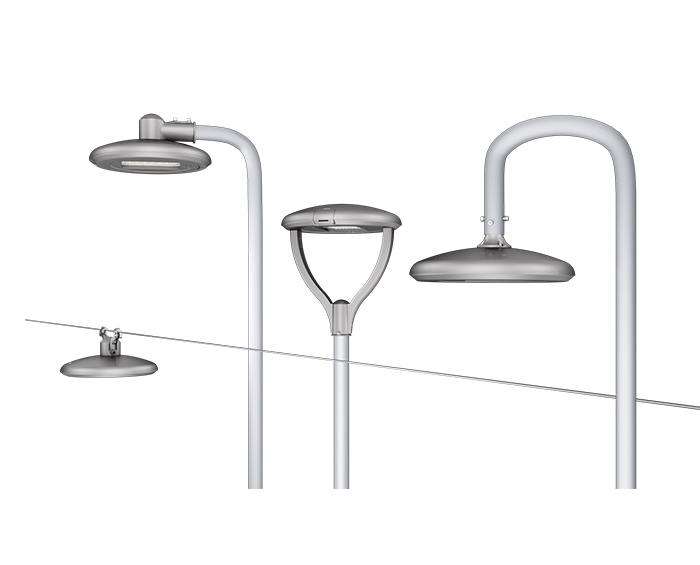

8. Post Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.
9. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell
10. Designed to last at least 100,000 hours at L70
11. Multiple lighting distributions are available
12. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79
13. 7 years limited warranty available.
|Model||ZGSM-LD120LMX( X= A,B,C,D)|
|LED Brand||LUMILEDS® LUXEON 3030 or 5050|
|Driver Brand||Meanwell / Inventronics|
|LED Chip Quantity||3030: 168pcs 5050: 84pcs|
|Lamp Rated Luminous Efficiency||125-145 lm /w|
|Lamp Rated Lumen output||15000-17400 lm (Lumen tolerance +/- 5%)|
|Color Rendering Index||70 (80 optional)|
|Color Temperature||3000K, 4000K, 5000K, or 5700K|
|Photometric Type||Type I Medium; Type II Medium; Type III Medium; TypeV, Short|
|Optimal Operating Temperature||25℃|
|Working Environment||Between-40°C~+50°C, 10%~90%RH|
|Total Harmonic Distortion||< 10%|
|Lumen Maintenance||> 100,000 hours -L70, @25 ºC (77 ºF)|
|Wind Index||Force 12|
|Body and Shell Materials||Die-cast aluminum; Tempered Glass|
|Pole Fitter Diameter||60mm|
|Protection||Class I ( Class II optional)|
|SPD||10KV (20KV optional)|
|Certification||CE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT|
|Dimming Options||1-10V or DALI or PWM or Timer|
|Control Options||Photocell or Motion sensor or Smart control|
|Color Options||Deep grey|
The types of street lights are as follows
Metal halide street lights
High-pressure sodium (HPS) street lamp
Low-pressure sodium (LPS) street lamp
Light-emitting diode (LED) street lights
Phosphorescent conversion amber (PCA) LED street lights
Narrowband amber (NBA) LED street lights
Consider the following factors for street lamp wattage and pole height:
The distance between the two poles.
Installation area: rural, urban, or metro city?
Public or private use.
There is no need to worry about blue lights emitted by LED street lighting disrupting sleep. The blue light from LEDs is identical to that from other light sources, according to the US Department of Energy. The intensity of light at night is more crucial. The amount of light, the timing, and the duration of light exposure all have a role in the disruptive effect. LED street lighting produces light levels that are too low to alter hormone levels that regulate our sleep habit, according to research.
