Multi-purpose Toolless LED Pole Lights designed with round UFOs, beautiful appearance, can be used for outdoor decoration applications, Post Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional. There are a variety of spectral types to choose from to meet different lighting needs.
1. Wide power range: 27W~120W
2. Special circuit design, single LED damage won't affect others' normal work
3. Tool-less open for easy installation, replacement, and maintenance.
4. Power-off protection makes the power automatically off when the fixture is opened
5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.
6. Breather ensures air balance inside and outside of the lamp
7. High Lumen output up to 150lm/w with high-quality LED chips

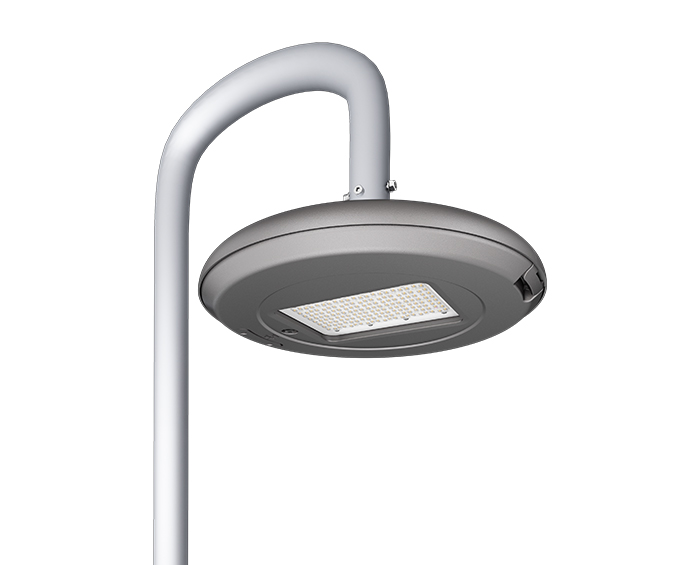

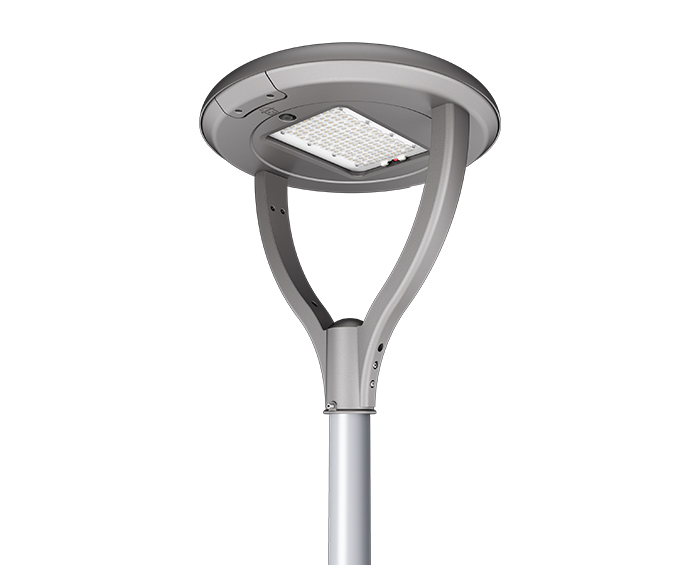

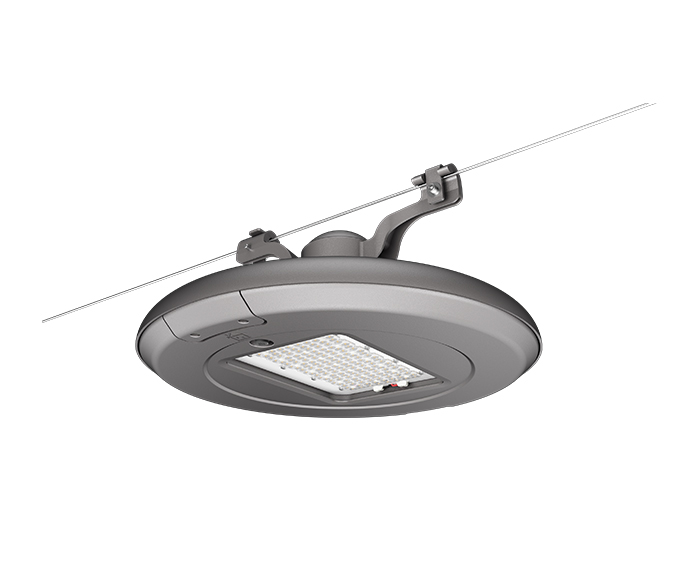

8. Post Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.
9. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell
10. Designed to last at least 100,000 hours at L70
11. Multiple lighting distributions are available
12. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79
13. 7 years limited warranty available.
|Model||ZGSM-LD90LMX( X= A,B,C,D)|
|LED Brand||LUMILEDS® LUXEON 3030 or 5050|
|Driver Brand||Meanwell HLG series/ Inventronics|
|LED Chip Quantity||3030: 168pcs 5050: 84pcs|
|Lamp Rated Luminous Efficiency||130-150 lm /w|
|Lamp Rated Lumen output||11700-13500 lm (Lumen tolerance +/- 5%)|
|Color Rendering Index||70 (80 optional)|
|Color Temperature||3000K or 4000K or 5000K or 5700K|
|Photometric Type||Type I Medium; Type II Medium; Type III Medium; TypeV, Short|
|Optimal Operating Temperature||25℃|
|Working Environment||Between-40°C~+50°C, 10%~90%RH|
|Total Harmonic Distortion||< 10%|
|Lumen Maintenance||> 100,000 hours -L70, @25 ºC (77 ºF)|
|Wind Index||Force 12|
|Body and Shell Materials||Die-cast aluminum; Tempered Glass|
|Pole Fitter Diameter||60mm|
|Protection||Class I ( Class II optional)|
|SPD||10KV (20KV optional)|
|Certification||CE, ENEC, CB ROHS, LM80, LM79, IP66 IK08, ISTMT|
|Dimming Options||1-10V or DALI or PWM or Timer|
|Control Options||Photocell or Motion sensor or Smart control|
|Color Options||Deep grey|
LED pole luminaires are mounted on top of the poles and have type III, IV, or V distributions to illuminate the area around the poles. Pillar top lights can be used for decorative outdoor applications with different shapes, sizes, and color finishes.
The types of street lights are as follows:
High-pressure sodium (HPS) street lights;
Low-pressure sodium (LPS) street lamps;
Light-emitting diode (LED) street lights;
Phosphorescent conversion amber (PCA) LED street lights;
Narrowband amber (NBA) LED street lights.
Color temperature is expressed in Kelvin and is a mathematical calculation based on a light source's Spectral Power Distribution (SPD). It enables a large range of unique color combinations. Different combinations of Correlated Color Temperature (CCT) and Color Rendering Indexes (CRI) are available in LED lighting, which can have different impacts on eyesight. The color temperature is measured in degrees Kelvin, with a warm light (yellowish) being around 2700K, neutral white being approximately 4000K, and cool white (bluish) being around 5000K or more.
Protecting the public with lighting that promotes alert drivers and a safe environment may be the greatest priority in many outdoor applications, to explain why it's necessary. In those circumstances, the suggested color temperature is used, taking into account the space and the people who will be using it.
