Suspended Mounted LED Street Light

Home  /  Products / LED Street Light / Suspended Mounted LED Street Light
  • European style 37w outdoor hanging light fixtures
  • European style 37w outdoor hanging light fixtures
  • European style 37w outdoor hanging light fixtures
  • European style 37w outdoor hanging light fixtures
  • European style 37w outdoor hanging light fixtures

European style 37w outdoor hanging light fixtures

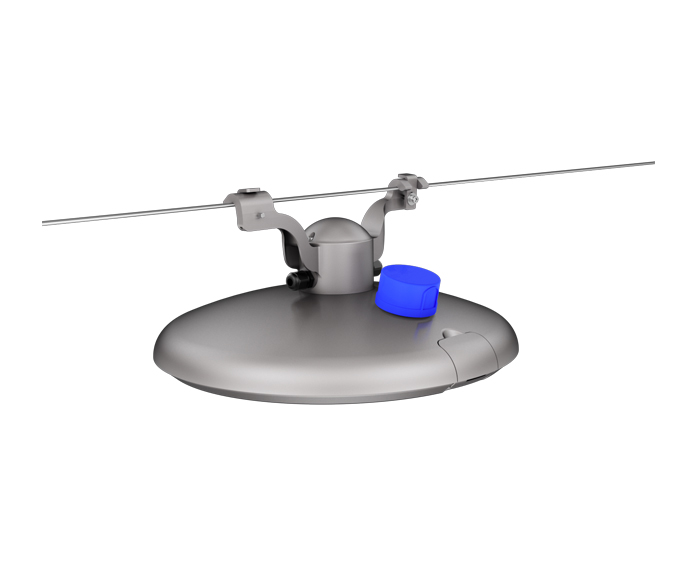

Hanging street lights are a kind of outdoor hanging light fixtures, also named hanging or overhanging street lights, specially designed for Europe. mounted on wire ropes, and are common in Europe. Post-Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional. Meets all installation environments.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 27W~120W

2. Special circuit design, single LED damage won't affect others' normal work

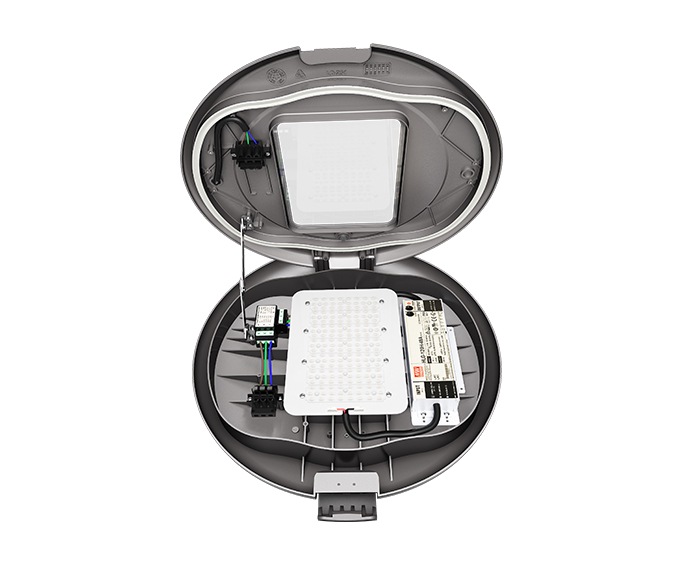

3. Tool-less open for easy installation, replacement, and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Breather ensures air balance inside and outside of the lamp

7. High Lumen output up to 150lm/w with high quality LED chips

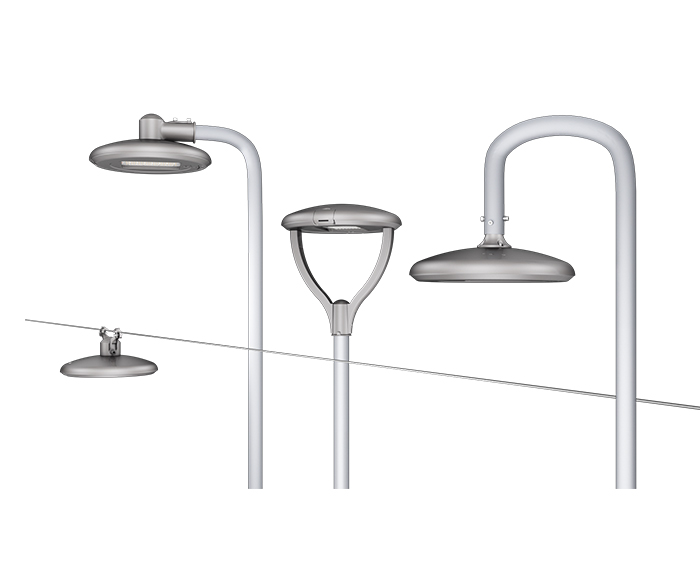

8. Post Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.

9. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell

10. Designed to last at least 100,000 hours at L70

11. Multiple lighting distributions are available

12. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

13. 7 years limited warranty available.


Specifications

ModelZGSM-LD37LMD
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics
Normal Wattage37W
LED Chip Quantity3030: 96pcs 5050: 48pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-150 lm /w
Lamp Rated Lumen output4810-5550 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium; TypeV, Short
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; Tempered Glass
Rope Diameter6-12mm
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC, CB ROHS, LM80, LM79, IP66 IK08, ISTMT
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey
Warranty7 years


FAQ

How to choose a street lamp?

In addition to thermal management, make sure that the street light you choose has:

  • Recyclable, tested materials.

  • Wide enough power range.

  • Wide optical spectrum.

  • Replaceable components.

  • High IP & IK rating.

  • Long-term guarantee.

  • Smart City Compatibility.


What is intelligent or smart street lighting?

Smart street lights refer to public street lights that adapt to the movement of pedestrians, cyclists, and cars in smart cities. Also known as adaptive street lighting, it lights up when it senses activity and dims when it doesn't. This is different from traditional fixed lighting, as well as dimmed lighting on a timer.
