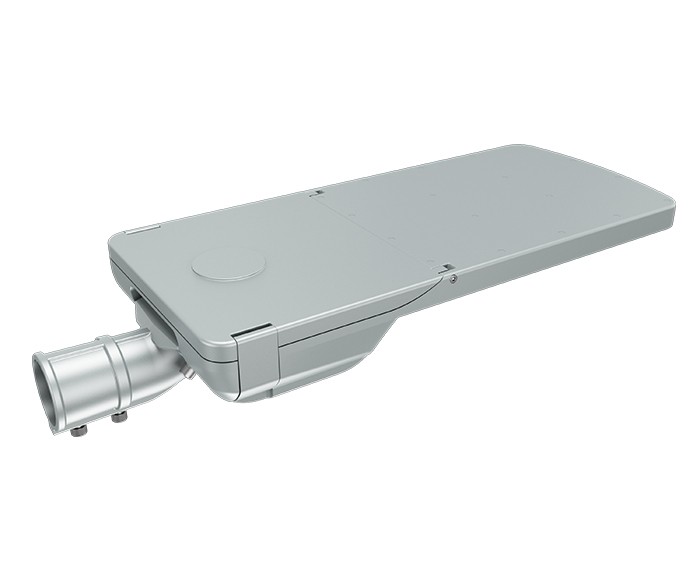

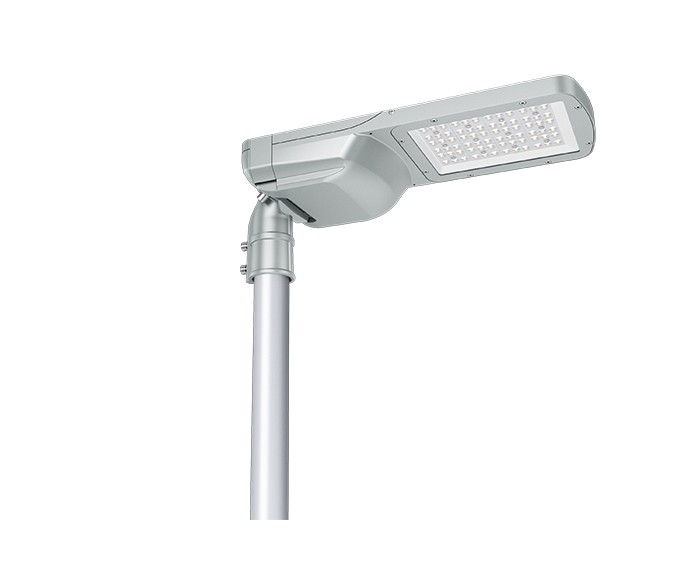

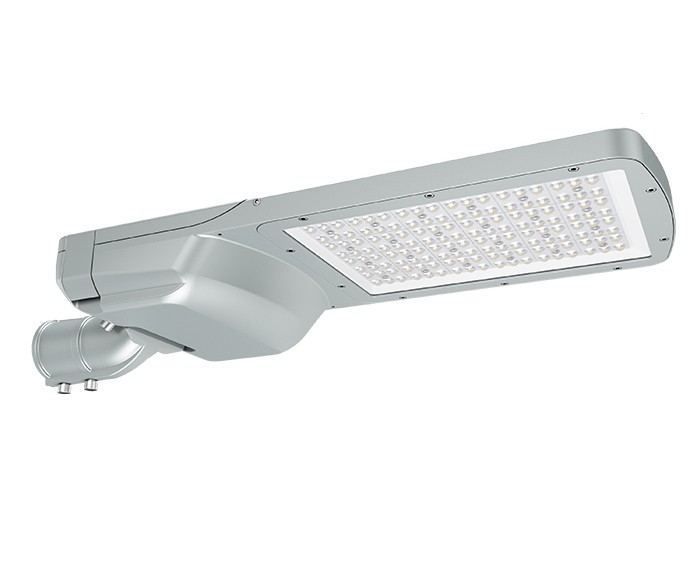

40w Smart city glass cover led street light

NEMA socket (3/5/7pins), ZHAGA socket, short cap, photocell, motion sensor, knife switch, NTC, OLC, solar compatible, DALI dimming, all of the above can be implemented on our rifle series street lights to achieve smart City, improve the quality of the city.

Reduce energy costs. Smart street lights manage electricity more efficiently than simple LED luminaires, resulting in even more cost savings.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. 70% energy saving, short ROI period

2. Up to 100, 000hrs @ L70, low maintenance cost

3. World-class, approbated quality components (LEDs /Driver /etc.)

4. Support horizontal and vertical mounted, suitable for different light poles

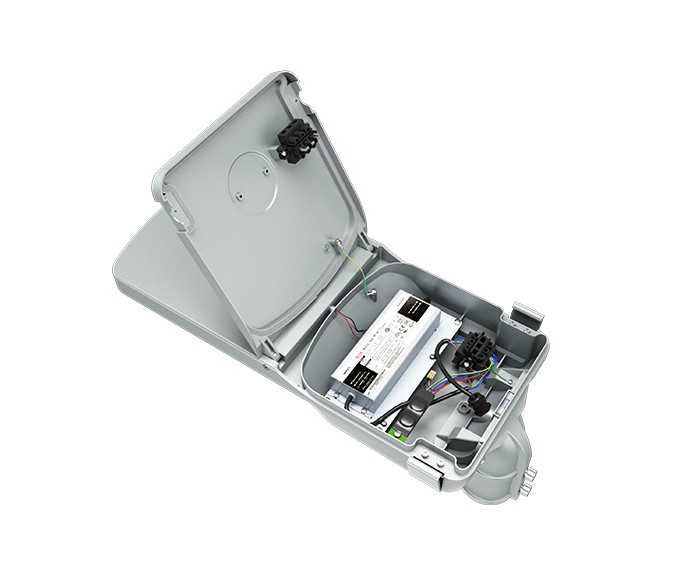

5. Tool-less opening of driver box, ease of maintenance

6. 5 years warranty

Specifications

Model	ZGSM-ST17-40S /ZGSM-ST17-40S+
LED Brand	LUMILEDS 3030 or 5050
Driver Brand	Inventronics /Other brands on request
Normal Wattage	40W
Input Voltage	100-240/277VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	150-165lm/w
Lamp Rated Lumen output	6000-6600 lm (Lumen tolerance +/- 5%)
Color Rendering Index	70 (80 is optional)
Color Temperature	3000K, 4000K, 5000K, 5700K
Photometric Type	Type II, Type III
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Body	High-pressure die-cast aluminum
Cover	Tempered glass
Rating	IP66, IK10
Protection	Class I (Default) /Class II
Certification	CE, RoHS, ENEC, CB, LM79, LM80, TM-21
Dimming Options	1-10V Dimming (Default) /Timer Dimming
Available on request	NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, Knife switch, NTC, OLC, Solar Compatible, DALI Dimming
Color Options	Gray (Default) /Black (available on request)
Warranty	5 years

FAQ

Some things you need to know about smart street lights and intelligent control systems

What are smart street lights？

Smart street lights are public lighting fixtures that combine technologies such as cameras, photosensitive photocells, and other sensors to introduce real-time monitoring capabilities.

importance

Smart street lights can help monitor traffic flow, parking, crosswalks, seismic activity, or changes in the atmosphere. They can be equipped with speakers to alert people to dangerous situations or conditions, or cameras to help police solve cases or verify garbage collection and other activities. Smart street lights contribute to more livable cities by helping to improve safety and reduce congestion. Reduce energy costs. Smart street lights manage electricity more efficiently than simple LED luminaires, resulting in even more cost savings. Increase revenue opportunities.

control

The intelligent street light control system allows the city to easily arrange the on or off of the lights and sets the dimming level of the lights so that the city can intelligently provide the right lighting level. Smart and intelligent street lighting control systems are primarily designed to improve energy efficiency.
