Multi-purpose 37w Tool-less City Street Lighting

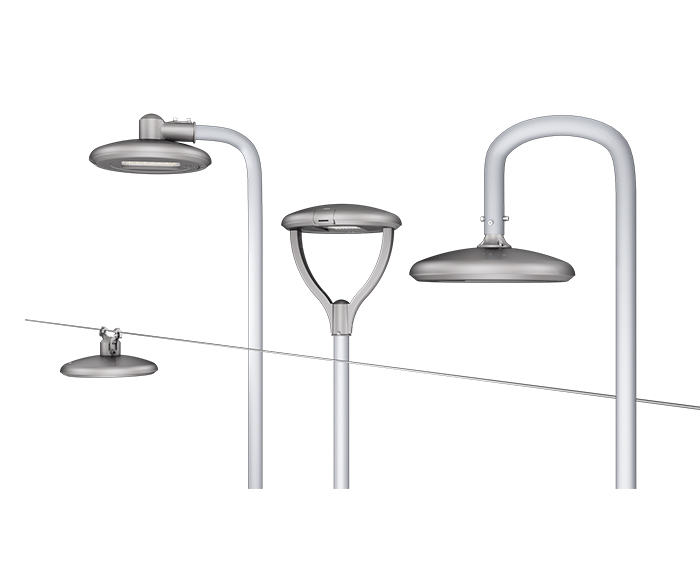

Multi-purpose 37w Tool-less City Street Lighting, The round design is beautiful and elegant, and different installation methods are suitable for different installation places, Post-Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional. Meet your lighting requirements for any environment.



Key Features

1. Wide power range: 27W~120W

2. Special circuit design, single LED damage won't affect others' normal work

3. Tool-less open for easy installation, replacement, and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Breather ensures air balance inside and outside of the lamp

7. High Lumen output up to 150lm/w with high quality LED chips

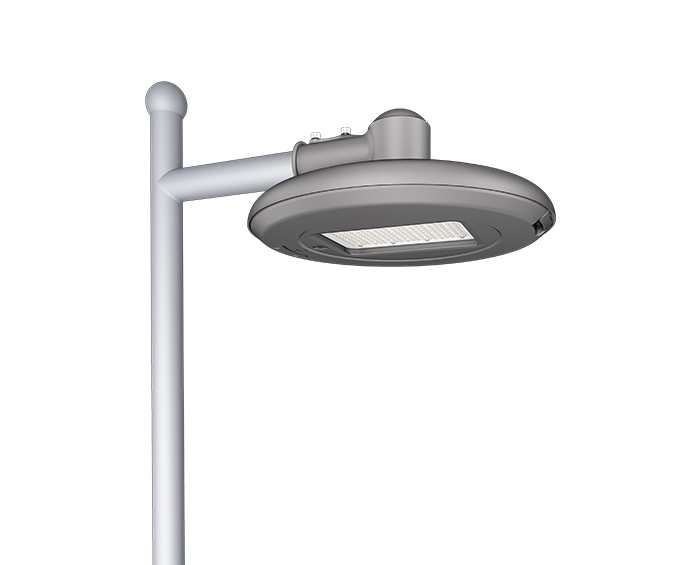

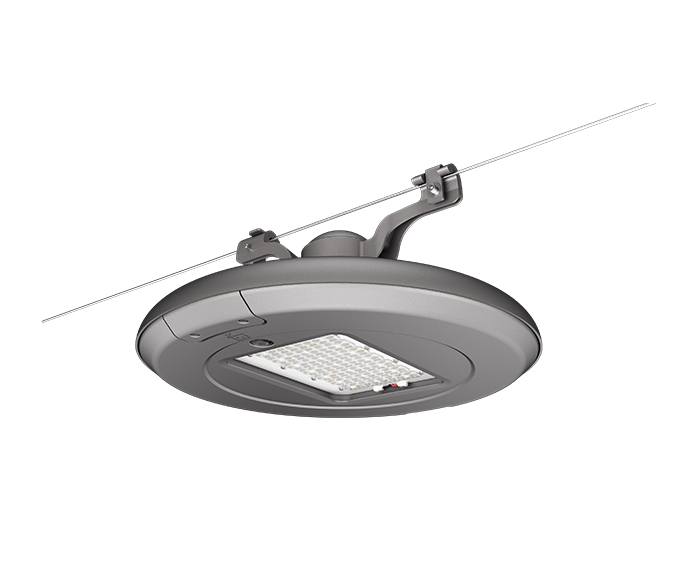

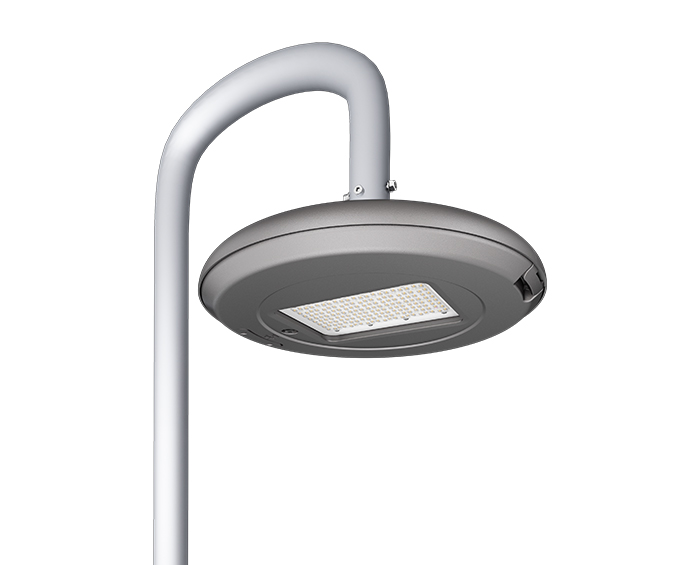

8. Post Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.

9. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell

10. Designed to last at least 100,000 hours at L70

11. Multiple lighting distributions are available

12. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

13. 7 years limited warranty available.


ModelZGSM-LD37LMX( X= A,B,C,D)
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics
Normal Wattage37W
LED Chip Quantity3030: 96pcs 5050: 48pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-150 lm /w
Lamp Rated Lumen output4810-5550 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K, or 4000K, or 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium; TypeV, Short
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; Tempered Glass
Pole Fitter Diameter60mm
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC, CB, ROHS, LM80, LM79, IP66, IK08, ISTMT
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey
Warranty7 years


1. Which lamp is best for street lights?

Warm white LED street lights and parking lights (CCT of 3000K or less) are better choices for public outdoor areas. They emit much less blue light — imperceptible to the naked eye — and are currently the best choice for street lighting.

2. How much electricity does a street lamp use in a day?

Considering that modern LED street light units typically consume around 80 watts of power, this is an area that requires immediate attention to save energy and improve the efficiency of street lights.

3. What voltage are LED street lights?

The most frequent operating voltage for streetlights was 120 volts (62 percent), followed by 240 volts (28 percent ). The majority of entities that own streetlights (82 percent) employ individual photocells to operate the streetlight's on/off function.
