60w led street light | ZGSM

60w led street light, This is a smart modern street lamp, which can be combined with different accessories to achieve the effect you want to achieve. such as NEMA, ZHAGA, Short cap, Photocell, Motion sensor, DALI Dimming, etc., and can realize the intelligent lighting of urban roads.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1.70% energy saving, short ROI period

2. Up to 100, 000hrs @ L70, low maintenance cost

3. World-class, approbated quality components (LEDs /Driver /etc.)

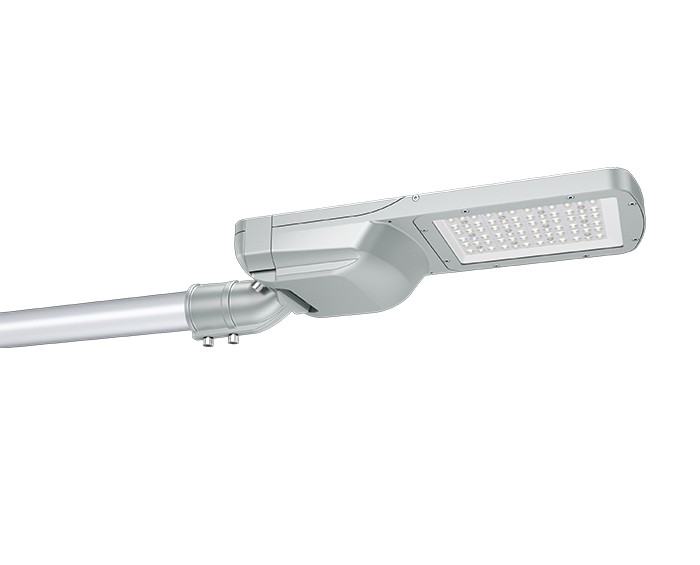

4. Support horizontal and vertical mounted, suitable for different light poles

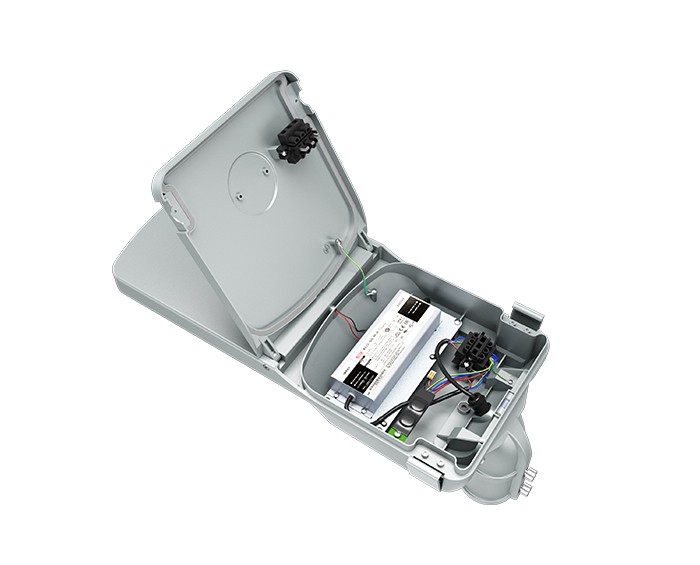

5. Tool-less opening of driver box, ease of maintenance

6. 5 years warranty

Specifications

Model	ZGSM-ST17-60S
LED Brand	LUMILEDS 3030 OR 5050
Driver Brand	Inventronics /Other brands on request
Normal Wattage	60W
Input Voltage	100-240/277VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	150-160lm/w
Lamp Rated Lumen output	9000-9600 lm (Lumen tolerance +/- 5%)
Color Rendering Index	70 (80 is optional)
Color Temperature	3000K, 4000K, 5000K, 5700K
Photometric Type	Type II, Type III
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Body	High-pressure die-cast aluminum
Cover	Tempered glass
Rating	IP66, IK10
Protection	Class I (Default) /Class II
Certification	CE, RoHS, ENEC, CB, LM79, LM80, TM-21
Dimming Options	1-10V Dimming (Default) /Timer Dimming
Available on request	NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, Knife switch, NTC, OLC, Solar Compatible, DALI Dimming
Color Options	Gray (Default) /Black (available on request)
Warranty	5 years

FAQ

What are the advantages of smart street lighting systems?

Smart street lights can help monitor traffic flow, parking, crosswalks, seismic activity, or changes in the atmosphere. They can be equipped with speakers to alert people to dangerous situations or conditions, or cameras to help police solve cases or verify garbage collection and other activities.

What is an automatic street light controller?

Automatic street light control is used to control street lights (turned on and off according to the lights). Here we use LDR (photoresistor) and LEDs (light-emitting diodes) and Arduino.
