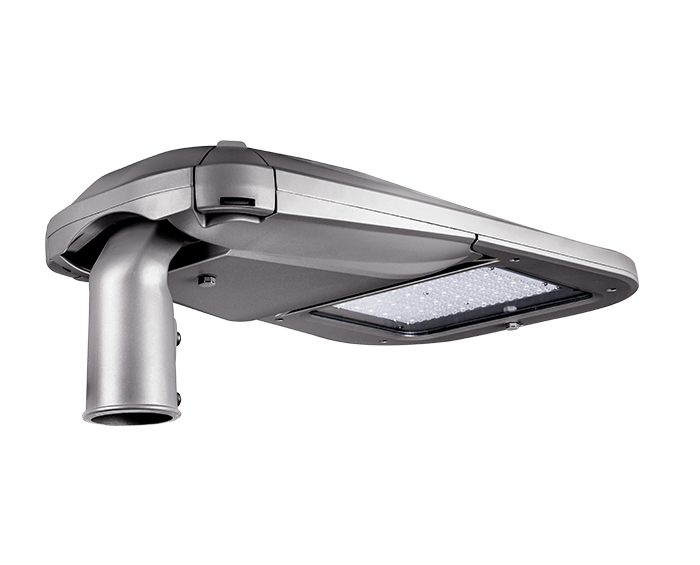

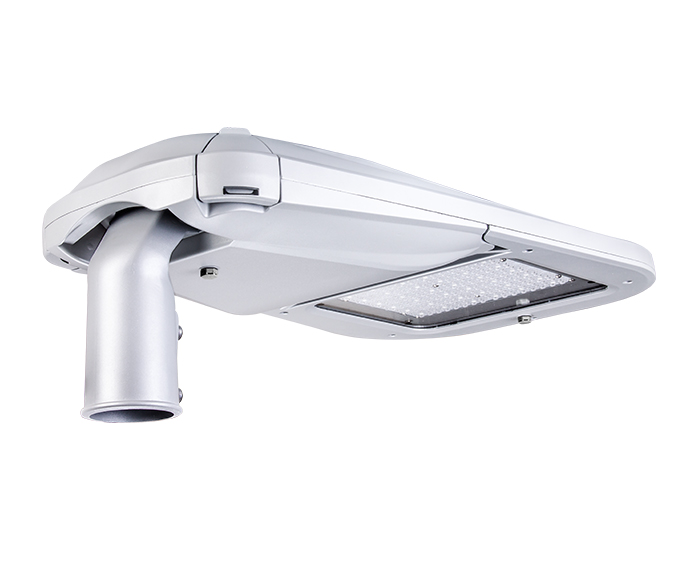

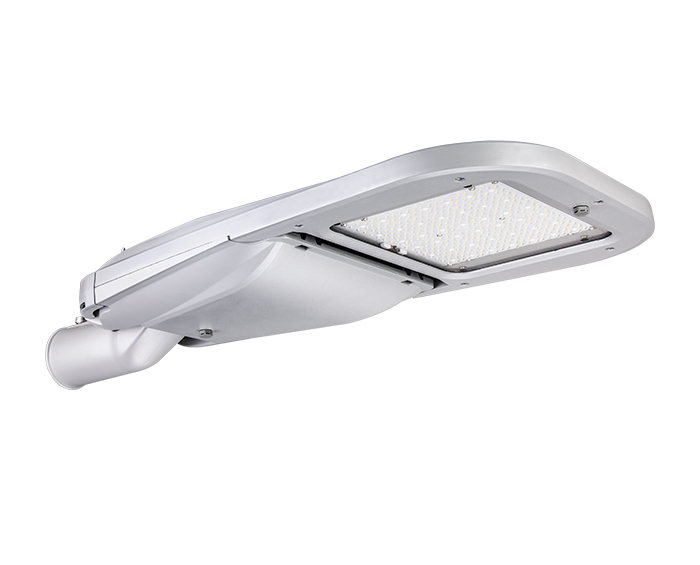

180W LED Street Lamp With 150lm/W

180W led street lamp has advantages of Tool-free opening, modern design, high luminous efficiency, high lumen output, equipped with high-quality power supply, there are three product specifications for you to choose. You can choose from a variety of accessories, to achieve an intelligent street light system.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

led street lamp, street lights, cobra street lighting, street lamp, outside street lights

1. Wide power range: 25W~200W.

2. Special circuit design, single LED damage won't affect others' normal work.

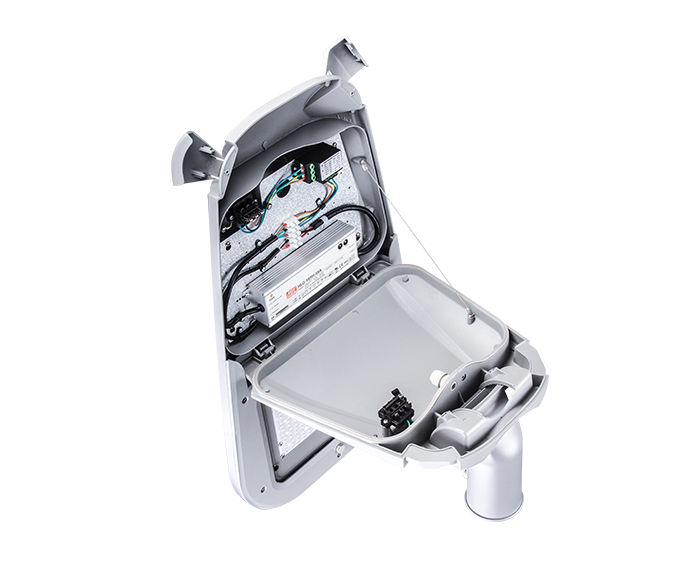

3. Tool-less open for easy installation, replacement, and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened.

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Level bubble makes it easy for the installer to adjust the position of the lamp.

7. High Lumen output up to 150lm/ w with high-quality LED chips.

8. Pass the 1000-hour salt spray test.

9. Vertical and horizontal installation are both available, adjustable by ±15° in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

14. 7 years limited warranty available.


Specifications

Specifications
ModelZGSM-LD180KL
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics/ Inventronics
Normal Wattage180W
LED Chip Quantity3030: 288pcs 5050: 144pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-150 lm /w
Lamp Rated Lumen output23400-27000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K, or 4000K, or 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum;Tempered Glass
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC,CB,ROHS,LM-80,LM79,ISTMT,IP66,IK08
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey or Light grey
Warranty7 years




FAQ

1. What is intelligent or smart street lighting?

Smart street lights refer to public street lights that adapt to the movement of pedestrians, cyclists, and cars in smart cities. Also known as adaptive street lighting, it lights up when it senses activity and dims when it doesn't. This is different from traditional fixed lighting, as well as dimmed lighting on a timer.


2. How many types of smart lights are there?

There are two types of smart lighting: smart bulbs and smart switches. Smart bulbs plug into your existing luminaires and are available in three different types: dimming, temperature-changing, and color-changing. Smart light switches replace your existing switches with ones that you can control remotely.


3. What is a NEMA socket/connector?

NEMA means National Electrical Manufacturers Association in the USA. NEMA connectors are power plugs and receptacles used for AC mains electricity in North America and other countries that use the standards set by the US National Electrical Manufacturers Association. The voltage ratings for NEMA wire devices range from 125 to 600 volts and the current values range from 15 to 60 amperes (A) (V). For each combination of voltage, electric current carrying capacity, and grounding system, different permutations of contact blade widths, shapes, orientations, and dimensions result in non-interchangeable connections.
