LED Street Light

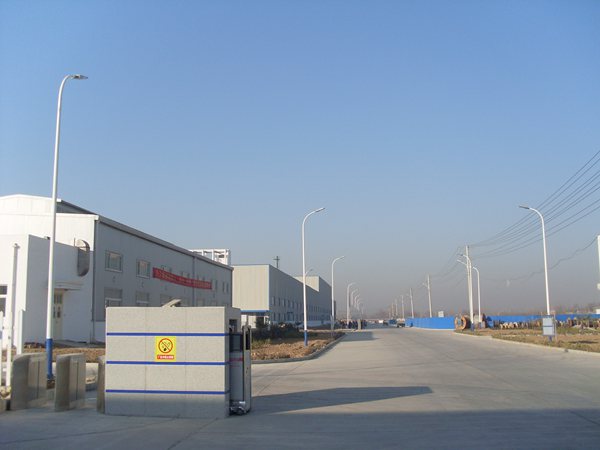

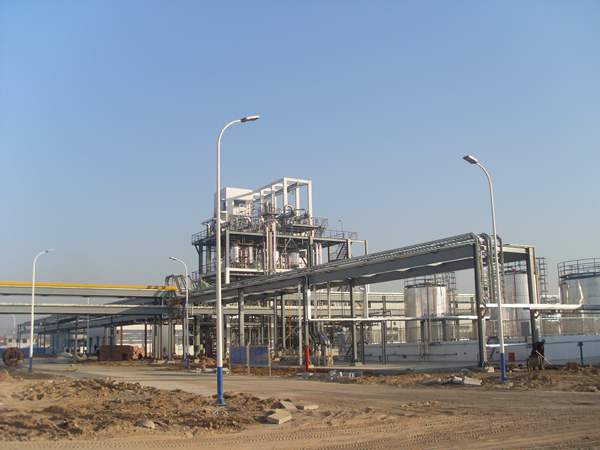

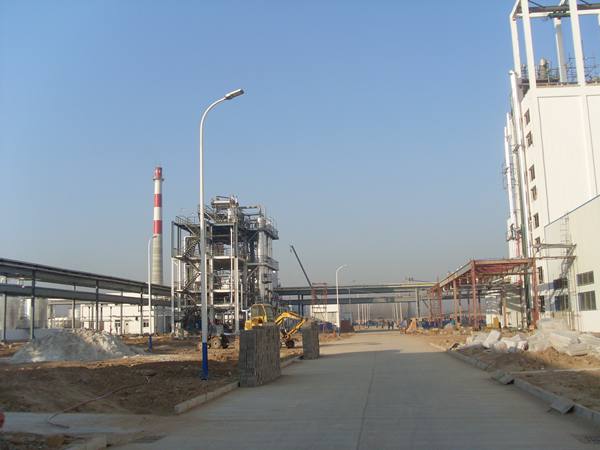

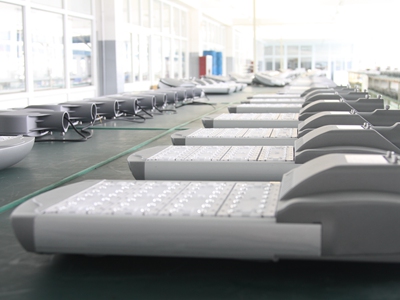

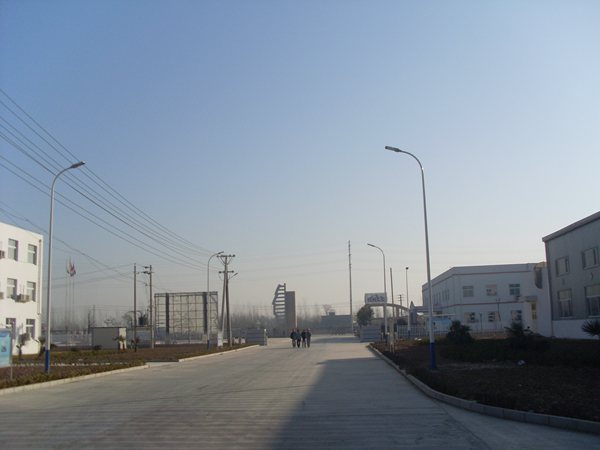

The coal chemical industrial factory lighting project in He'nan Province, China was finished in 2012. There are 144 units of 65W D series street lamps installed on the poles at a height of 6 meters. The design of this street lamp is in line with the style of this factory. With the high-end Meanwell drivers and high efficacy Lumileds chips, the estimated lifetime of our D series LED street lamps is more than 60000 hours. The street lamps in this project are still working well after installed for about 10 years.
Product: 65W LED Street Light
Model No.: ZGSM-LLD65WD
LED: Lumileds
Driver: Meanwell
CCT: 5000K
Optics: Type 2M
QTY: 144+ Units
(Note: D series LED street lights have been discontinued and replaced by H series.)

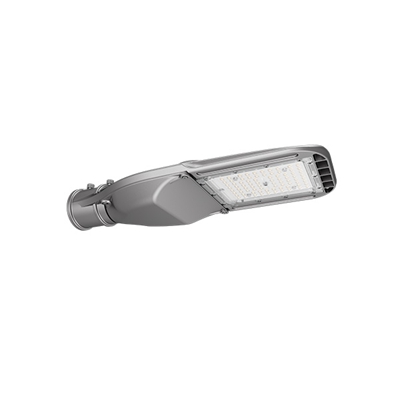

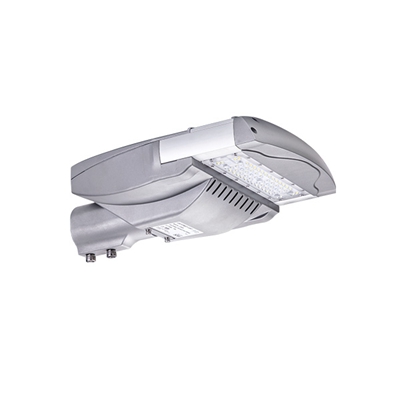

| Model | ZGSM-LD60H6 |
| LED Brand | Lumileds 3030/5050 |
| Driver Brand | Meanwell or Inventronics |
| Normal Wattage | 60W |
| LED Module Quantity | 1 module |
| Input Voltage | 100-240/277VAC/DC12/24V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 125-155 lm/w |
| Lamp Rated Lumen output | 7500-9300 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70( 80 optional） |
| Color Temperature | 3000K, 4000K, 5000K, or 5700K |
| Optic (IESNA) | Type I Medium; Type II Medium; Type III Medium, TypeV, Short |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body | Die-cast Aluminum Housing |
| Cover | PC lens |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE, ROHS, LM80, LM79, FCC, IP66, IK10 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Silver or Black |
| Warranty | 7 years |
Installation Manual_StreetLight_H.pdf
 |  |  |
 |  |  |
| Light Source Of LED Street Lamp |
For the design, manufacture, and distribution of products, there are standards that have been established by international and regional standardization bodies like CIE, IES, and CEN that are widely regarded as industry best practices. The LED lights manufacured by ZGSM are CE, RoHS, CB, UL, DLC, SAA, ENEC certified. The lighting solutions we provide meet the requirements of these standard.
A motion sensor is a device that recognizes physical movement on a product or in the surrounding area. Real-time physical and/or kinetic movements can be detected and recorded by it.
Another name for a motion sensor is a motion detector.
The motion sensors in LED lighting area are usually used for detecting passing persons or cars. When there are no persons or cars, the LED lights could work under energy-saving mode, for example 30% power. If there are persons or cars coming and detected by motion sensor, the motion sensor would turn the LED lights to 100% power automatically.
In comparison to traditional street lights, which typically include a reflector on the rear side of a high-pressure sodium lamp, most LED street lights have a lens on the LED panel that is designed to cast its light in a rectangular pattern.
