LED Street Light Project in Hangzhou, China

The city street lighting project in Hangzhou, China was finished in 2014. This is a city government project. ZGSM H series street lights LED won the bidding of dozens of competitors and were selected by the government for this urban street lighting project. After DIALux lighting design, we finally chose 122 units of 165W H series LED street lights with Meanwell driver and Lumileds chips. The relevant person in charge of the government is very satisfied with the lighting effect after completion. Later we collaborated many times on street lighting projects in other areas.


Product Details

165W LED Street Light, Model: ZGSM-LD165H, 5700K,1M, pole height=14M, 122pcs


Video

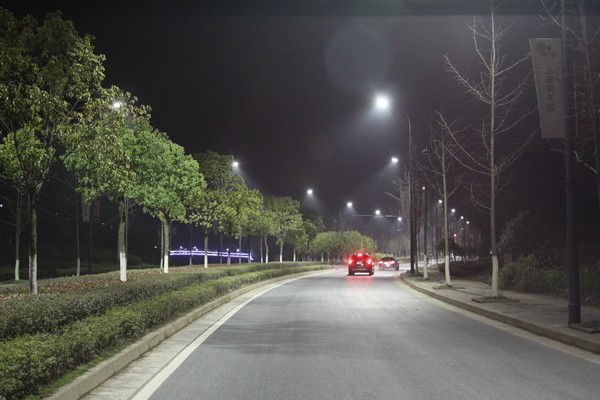

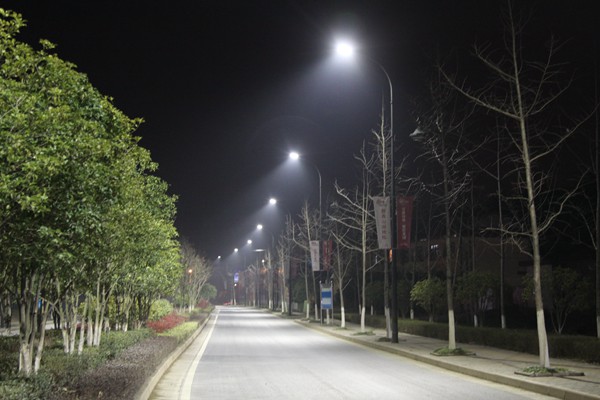

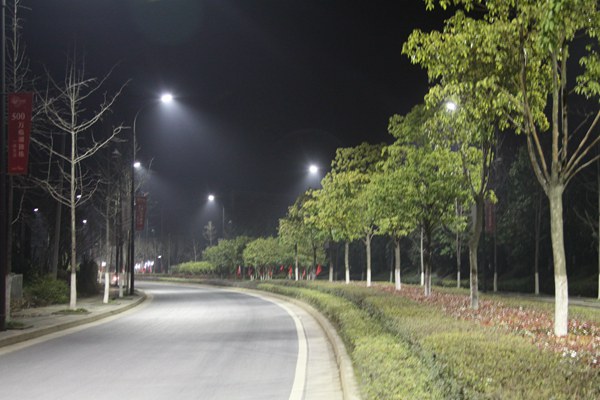

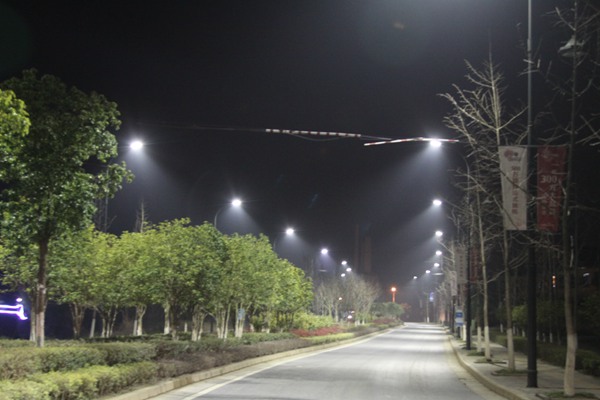

Project Photos


LED Street Light Project in Hangzhou, ChinaLED Street Light Project in Hangzhou, China

LED Street Light Project in Hangzhou, ChinaLED Street Light Project in Hangzhou, China


Specification


ModelZGSM-LD165H
LED BrandLumileds Luxeon TX
Driver BrandMeanwell or Inventronics
Normal Wattage165W
LED Module Quantity5 modules
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110lm/w
Lamp Rated Lumen output18150 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79,LM80,SAA
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years


Download


Installation Manual_StreetLight_H.pdf

Data Sheet_LEDStreetLight_H.pdf

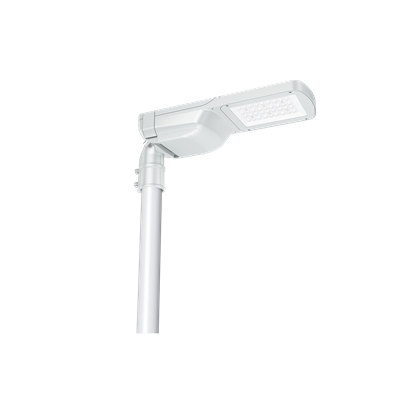

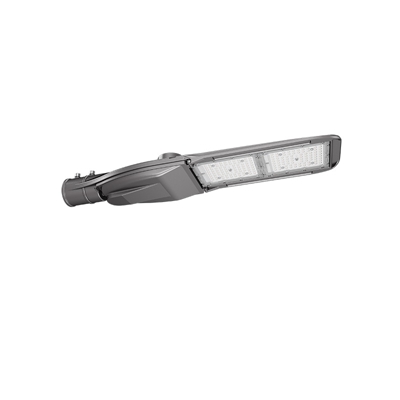

Related Products


LED Street Light Project in Hangzhou, ChinaLED Street Light Project in Hangzhou, ChinaLED Street Light Project in Hangzhou, China

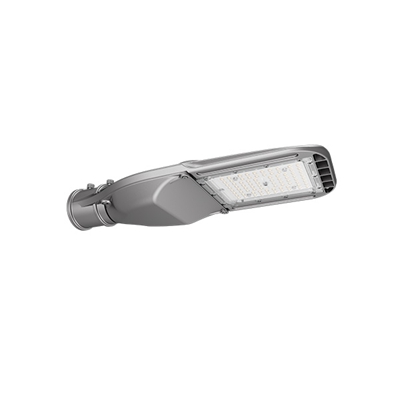

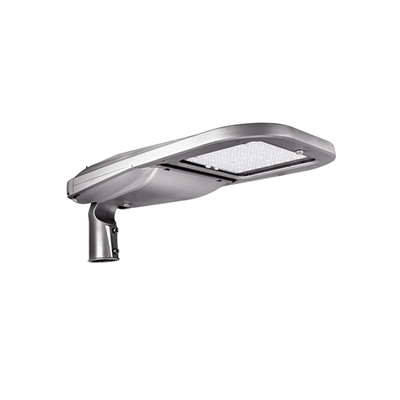

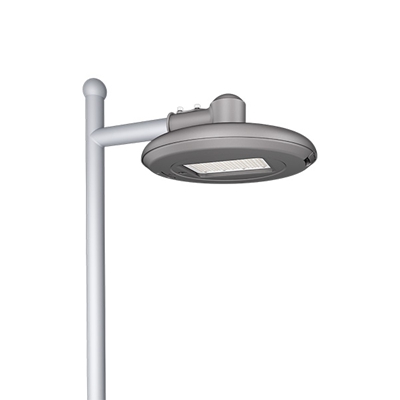

UL and DLC listed 165W Street Lighting Lamp80 watt Dali Dimming Street Light LED

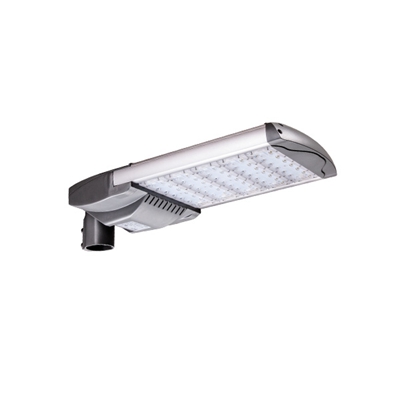

150w Cobra Head LED Street Light
LED Street Light Project in Hangzhou, ChinaLED Street Light Project in Hangzhou, ChinaLED Street Light Project in Hangzhou, China
Wholesale LED Street Lights 30W
Economical 100 Watt LED Street Light

120W Tool-less Outdoor Modern Street Lamp

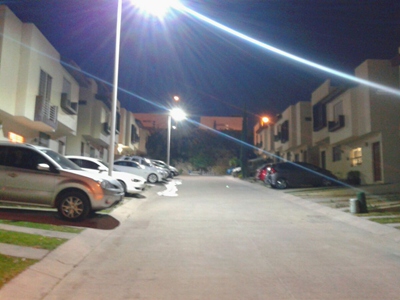

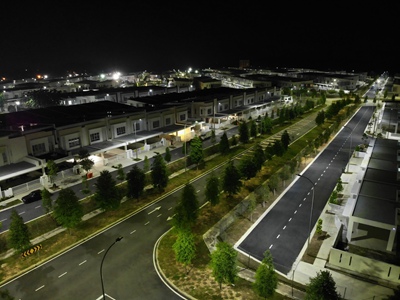

Related Projects


LED Street Light Project in Hangzhou, ChinaLED Street Light Project in Hangzhou, ChinaLED Street Light Project in Hangzhou, China

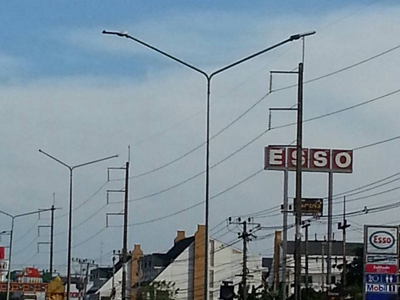

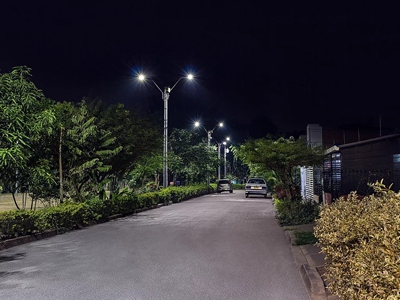

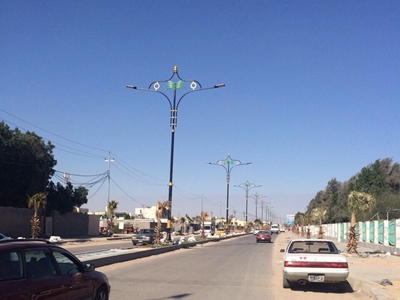

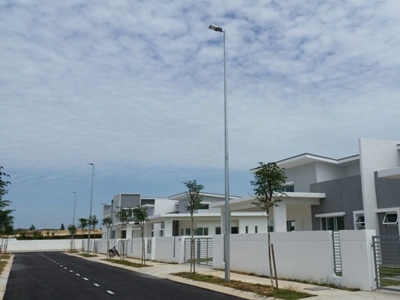

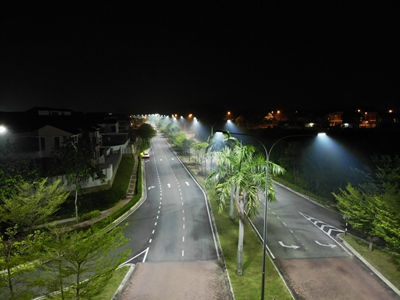

LED Street Light Project In IraqLED Street Light Project In Thailand

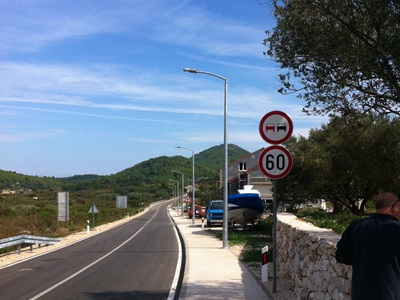

LED Street Light Project In Croatia
LED Street Light Project in Hangzhou, ChinaLED Street Light Project in Hangzhou, ChinaLED Street Light Project in Hangzhou, China

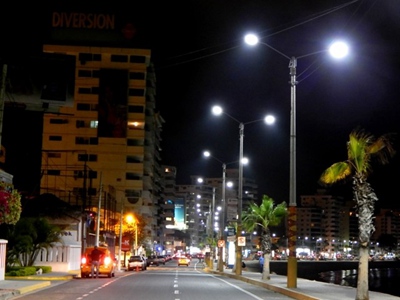

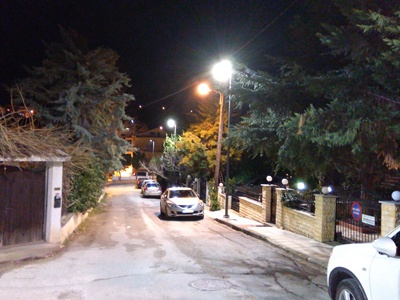

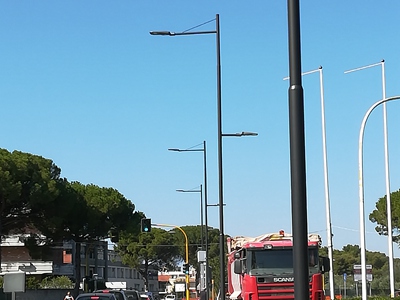

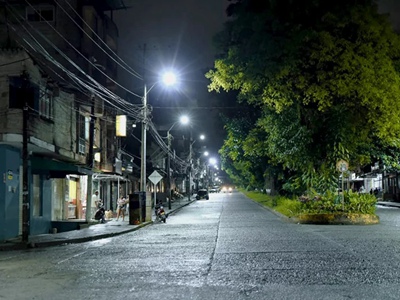

LED Street Light Project In ItalyLED Street Light Project In GreeceLED Street Light Project In Ecuador


Related Blogs


LED Street Light Project in Hangzhou, ChinaLED Street Light Project in Hangzhou, ChinaLED Street Light Project in Hangzhou, China

Compare The Advantages And

Disadvantages Of LED Street Lights

The Reason For The Rapid Development

Of LED Street Light

Principle And Characteristics Of

High Power White LED Street Light

LED Street Light Project in Hangzhou, ChinaLED Street Light Project in Hangzhou, ChinaLED Street Light Project in Hangzhou, China

Purchasing LED Street Lights

Must Know These Points

Briefly Describe The Technical Requirements

Of LED Street Lights

LED Street Light System Installation Process


People Also Ask


  1. What voltage are LED street lights?

    The most frequent operating voltage for streetlights was 120 volts (62 percent), followed by 240 volts (28 percent ). The majority of entities that own streetlights (82 percent) employ individual photocells to operate the streetlight's on/off function.


  2. What are the benefits of LED solutions?

    · Significant energy savings - more than 60% as compared to typical street lighting

    · Good color rendering, which makes colors appear more natural.

    · Long service life - up to 100,000 hours, resulting in lower maintenance costs.

    · White light that is uniform and of good quality. LED lighting helps to make spaces safer by improving facial recognition for security and CCTV cameras.

    · When light is not required, LEDs can be muted, resulting in extra energy savings. LEDs can also be networked and controlled remotely by connecting them to sensors and controls.


  3. How can optics and controls help mitigate any negative impacts of public light?

    Controls for ZGSM lighting solutions, such as dusk-to-dawn sensors, can automatically dim or turn off the luminaires depending on the time of day, lowering both energy usage and any adverse environmental effects. Our solutions also include shields to reduce sidelight and uplight as well as, most crucially, "optics" to lessen glare regardless of how much blue light or what color temperature (e.g., 3,000K vs. 4,000K) they produce.
