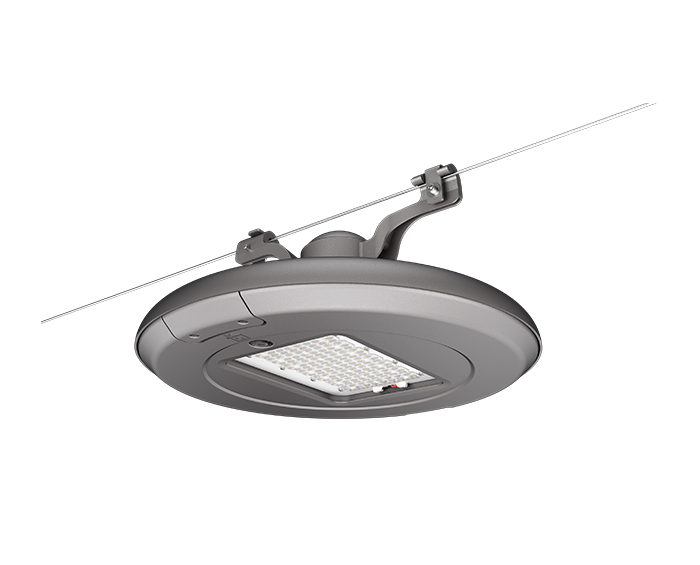

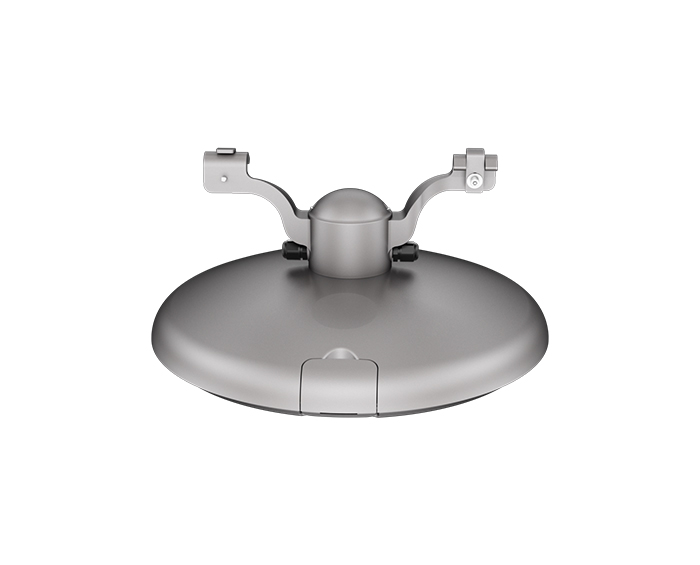

European style 90W Round LED Street Light With Suspended Mounted

Round LED Street Light adopts hanging installation, Suspended LED street light, also known as a hanging or overhanging street lamp, is very common in Europe. The advantage of this installation method is that in cases where it is not convenient to use the light pole, you can choose a Suspended street light.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 27W~120W

2. Special circuit design, single LED’s damage won't affect others' normal work

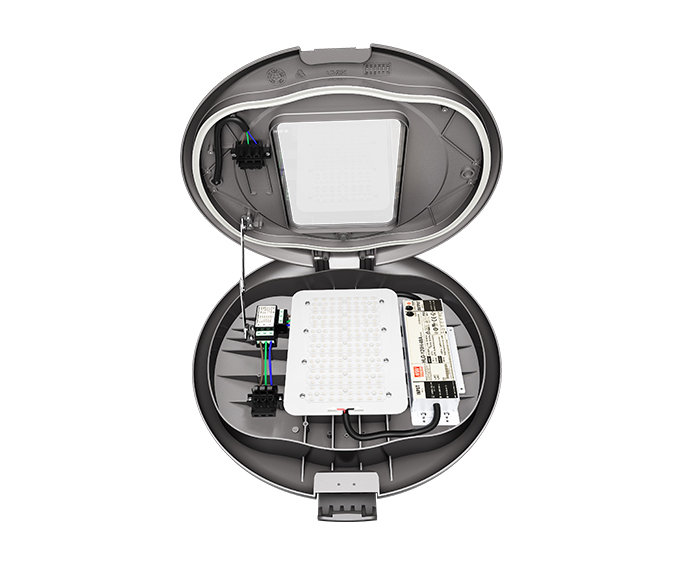

3. Tool-less open for easy installation, replacement and maintenance.

4. Power-off protection makes the power automatically off when fixture is opened

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Breather ensures air balance inside and outside of the lamp

7. High Lumen output up to 150lm/w with high quality LED chips

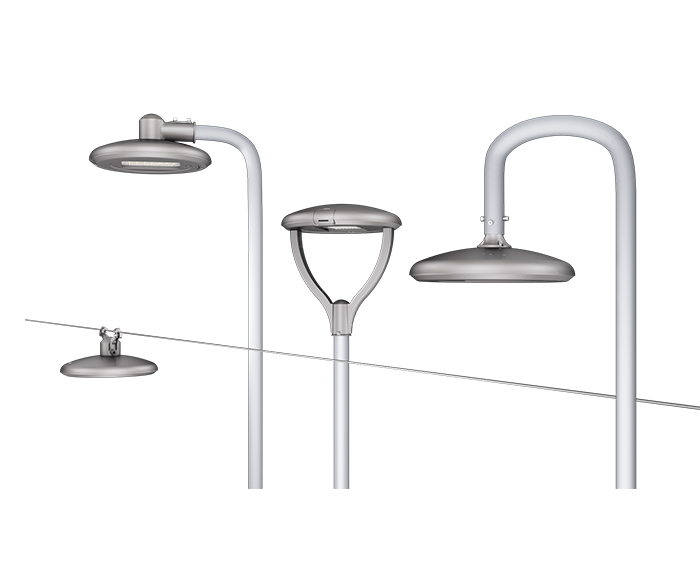

8. Post Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.

9. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell

10. Designed to last at least 100,000 hours at L70

11. Multiple lighting distributions are available

12. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

13. 7 years limited warranty available.


Specifications

ModelZGSM-LD90LMD
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics
Normal Wattage90W
LED Chip Quantity3030: 168pcs 5050: 84pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-150 lm /w
Lamp Rated Lumen output11700-13500 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium; TypeV, Short
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; Tempered Glass
Rope Diameter6-12mm
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC, CB ROHS, LM80, LM79, IP66 IK08, ISTMT
Dimming Options1-10V or DALI or PWM or Timer

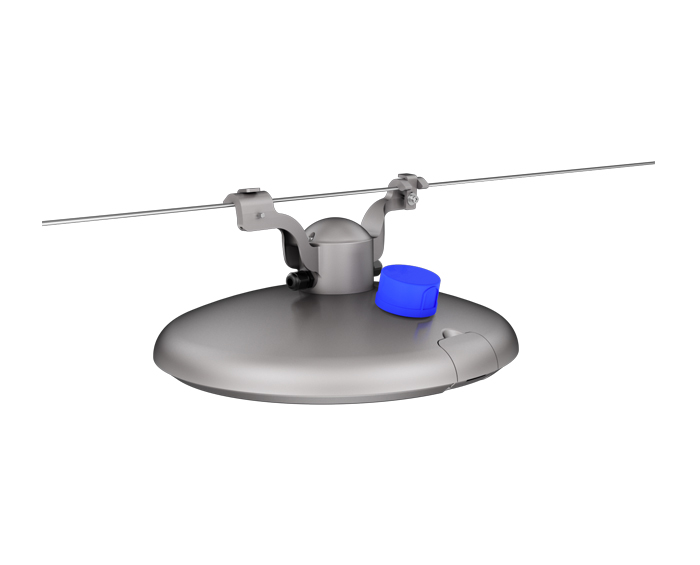

Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey
Warranty7 years


FAQ

What is a hanging street light and its Features?

Round LED Street Light adopts hanging installation, Suspended LED street light, also known as a hanging or overhanging street lamp, is designed for Europe and mounted on wire rope, very common in Europe. The advantage of this installation method is that it is not affected by the road environment, when there are obstructions on both sides of the road or it is inconvenient to install light poles, you can choose to hang street lights, using wire ropes or cables, so that the lamps are suspended above the road to illuminate the road.


How to choose a street lamp?

In street lighting, the deciding factors you should consider are the amount of traffic and the type of traffic. These two factors determine whether street lights are needed, and if so, what kind of lights are needed. In public areas, the number and type of traffic further determine which lighting level a street belongs to.
