Suspended Mounted LED Street Light

Home  /  Products / LED Street Light / Suspended Mounted LED Street Light
  • European style 120w Suspended Mounted LED Street Light
  • European style 120w Suspended Mounted LED Street Light
  • European style 120w Suspended Mounted LED Street Light
  • European style 120w Suspended Mounted LED Street Light
  • European style 120w Suspended Mounted LED Street Light

European style 120w Suspended Mounted LED Street Light

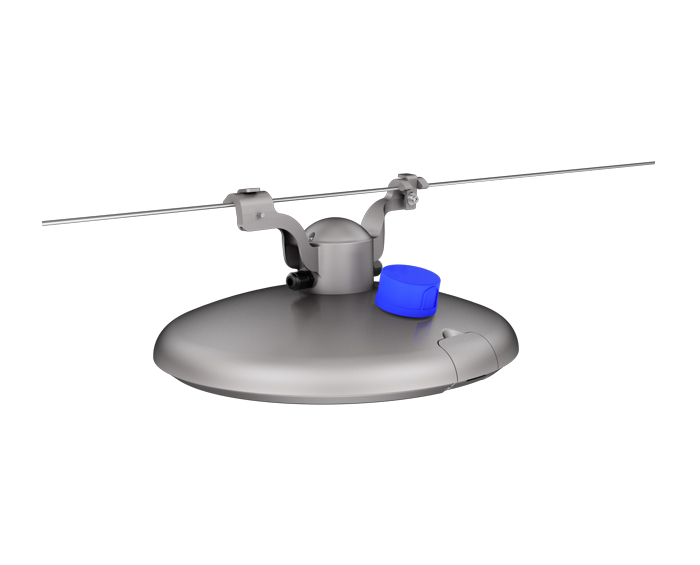

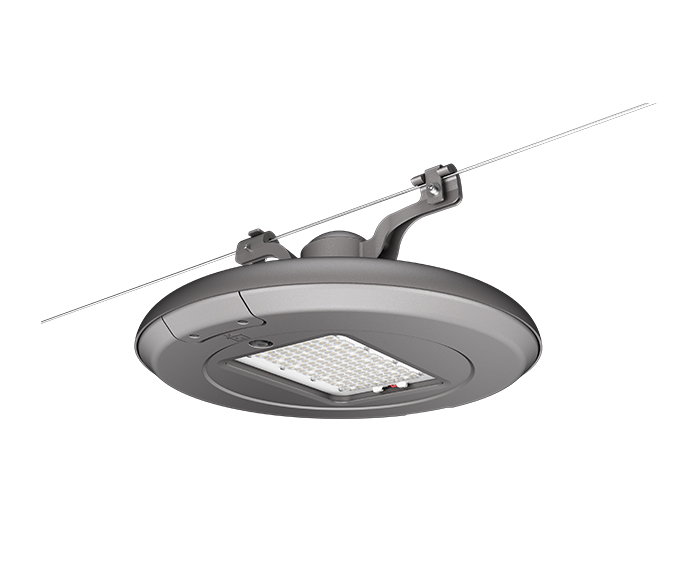

120W European style LED street light produced by ZGSM is suitable for the European market. Generally, this kind of hanging LED street light is installed on the wire rope in the middle of the European road. The product has a long service life, waterproof and dustproof designed smooth body, good performance, and does not require frequent maintenance.


INQUIRY NOW

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 27W~120W

2. Special circuit design, single LED’s damage won't affect others' normal work

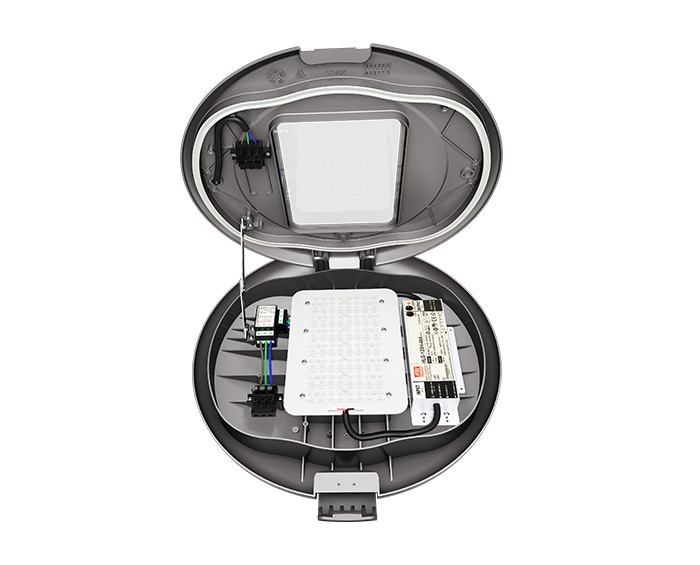

3. Tool-less open for easy installation, replacement, and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Breather ensures air balance inside and outside of the lamp

7. High Lumen output up to 150lm/w with high quality LED chips

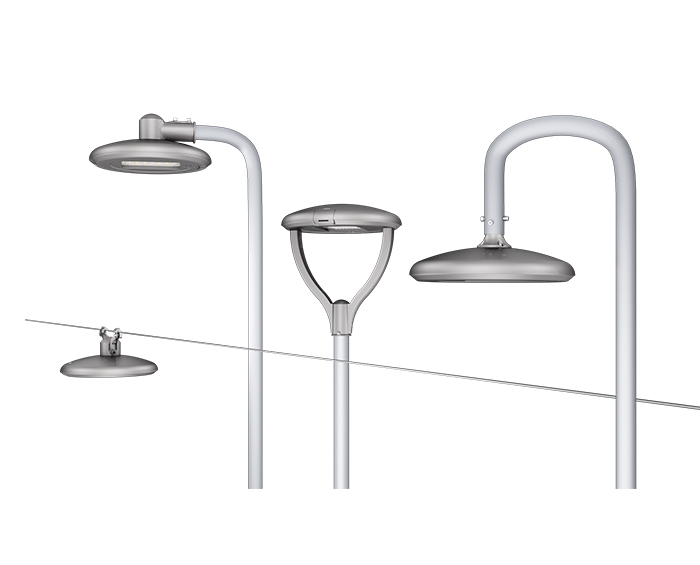

8. Post Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.

9. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell

10. Designed to last at least 100,000 hours at L70

11. Multiple lighting distributions are available

12. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

13. 7 years limited warranty available.

Specifications

Specifications
ModelZGSM-LD120LMD
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics
Normal Wattage120W
LED Chip Quantity3030: 168pcs 5050: 84pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-145 lm /w
Lamp Rated Lumen output15,000-17,400 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3,000K or 4,000K or 5,000K or 5,700K
Photometric TypeType I Medium; Type II Medium; Type III Medium; TypeV, Short
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; Tempered Glass
Rope Diameter6-12mm
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey
Warranty7 years

FAQ

1. How much does a street light cost to run in Europe?

Take the UK as an example, lights on residential roads contain a 35 watt LED lamp, while those on main roads contain a 150 watt LED lamp. In simple terms, the electricity bill consumed by a street light is between £25 and £65 a year.


2. What Is A Round LED Street Light?

The Round LED Street Lights is one kind of LED street lights with a round body design, like ZGSM L series and Halo series. It not only have the same advantages of high efficacy, long lifespan, energy saving as other LED street lights. The elegant housing design also makes it could be applied to city street lighting, garden lighting, community Lighting, residential area lighting and so on.


3. What is a motion sensor?

A motion sensor is a device that recognizes physical movement on a product or in the surrounding area. Real-time physical and/or kinetic movements can be detected and recorded by it.

Another name for a motion sensor is a motion detector.

The motion sensors in LED lighting area are usually used for detecting passing persons or cars. When there are no persons or cars, the LED lights could work under energy-saving mode, for example 30% power. If there are persons or cars coming and detected by motion sensor, the motion sensor would turn the LED lights to 100% power automatically.
