LED Garden Light Project In Malaysia

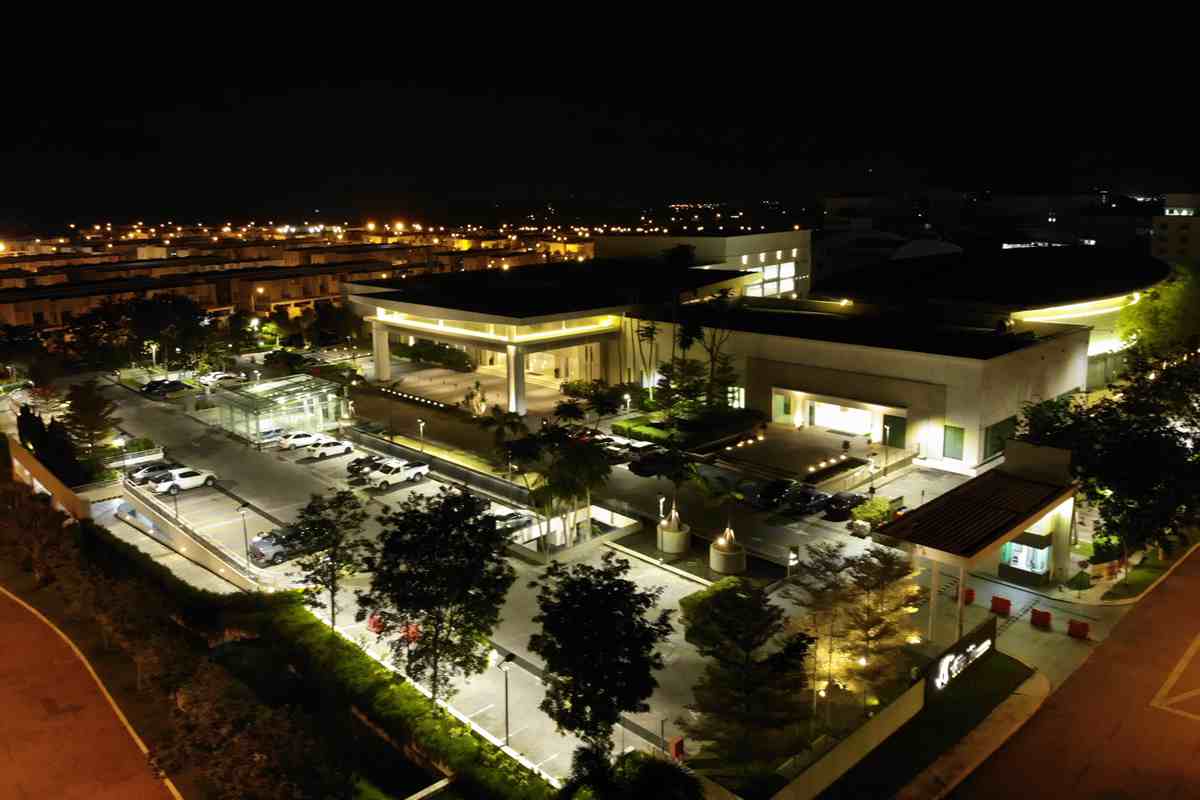

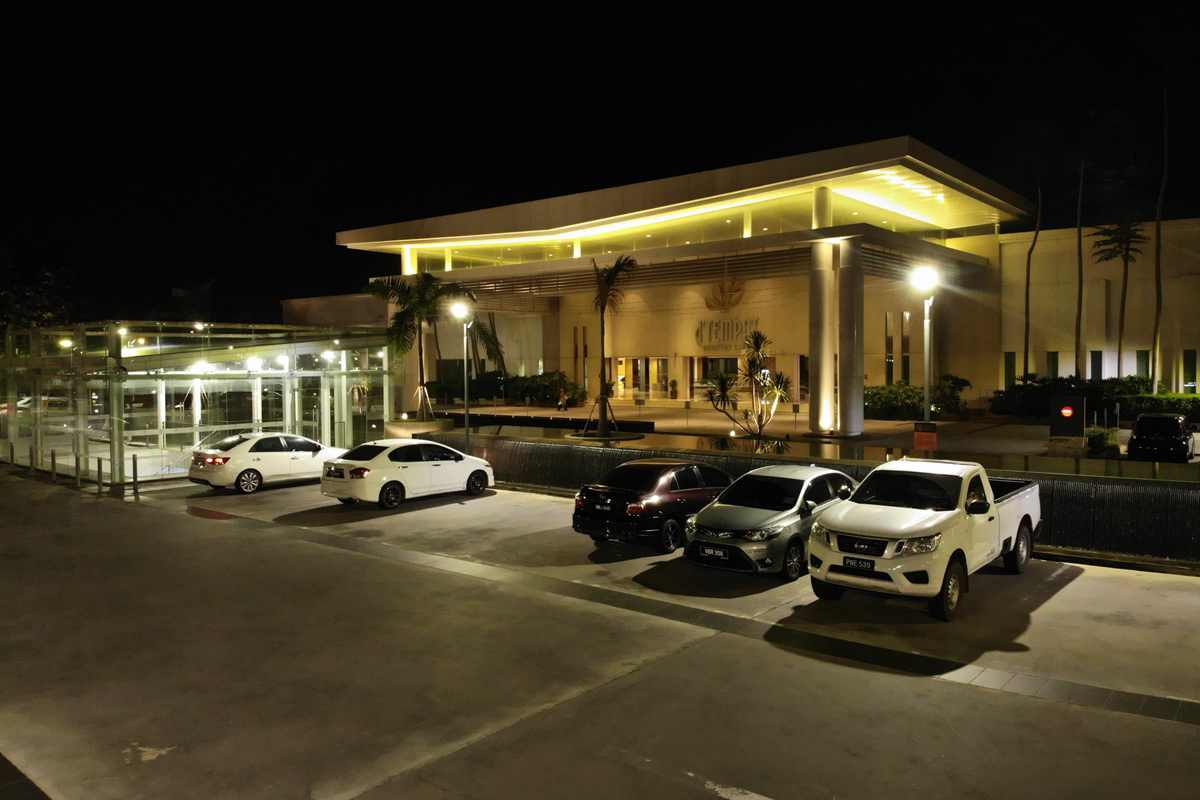

The D'Tempat Club House lighting project in Malaysia was finished in 2020. It adopted ZGSM 56W L series garden LED lights with a tool-less maintenance design. It's very convenient to install and maintain this model. In this project, our L series garden street lights illuminate both the garden and parking lot of club house. The appearance design of our L series street LED lights is in line with the style of this club. Our clients are very satisfied with both the performance and the appearance of our L Series.


Products Details


Product: 56W L Series Garden LED Light

Model No.: ZGSM-LD56LMA

LED: Lumileds 3030

Driver: MeanWell Driver

CCT: 5700K

Optics: Type III Medium

Installation Height: 3.5m

QTY: 185 Units


Video





Project Photos


LED Garden Light Project In MalaysiaLED Garden Light Project In Malaysia


Specification


ModelZGSM-LD56LMX( X= A,B,C,D)
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics
Normal Wattage56W
LED Chip Quantity3030: 120pcs 5050: 60pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-150 lm /w
Lamp Rated Lumen output7280-8400 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric TypeType I Medium;Type II Medium; Type III Medium; TypeV, Short
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; Tempered Glass
Pole Fitter Diameter60mm
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC, CB ROHS, LM80, LM79, IP66 IK08, ISTMT
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey
Warranty7 years


Download


Installation Manual_StreetLight_L.pdf

Data Sheet_L_StreetLight.pdf


Related Products


LED Garden Light Project In MalaysiaLED Garden Light Project In MalaysiaLED Garden Light Project In Malaysia

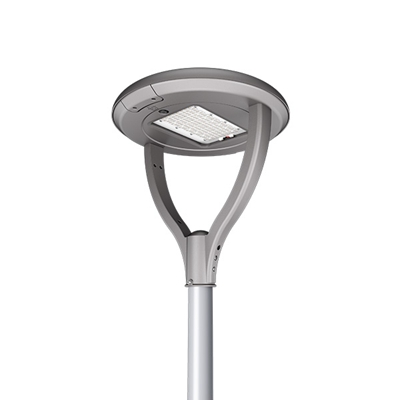

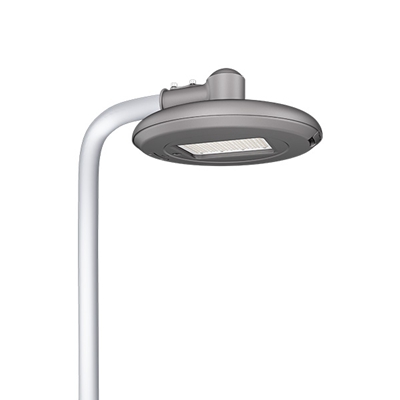

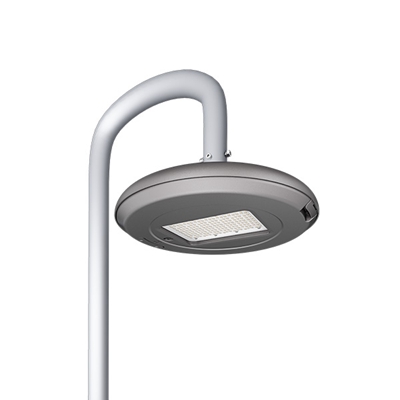

56W Tool-less Outdoor Post Top LightsENEC Certified 37W Tool-less LED Garden LightENEC Certified 90W LED Pathway Lights
LED Garden Light Project In MalaysiaLED Garden Light Project In MalaysiaLED Garden Light Project In Malaysia

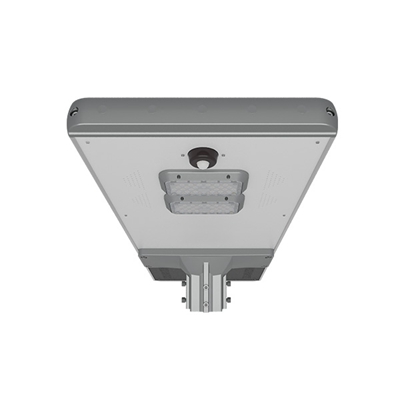

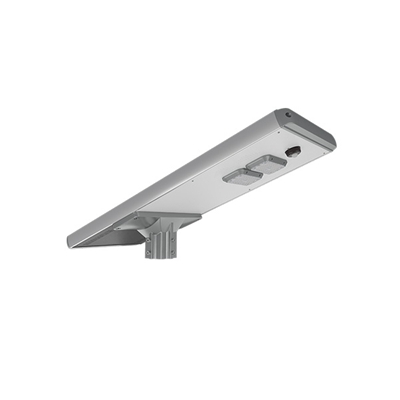

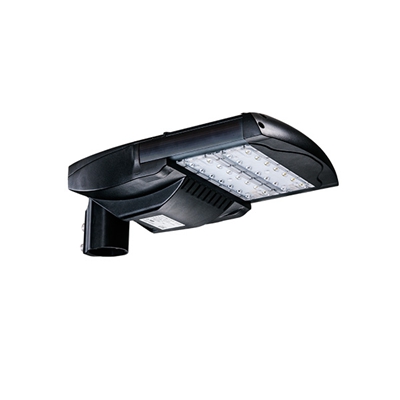

Lithium Battery 50W Solar Powered Garden LightsIntelligent Induction 60w Solar LED Garden Light65W UL Approved Car Parking LED Light


Related Projects


LED Garden Light Project In MalaysiaLED Garden Light Project In MalaysiaLED Garden Light Project In Malaysia

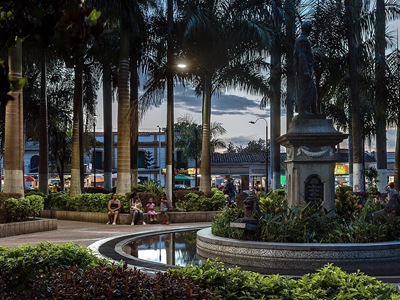

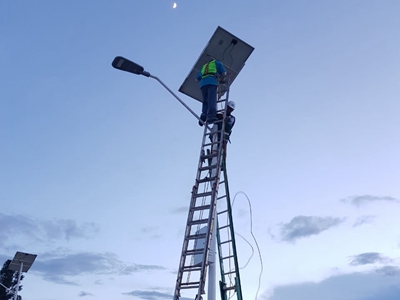

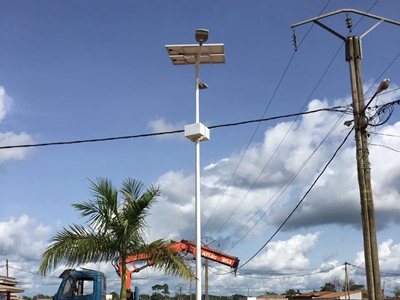

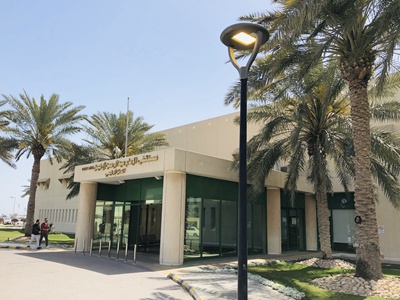

LED Garden Light Project In ColombiaLED Garden Light Project In Saudi ArabiaSolar Street Lighting Project In Cameroon
LED Garden Light Project In MalaysiaLED Garden Light Project In MalaysiaLED Garden Light Project In Malaysia

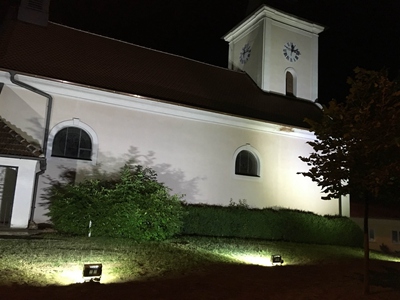

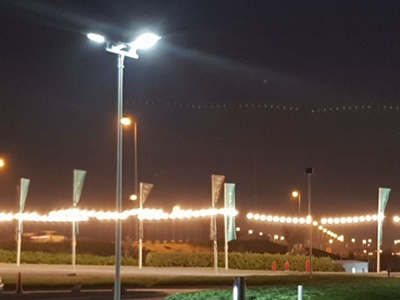

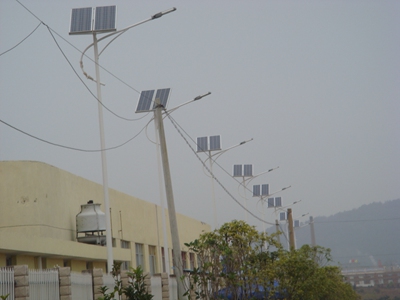

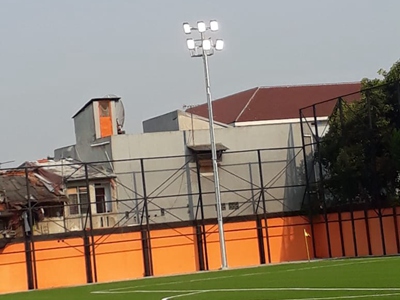

Solar Street Lighting Project In ChinaLED Flood Light Project in IndonesiaOutdoor Flood Light Project In Czech


Related Blogs


LED Garden Light Project In MalaysiaLED Garden Light Project In MalaysiaLED Garden Light Project In Malaysia

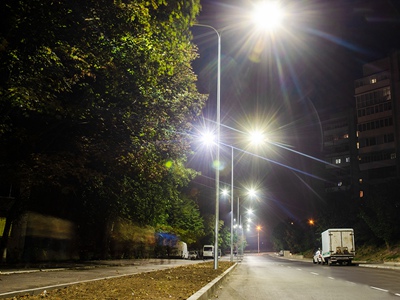

LED Street Light PK Ordinary Street LightHow To Choose Led Street Lights Correctly?Correct Installation And Use Of Led Street Lights
LED Garden Light Project In MalaysiaLED Garden Light Project In MalaysiaLED Garden Light Project In Malaysia

Talk About the Price of Solar Street Lights

(Part 1)

Talk About the Price of Solar Street Lights

(Part 2)

Talk About the Price of Solar Street Lights

(Part 3)


People Also Ask


  1. How long do LED street lights last?

    About 15 to 20 years.

    LEDs use up to 50% less energy than standard sodium bulbs and can last for 15 to 20 years. There are also some surprising advantages. Better street lighting may make it easier to use public transit by reducing the feeling of danger and increasing visibility on the roads.


  2. What is SPD?

    SPD in LED lighting area usually means Surge Proection Device. It's a device or appliance that protects electrical equipment against voltage spikes in alternating current (AC) circuits. A voltage spike is a brief transient occurrence that can reach over 1,000 volts and lasts 1 to 30 microseconds. Lightning can generate a spike in voltage of over 100,000 volts, which can burn through wiring insulation and cause fires, but even small spikes can harm a wide range of electrical items, including computers, battery chargers, modems, and televisions. The surge device will typically activate at a predetermined voltage, usually 3 to 4 times the mains voltage, and divert the current to earth. The surge may be absorbed by some gadgets and released as heat.


  3. What is a motion sensor?

    A motion sensor is a device that recognizes physical movement on a product or in the surrounding area. Real-time physical and/or kinetic movements can be detected and recorded by it.

    Another name for a motion sensor is a motion detector.

    The motion sensors in LED lighting area are usually used for detecting passing persons or cars. When there are no persons or cars, the LED lights could work under energy-saving mode, for example 30% power. If there are persons or cars coming and detected by motion sensor, the motion sensor would turn the LED lights to 100% power automatically.
