Solar Street Light Project in Cameroon

Solar LED Street Light project in Cameroon, which is using ZGSM designed and manufactured H Series LED Street Lights, high-performance DC drivers, intelligent MPPT controllers, and high efficacy polycrystalline solar panels. Nice-designed poles with battery boxes could protect the batteries well. The street lighting conditions of this area have been greatly improved since this project finished installation in 2016. Our customers are satisfied with both the performance and solar LED street light cost.


Product Details


1x 40W LED Street Light, Model: ZGSM-LD40H4, Lumileds chips, 5700K,2M DC12V

1x 150w Solar polycrystalline panels, DC18V

1x  120AH No maintenance lead acid battery DC12V

1x   10A/DC12V solar controller

1x    8m pole with battery box

Total 160 sets.


Video





Project Photos


Solar Street Light in CameroonSolar Street Light in Cameroon


Specifications


ModelZGSM-LD40H4
LED Number64units
Nominal Power40W
Battery Spec.120AH /12V Lead-acid Maintenance-free Battery
Solar Panel Spec.150W /18V Polycrystalline Solar Panel
LED BrandLumileds 3030 2D
Luminous Flux5600lm
Light TypeType 2M
CCT3000K.4000K.5000K.5700K
Worktimemore than 25 hours
Mounting Height8m
Space Between Light18~35m
Pole Diameter FixtureRound pole: Φ50~60mm
RatingIP66, IK10
CertificationCE, ROHS,LM-80
Warranty3 Years


Download


Installation Manual_StreetLight_H.pdf

Data Sheet_StreetLight_H.pdf



Related Products



Solar Street Light in Cameroon
Solar Street Light in CameroonSolar Street Light in Cameroon

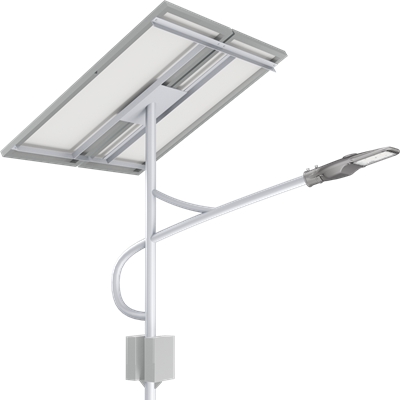

High Quality 30-120W LED Solar Street LightCheap Price 28-57W Solar Street Light SupplierLithium battery 15w solar street light
Solar Street Light in CameroonSolar Street Light in CameroonSolar Street Light in Cameroon

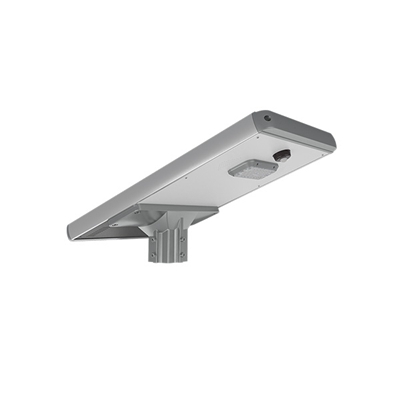

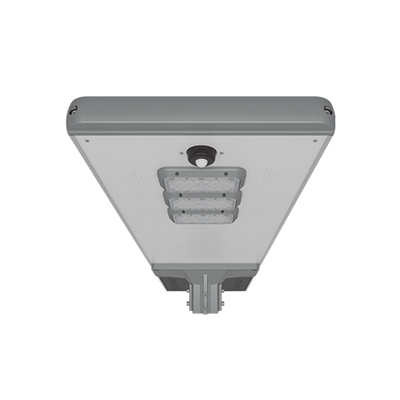

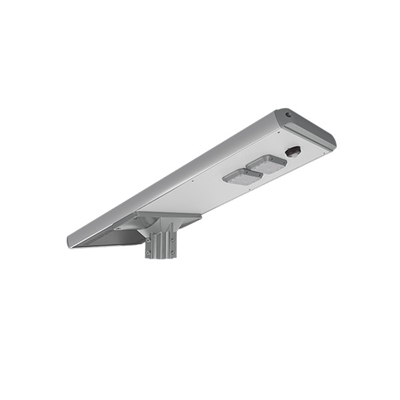

Intelligent induction 20w Solar Street LightIntelligent Induction 40W LED Solar Street Light45AH Outdoor IP65 60W LED Solar Street Light


Related Projects


Solar Street Light in CameroonSolar Street Light in CameroonSolar Street Light in Cameroon

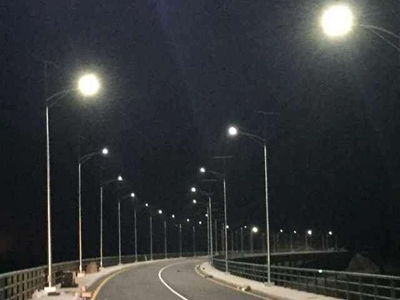

Solar LED Street Light In MexicoSolar LED Street Light In ChinaSolar LED Street Light In Ecuador
Solar Street Light in CameroonSolar Street Light in CameroonSolar Street Light in Cameroon

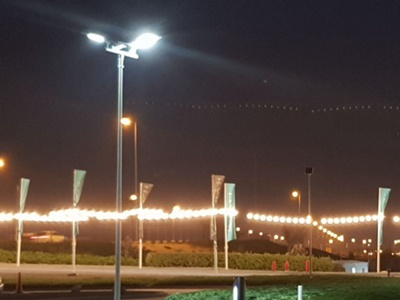

Solar LED Street Light In FranceSolar LED Street Light In UAESolar LED Street Light In Thailand


Related Blogs


Solar Street Light Project in CameroonSolar Street Light Project in CameroonSolar Street Light Project in Cameroon
Green, Energy Saving-Solar Led Street LightWhat Should Notice When Wiring Solar Street Light?How to Choose a Battery for Your Solar Street Light?
Solar Street Light Project in CameroonSolar Street Light Project in CameroonSolar Street Light Project in Cameroon
What Are the Accessories for Solar Street Lights?Solar Street Light Installation Method
Talk about the price of solar street lights (Part 2)


People Alao Ask


  1. How many types does solar LED street light have?

    - Solar LED Street Lighting System (Off-Grid)

    - Solar Street LED Lighting System (Grid-Tie)

    - Hybrid Solar Street Lighting System with Solar and Wind

    - Integrated Solar LED Street Light


  2. How to install Solar LED Street Lights?

    Install the Solar Bracket at the top of the lamp post and secure it. Place the Solar Panel on the Solar Bracket and bolt it in place. Solar panels must be treated with caution. Follow the electrical circuit schematics for connecting the Solar Panels to the battery, controller, and street light.


  3. How do solar street lights work?

    Photovoltaic technology converts sunlight into DC electricity, which is used in solar street lighting systems. The generated electricity can either be used immediately throughout the day or saved in the batteries for later use at night.
