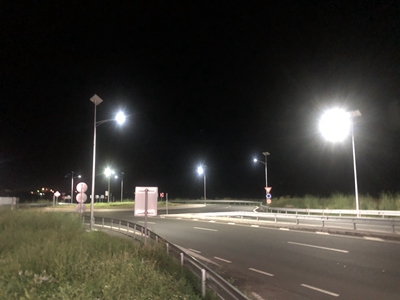

Solar street lighting project for a park in Mexico, completed in 2015. ZGSM is a manufacturer factory of solar LED street lamps from China. We recommended 35W H Series solar powered street lights with 24V DC driver to our clients. High efficacy Lumileds chips make the efficacy of lamps up to 165lm/W. Suspended mounting designed battery boxes, which contain MPPT charge controllers and Lithium batteries, are easy to install. What's more, the IP67 design makes it could also protect the controllers and batteries from both the rain and theft. It could also help to save both cost and space by mounting two pcs LED street lamps on each pole.
Product: 35W LED Street Light
Model No.: ZGSM-LD35H
LED: Lumileds Luxeon Tx
Optics: Type 2M
QTY: 65 Units
|Warranty||3 YEARS||3 YEARS||3 YEARS||3 YEARS||3 YEARS|
|Panels||Mono 100w x1||Mono 120w x1||Mono 100wx2||Mono 120wx2||Mono 150wx2|
|Battery||150AH x 1||180AH x 1||150AH x 2||180AH x 2||200AH x 2|
|Color Rendering Index||Ra>70|
|Color Temperature||3000K or 4000K or 5000K or 5700K|
|Photometric Type||Type I Medium; Type II Medium; Type III Medium, TypeV Short|
|Optimal Operating Temperature||25°|
|Working Environment||Between-40°C~+50°C, 10%~90%RH|
|Total Harmonic Distortion||< 10%|
|Lumen Maintenance||> 100000 hours -L70, @25 ºC (77 ºF)|
|Wind Index||Force 12|
|Body||Die-cast Aluminum Housing|
|Pole Fitter Diameter||60mm ( 50mm optional)|
|Control||Daylight sensor, Timer|
|Certification||CE, ROHS, LM80|

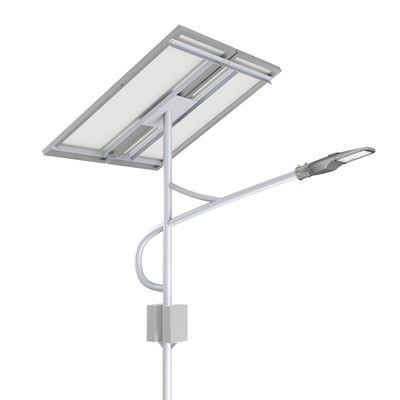

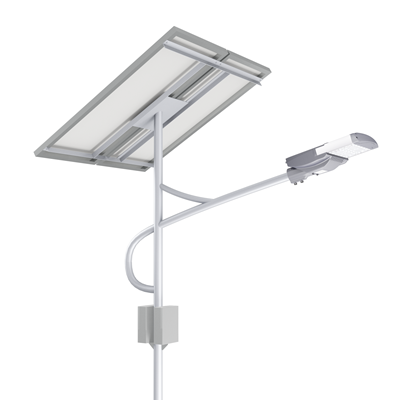

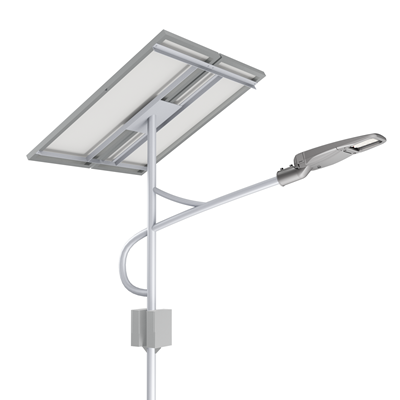

|High Quality 30-120W LED Solar Street Lights||IP66 25-120W Solar Powered Street Light||Cheap 28-57W China Solar Street Light Supplier|

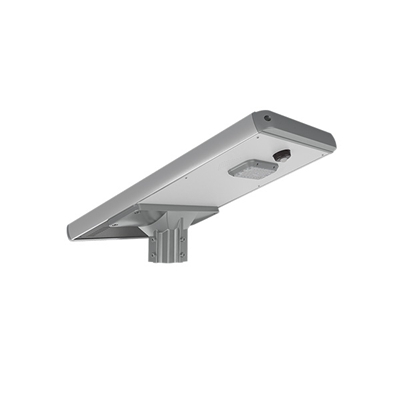

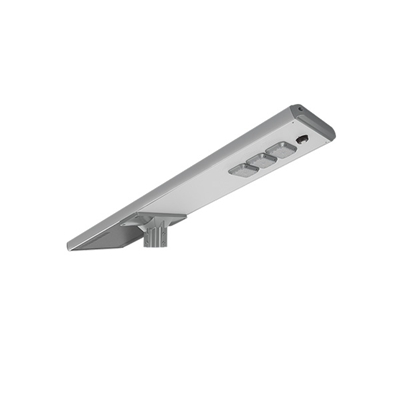

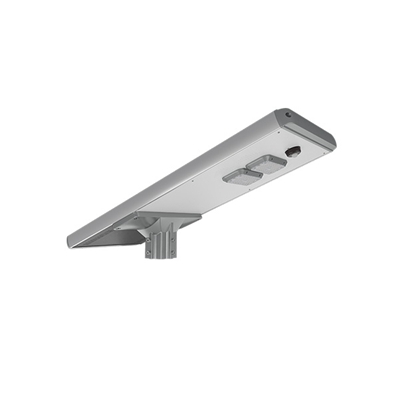

|Lithium battery 20w All in One Solar Street Light||Intelligent Induction 40W LED Solar Street Light||45AH IP65 50w Outdoor Solar Street Light|

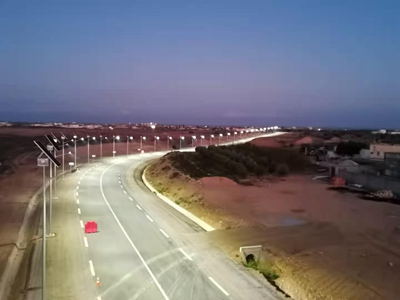

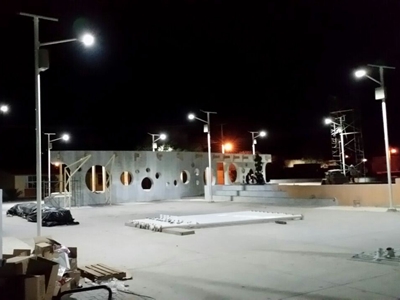

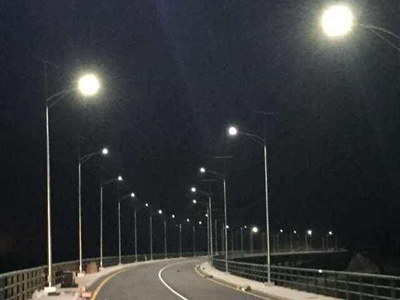

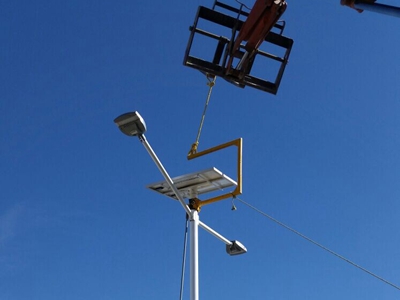

|Solar Street Light Project in Cameroon||Solar Street Light Project in France||Solar Street Light Project in Ecuador|
|Solar Street Light Project in UAE||Solar Street Light Project in Thailand||Solar Street Light Project in Serbia|
|Advantages of Solar Street Lights|
Solar powered street lights are made up of solar panels, controllers, batteries, and light sources, among other things. When the solar panel is exposed to sunshine, it absorbs the light and converts it to electricity. The rechargeable battery will store the electricity.
Photovoltaic technology converts sunlight into DC electricity, which is used in solar street lighting systems. The generated electricity can either be used immediately throughout the day or saved in the batteries for later use at night.
Yes, even if there is no sun, our systems are designed to supply at least 5 nights of power. We base our methods on the Winter Solstice, when the day is shortest and the night is longest. We do this by evaluating your local solar/weather conditions to ensure that our systems are turned on at night, when it is most needed.
