Solar Street Light

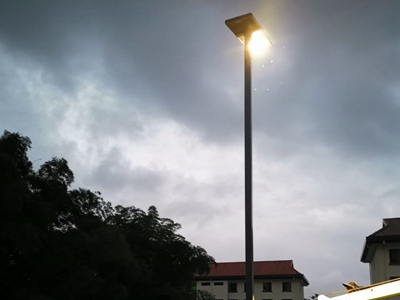

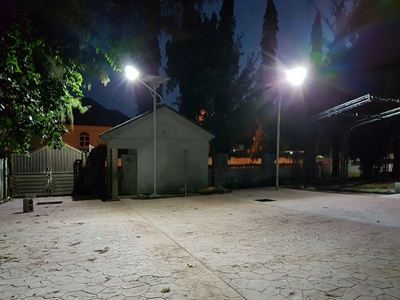

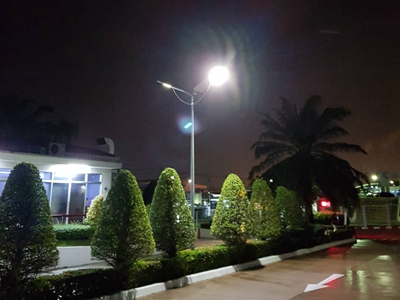

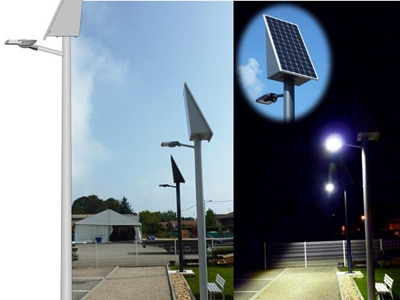

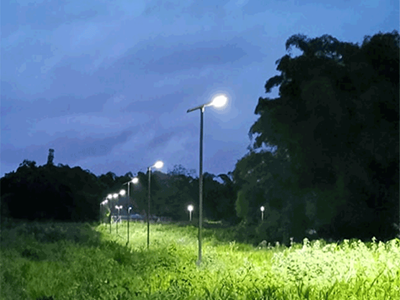

The outdoor lighting project of hotel public areas in Serbia has finished installation in 2017. The lighting solution of this project we provided is 25 units of 40W PV2 series Integrated Solar Street Light with 50W monocrystalline solar panels and 222WH lithium batteries. It only takes less than 4.5 hours to fully charge these models. Under energy-saving mode, these PV2 series all in one solar LED street lights could work for more than 14.5hours. Equipped with PIR sensors, these integrated solar powered street lamps could turn the power to 100% when sensing persons passing and turn back to energy-save mode (30%) if there are no persons or cars sensed. This project is no need to maintain and no failure feedback by now.

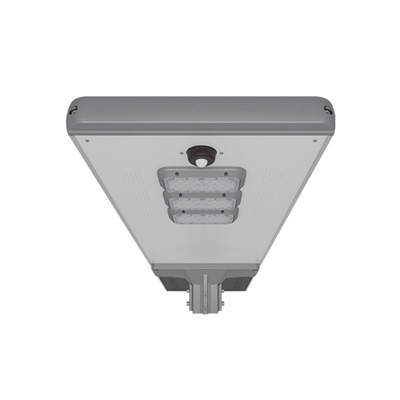

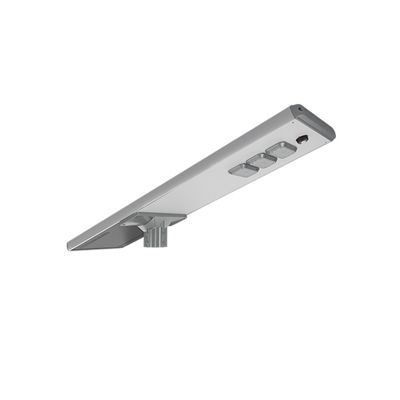

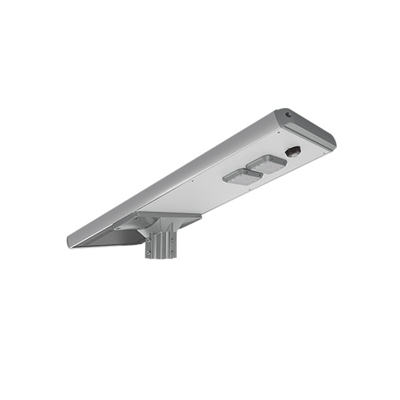

Product: 40W All In One Solar LED Street Light
Model No.: ZGSM-PVLD504020
LED: Lumileds
Solar Panel: Monocrystal 50W /18V
Battery: 20AH /11.1V Lithium Battery
Sensor: Human infrared induction
CCT: 3000K
Optics: Type 1S
Installation Height: 6m
QTY: 25 Units
| Model | ZGSM-PV504020 | ||
| LED Number | 60units | ||
| Nominal Power | 40W | ||
| Battery Spec. | 20AH/11.1V | ||
| Solar Panel Spec. | Monocrystal 50W /18V | ||
| LED Brand | Lumileds 3030 2D | ||
| Luminous Flux | 5200lm | ||
| Light type | 1S | ||
| CCT | 3000K.4000K.5000K.5700K | ||
| Charge time | <4.5 Hours (Low battery voltage) | ||
| Worktime at Energy -saving Model(30%) | more than 14.5 hours | ||
| Discharge Temperature | -20℃~+60℃ | ||
| Charge temperature | <60℃ | ||
| Light control voltage | 5-11V | ||
| mounting height | 5-6m | ||
| space between light | 15~21m | ||
| Pole Diamerter Fixture | Round pole: Φ60~85mm; Square pole : 60 x60 ~77 x77mm | ||
| Rating | IP65 IK10 | ||
| Induction Type | Human infrared induction or microwave induction function | ||
| Certification | CE,ROHS,LM80 | ||
| warranty | 3 years | ||
Installation Manual_AIOSolarStreetLight_PV3.pdf
Data Sheet_AIOSolarStreetLight_PV3.pdf
 |  |  |
| Advantages of Solar Street Lights | Eight Factors for the Popularity of Solar Street Lights | Use Environment of Different Solar Street Lights |
 |  |  |
The term "integrated solar street light" refers to a new type of solar led street light that combines solar panels, batteries, controllers, and LED lights into a single lamp body.
Yes, even on cloudy days, our integrated solar street lights could charge. The solar panels continue to charge the batteries during daylight, even when gloomy, and the system is designed to run for at least two days without sun on a full charge.
If your solar lights continue to blink or flash, there's a good probability they're not getting enough sunshine to generate enough charge. It's also possible that the batteries are outdated and unable to maintain a sufficient charge, or that there is dirt on the panels preventing sunlight from reaching the panels.
