All in one Solar Street Light Project in Thailand

Parking lot solar street light project in Thailand, completed in 2017, selected PV series 40W integrated solar street light, installation height is 6M, PV series solar street light adopts all in one design, LED light, lithium battery, solar panel and controller are integrated into one unit, without wiring, directly installed on post top, very convenient. Equipped with microwave induction, the solar street lamp will change to 100% brightness if someone passes by and change to 30% brightness if no one is detected, this intelligent induction mode greatly reduces the daily power consumption, thereby reducing the configuration and saving the cost of lamps.


Product details

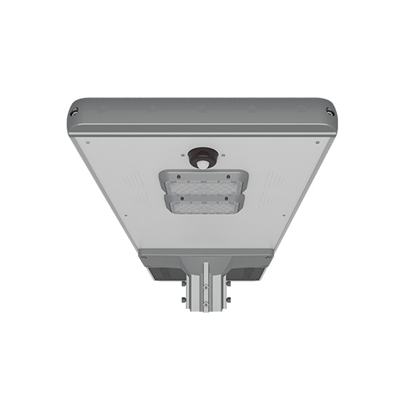

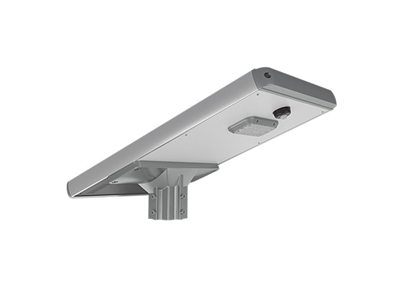

40W All in one LED solar street light, Model: ZGSM-PVLD40, 5700K,pole height=6m, 30pcs+


Video

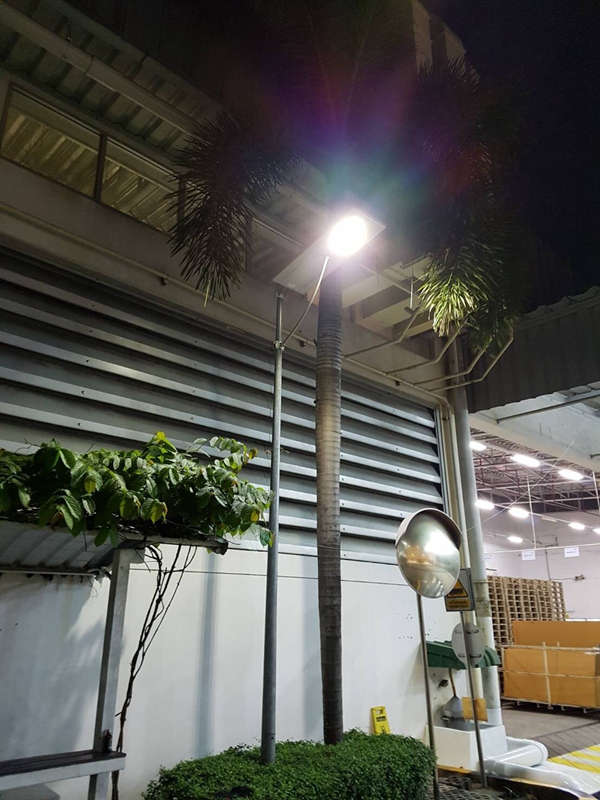

Project Photos


All in one Solar Street Light in ThailandAll in one Solar Street Light in Thailand


Specification


ModelZGSM-PV704040
LED Number60units
Nominal Power40W
Battery Spec.40AH /11.1V
Solar Panel Spec.Monocrystal 70W /18V
LED BrandPhilips Lumileds 3030 2D
Luminous Flux5200lm
Light type1S
CCT3000K.4000K.5000K.5700K
Charge Time<6.5 Hours (Low battery voltage)
Worktime at Energy
-saving Model(30%)
more than 29.5 hours
Discharge Temperature-20℃~+60℃
Charge Temperature<60℃
Light Control Voltage5-11V
Mounting Height5-6m
Space Between Lights15~21m
Pole Diameter FixtureRound pole: Φ60~85mm; Square pole : 60 x60 ~77 x77mm
RatingIP65 IK10
Induction TypeHuman infrared induction or microwave induction function
CertificationCE, ROHS, LM80
Warranty3 years


Download


Installation Manual_AIOSolarStreetLight_PV3.pdf

Data Sheet_AIOSolarStreetLight_PV3.pdf



Related Products


All in one Solar Street Light in ThailandAll in one Solar Street Light in ThailandAll in one Solar Street Light in Thailand

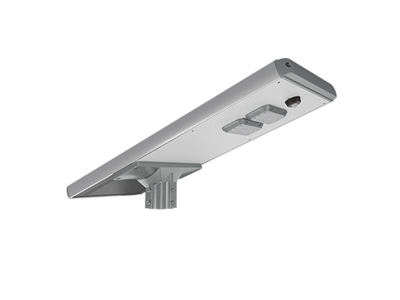

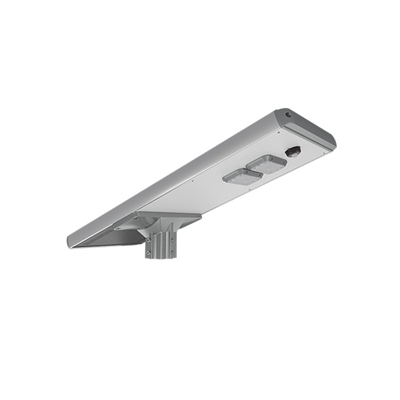

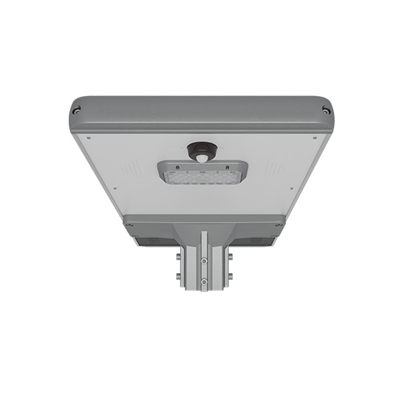

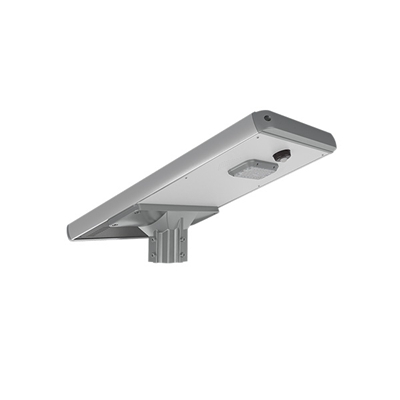

Lithium battery 20w All in One Solar Street LightLithium battery 30w All in One Solar Street LightIntelligent induction 40w led solar street light
All in one Solar Street Light in ThailandAll in one Solar Street Light in ThailandAll in one Solar Street Light in Thailand
Intelligent 50w All in One Solar Street Lighting60W All In One Solar Street Light
Outdoor IP65 60W LED Solar Street Light


Related Projects


All in one Solar Street Light in ThailandAll in one Solar Street Light in ThailandAll in one Solar Street Light in Thailand

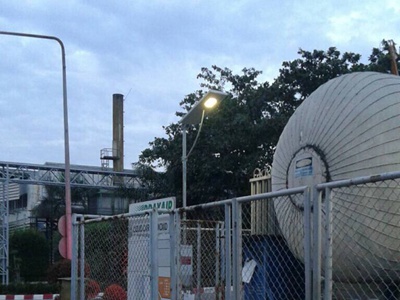

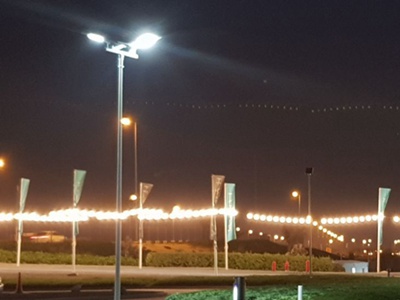

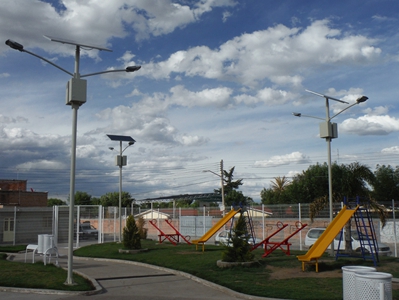

All In One Solar Light In ThailandAll In One Solar Light In UAEAll In One Solar Light In Mexico
All in one Solar Street Light in ThailandAll in one Solar Street Light in ThailandAll in one Solar Street Light in Thailand
All In One Solar Light In SerbiaAll In One Solar Light In EcuadorAll In One Solar Light In Cameroon


Related Blogs


All in one Solar Street Light in ThailandAll in one Solar Street Light in ThailandAll in one Solar Street Light in Thailand
The Use Environment of Different Solar Street LightsHow to Choose a Battery for Solar Street Light?Eight Factors for the Popularity of Solar Street Lights
All in one Solar Street Light in ThailandAll in one Solar Street Light in ThailandAll in one Solar Street Light in Thailand
Advantages of Solar Street Lights6 Things Must Know about Solar Street LightTalk About the Price of Solar Street Lights (Part 1)


People Also Ask


  1. What Is All In One Solar Street Light?

    All in one solar street light is a new version of LED solar street light. It integrates LED Street Lamps, solar panels, lithium batteries, MPPT controllers, motion sensors, and so on into one light fixture.


  2. What are the advantages of All In One Solar Street Lights compared to Solar LED Street Lighting System?

    - Better Price. The smart design makes All In One Solar Street Light have a better price, which could also save freight costs.

    - Easier to install. The integrated design makes it no need to purchase connect extra wires, and easier to be installed individually.

    - More convenient for shipping. The all-in-one design makes it easier to pack and ship.


  3. What is the energy-saving mode of All In One Solar LED Street Light?

    All In one solar led street light could be set to work under low power, for example 30% or 50% of full power, when no persons or cars. It would be turned to 100% when the motion sensor induces persons or cars pass.
