Cheap price 28-57w China Solar Street Light Supplier

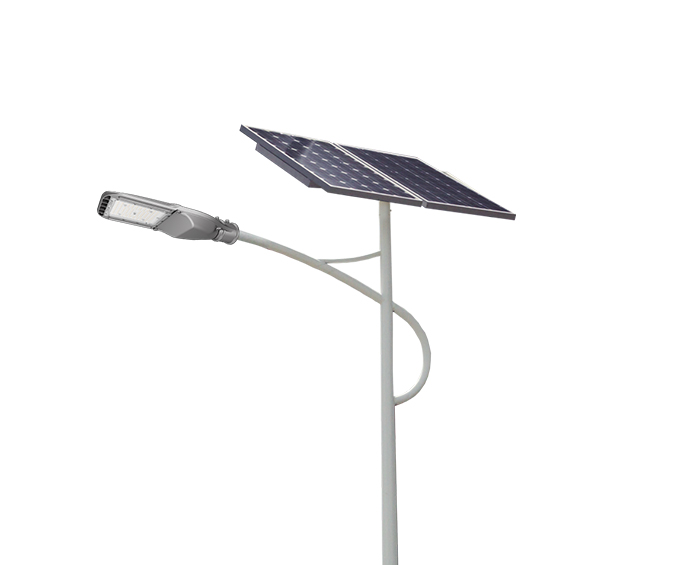

Split solar street light refers to the separate design of solar panels, batteries, and LED lights, which are suitable for different street light heads. We are a professional manufacturer of outdoor lighting, the quality and after-sales can be trusted by you.

PRODUCT DESCRIPTION

Key Features

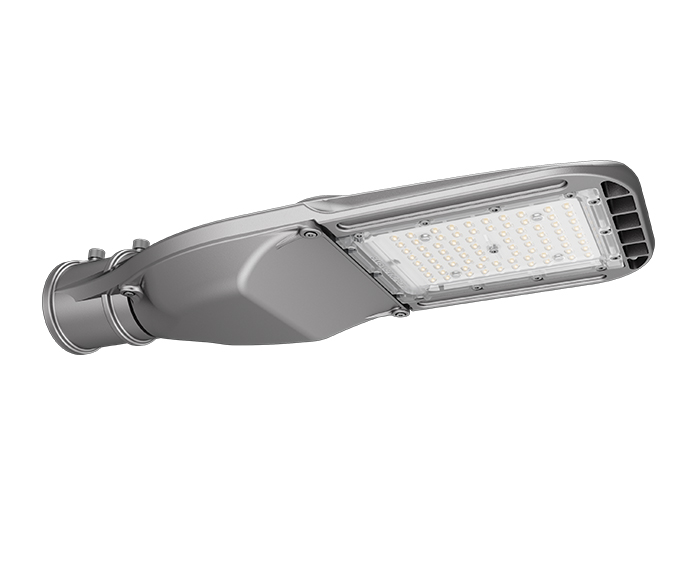

1. High-end LED Street Light

a. System efficiency up to 135lm/w. b. Smart design, low transportation costs.

c. Smooth body would greatly diminish bird droppings, d. Big power range from 28-57w.

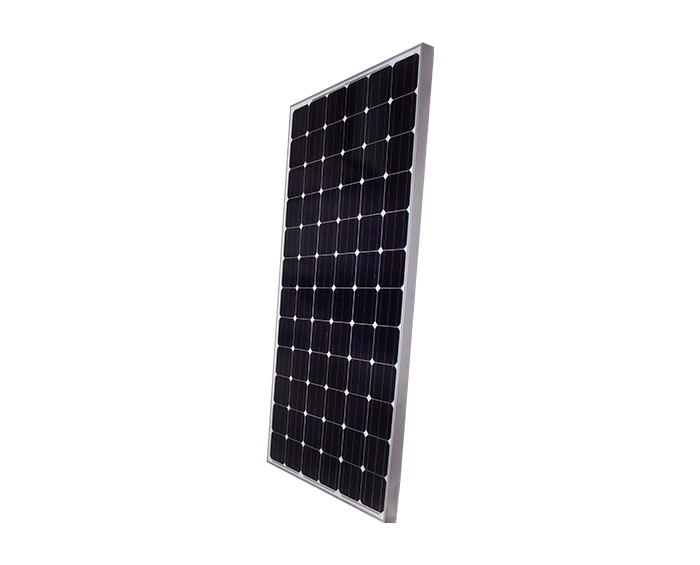

2. High Efficacy Solar Panel

a. High efficiency 20% monocrystalline cells. b. 25-year linear performance warranty.

c. Certified by TUV.  d. 0 to +5W positive tolerance.

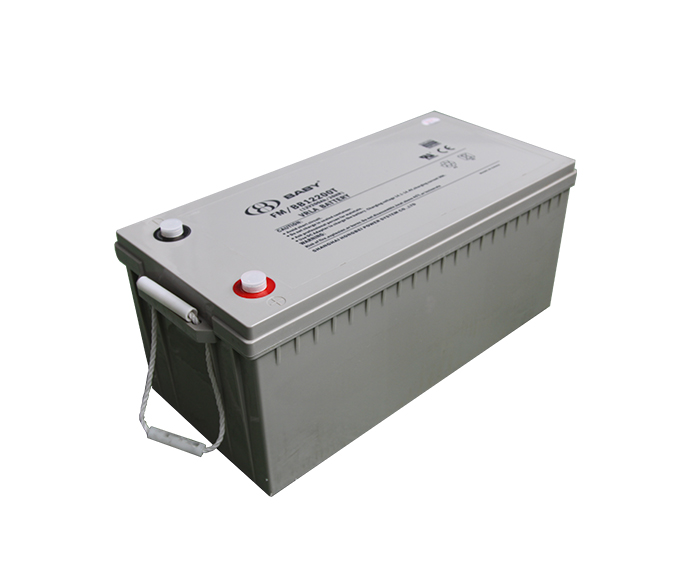

3. Stable Performance Battery

a. Long lifetime up to 8-10 years. b. Maintenance-free operation. c. Gel/Lead-acid Battery, or Lithium Battery.

d. Environmental & non-polluting. e. Safe and reliable

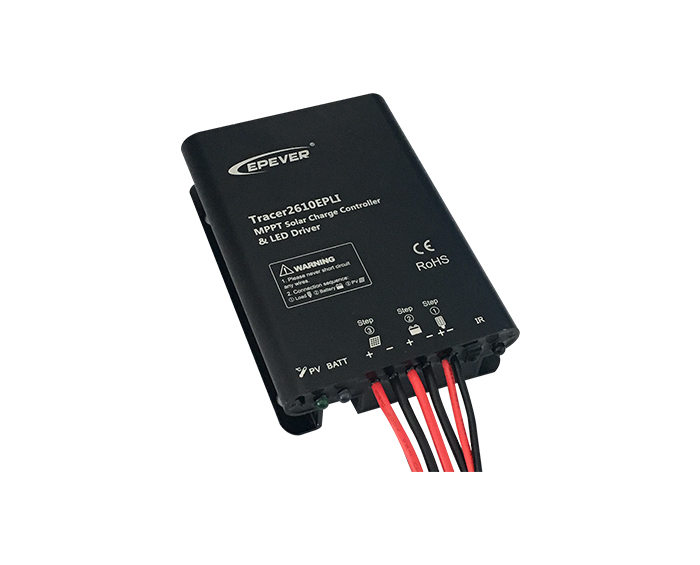

4. MPPT Controller

a. 20% energy utilization more than PWM. b. The infrared wireless communication. c. Metal case, IP68 waterproof.

d. Intelligent mode to extend battery working time. e. 3-time dimming. f. Build-in the Constant LED Driver

5. High-Quality Cable

a. Cu content exceeds 99.9999%. b. GB standard CU/PVC/PVC.

c. 2×2.5mm2 copper stranded core cable. d. The double protective layer has a long service life.

6. Light Pole

a. Galvanization standard: ASTMA123/EN ISO1461  b. Hot dip-galvanized.

c. Galvanize Q235 d. OEM design


Specifications

ModelLD28KminiLD38KminiLD57Kmini
Power28W38W57W
Lumen3780LM4940LM7410LM
Warranty3 YEARS3 YEARS3 YEARS
PanelsMono 80w x1Mono 100w x1Mono 100wx2
Battery120AH x 1150AH x 1150AH x 2
Controller10A/12v10A/12v10A/24v
Pole height3-5m4-6m6-8m
Pole distance8~12m9~14m18-25m
Color Rendering IndexRa>70
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric TypeType II Medium
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC Lens
Pole Fitter Diameter60mm ( 50mm optional)
ControlDaylight sensor, Timer
CertificationCE, ROHS, LM80



FAQ

What is Split Solar Street Light?

Split solar street lights mean that solar panels, batteries, and LED lights are designed separately. Unlike integrated street lights and all-in-two solar street lights, split solar street lights are a flexible combination with different capacities for each component.


What is an integrated solar street light?

Integrated solar street lights with built-in lithium iron phosphate batteries, solar panels, and chargers. Independently tiltable LED light sources and pole mounting brackets allow the beam to be focused on roads and solar panels facing the sun. Microwave-based motion sensors for optimizing battery life.


What does MPPT do?

MPPT stands for Maximum Power Point Tracking, a technique that regulates battery pack charging. MPPT charge controllers function similarly to transmissions in cars. When the transmission is in the wrong gear, the wheels do not get maximum power.
