LED Garden Light Project In Colombia

The LED garden and street Lighting project in Colombia was finished in 2017. It's a large project of more than 6500 units of 35W ZGSM H series modular design LED street lights. Each LED street light has equipped with a photocell, which helps to turn on automatically when it gets dark at night and turn off when it gets bright at dawn. It's available to set the suitable lux level of turning on/off according to local lighting conditions. Our H series LED street lights are certified by CE-EMC, CE-LVD, RoHS, CB, ENEC, UL, DLC, SAA, and so on, which could meet the requirements of standards in different countries. This project has greatly improved the lighting conditions of this block.


Products Details


Product: 35W LED Street Light

Model No.: ZGSM-LD35H

LED: Lumileds LUXEON TX

Driver: Inventronics programmable drivers

QTY: 6500pcs


Video

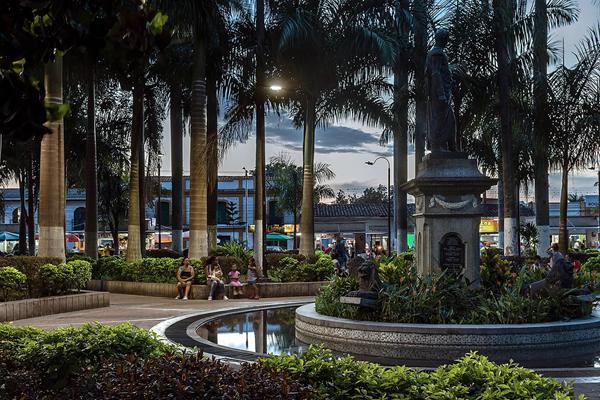

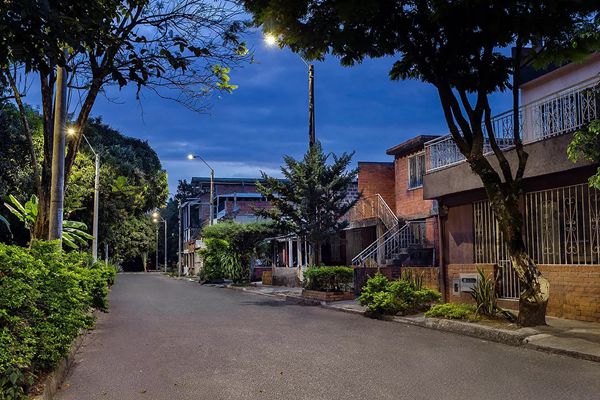

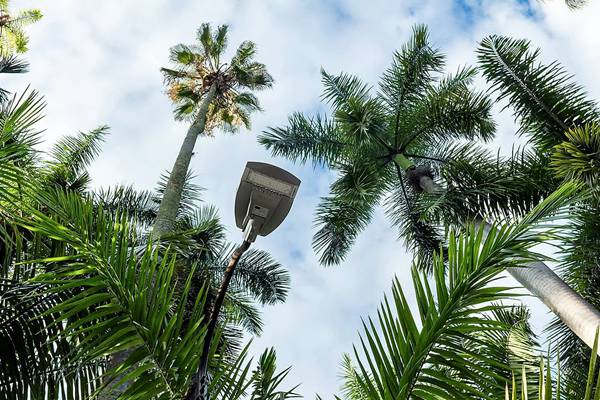

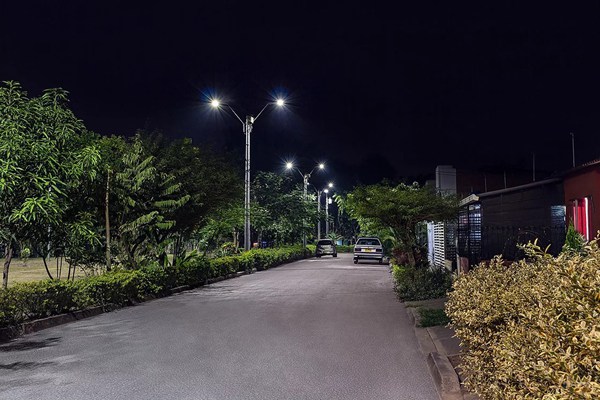

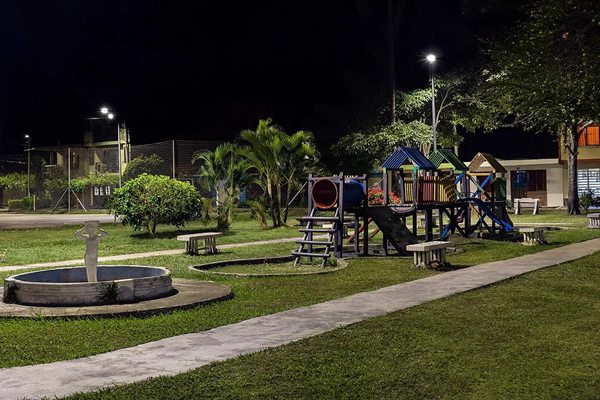

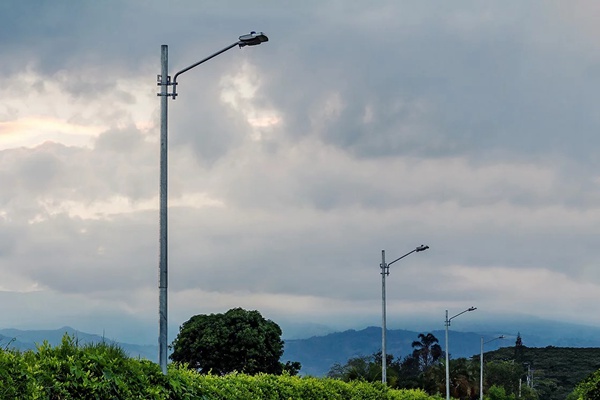

Project Photos


LED Garden Light Project In ColombiaLED Garden Light Project In ColombiaLED Garden Light Project In ColombiaLED Garden Light Project In Colombia

LED Garden Light Project In ColombiaLED Garden Light Project In Colombia


Specification


ModelZGSM-LD35H
LED BrandLumileds Luxeon TX
Driver BrandMeanwell or Inventronics
Norminal Wattage35W
LED Module Quantity1 module
Input Voltage100-240/277VAC/DC12/24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110lm/w
Lamp Rated Lumen output3850 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K or 4000K or 5000K or 5700K
Optic (IESNA)Type I Medium;Type II Medium;Type III Medium,TypeV,Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79,LM80,SAA
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years


Download


Installation Manual_StreetLight_H.pdf

Data Sheet_LEDStreetLight_H.pdf


Related Products


LED Garden Light Project In ColombiaLED Garden Light Project In ColombiaLED Garden Light Project In Colombia

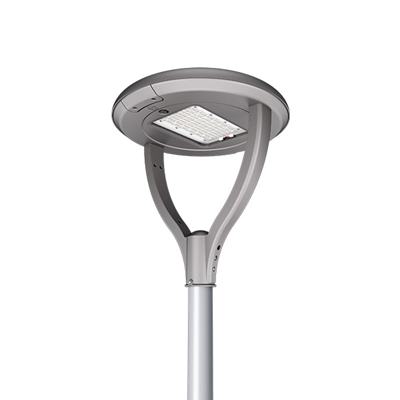

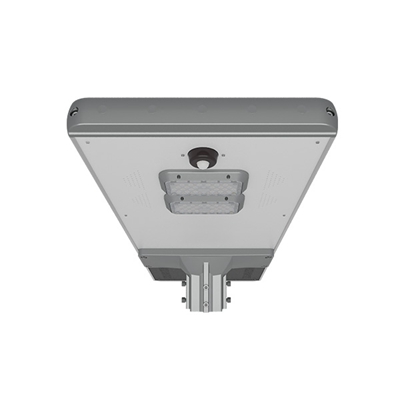

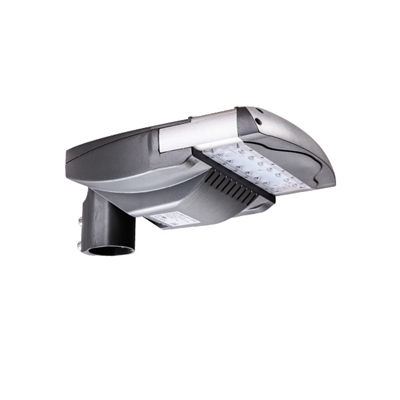

Best Selling 35W UL Approved ShoeBox LightModular Design 80W High Lumen Shoebox LightENEC Certified 37W Tool-less LED Garden Light
LED Garden Light Project In ColombiaLED Garden Light Project In ColombiaLED Garden Light Project In Colombia

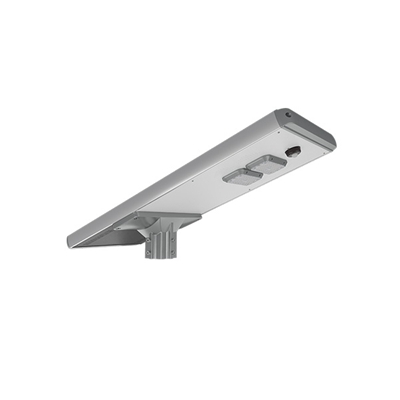

Lithium Battery 50W Solar Powered Garden LightsIntelligent Induction 60w Solar LED Garden Light120w Tool-less LED Post Top Light Fixture


Related Projects


LED Garden Light Project In ColombiaLED Garden Light Project In ColombiaLED Garden Light Project In Colombia

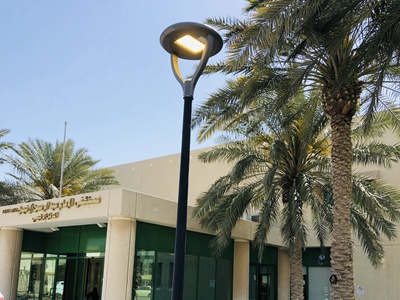

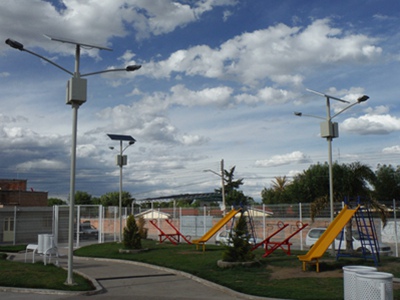

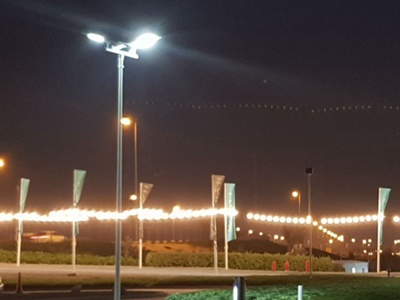

LED Garden Light Project In Saudi ArabiaLED Garden Light Project In MalaysiaSolar Street Lighting Project In UAE
LED Garden Light Project In ColombiaLED Garden Light Project In ColombiaLED Garden Light Project In Colombia

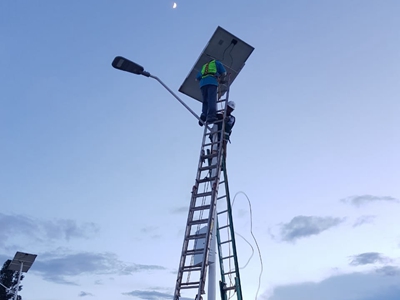

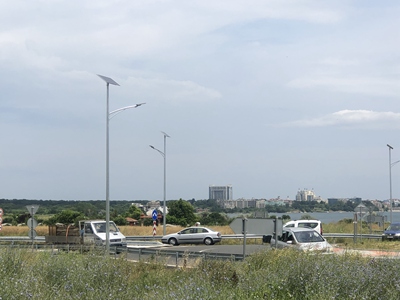

Solar Street Lighting Project In Mexico

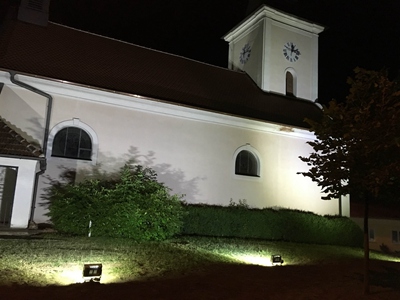

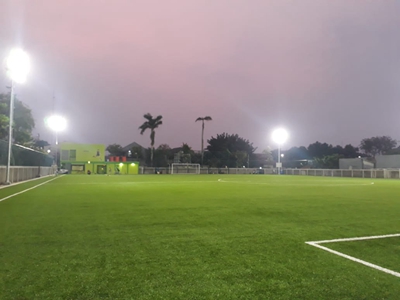

LED Flood Light Project in IndonesiaOutdoor Flood Light Project In Czech


Related Blogs


LED Garden Light Project In ColombiaLED Garden Light Project In ColombiaLED Garden Light Project In Colombia

Why do more and more people choose LED lighting?

Luminous intensity of the LED lightsCorrect Installation And Use Of Led Street Lights
LED Garden Light Project In ColombiaLED Garden Light Project In ColombiaLED Garden Light Project In Colombia
Why Are Solar Street Lights So Popular?6 Things Must Know about Solar Street LightSolar Street Light Technical Support


People Also Ask


  1. What voltage are LED street lights?

    The most frequent operating voltage for streetlights was 120 volts (62 percent), followed by 240 volts (28 percent ). The majority of entities that own streetlights (82 percent) employ individual photocells to operate the streetlight's on/off function.


  2. What is color temperature and why is it important?

    Color temperature is expressed in Kelvin and is a mathematical calculation based on a light source's Spectral Power Distribution (SPD). It enables a large range of unique color combinations. Different combinations of Correlated Color Temperature (CCT) and Color Rendering Indexes (CRI) are available in LED lighting, which can have different impacts on eyesight. The color temperature is measured in degrees Kelvin, with a warm light (yellowish) being around 2700K, neutral white being approximately 4000K, and cool white (bluish) being around 5000K or more.

    Protecting the public with lighting that promotes alert drivers and a safe environment may be the greatest priority in many outdoor applications, to explain why it's necessary. In those circumstances, the suggested color temperature is used, taking into account the space and the people who will be using it.


  3. How do solar street lights work?

    Photovoltaic technology converts sunlight into DC electricity, which is used in solar street lighting systems. The generated electricity can either be used immediately throughout the day or saved in the batteries for later use at night.
