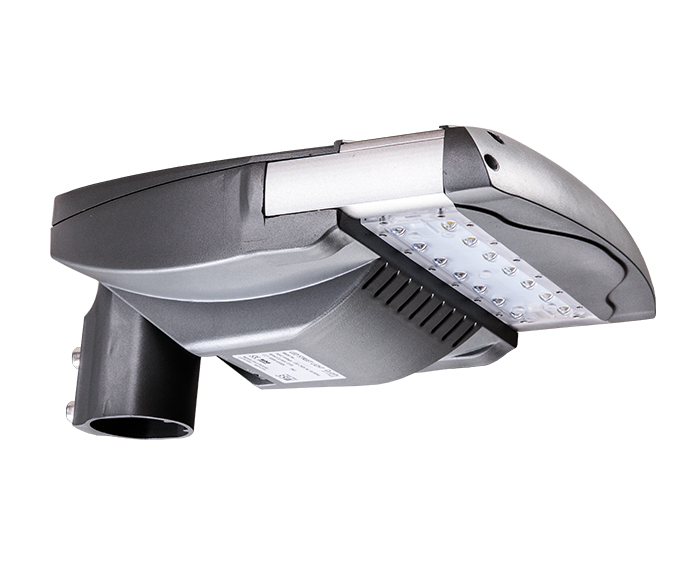

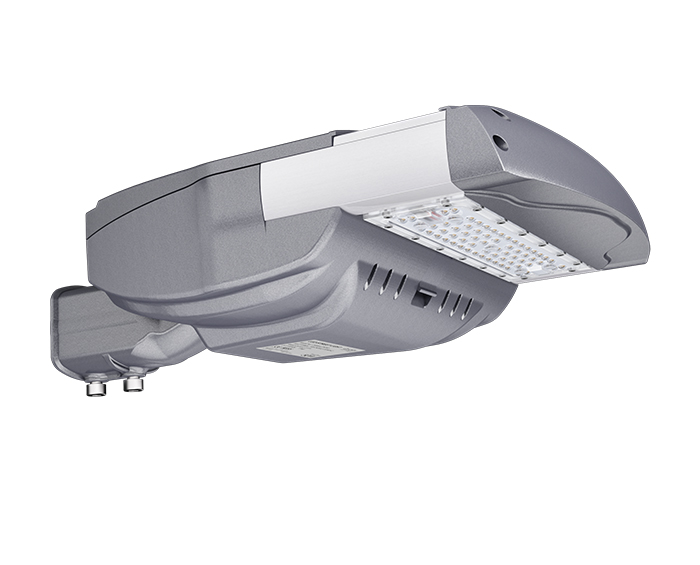

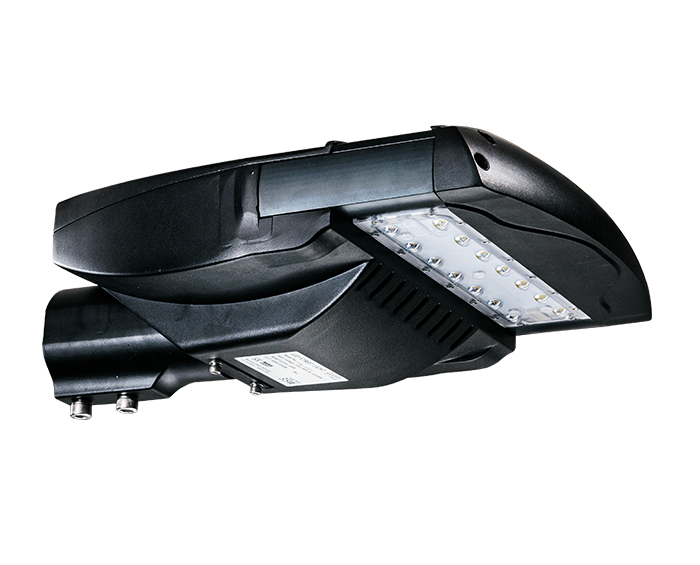

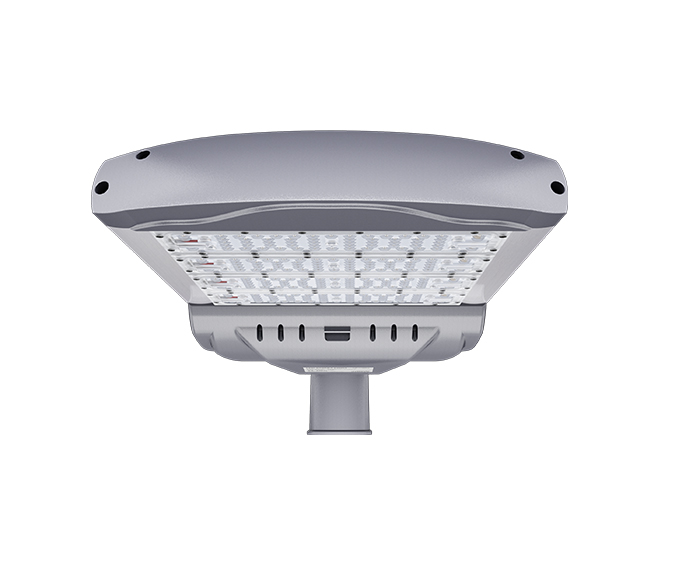

IP66 IK10 Modular Design 50 Watt LED Street Light

IP66 IK10 Modular Design 50 Watt LED Street Light is a modern street light with a modular design that provides a variety of lighting control options, such as DALI, 1-10V, photocell, and motion sensor, for smart lighting and easy lighting management.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED damage won't affect others' normal work.

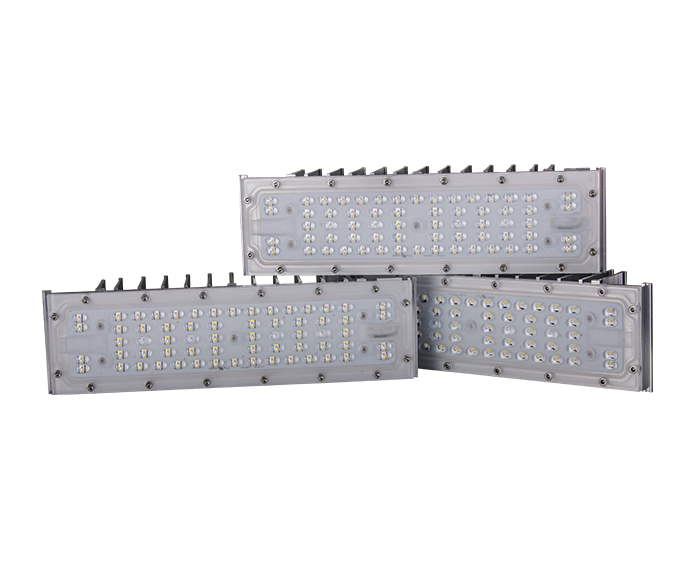

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE, ROHS, GS, CB, LM80, FCC, IP66, IK10

14. 7 years warranty


Specifications

ModelZGSM-LD50H5
LED BrandLumileds 3030/5050
Driver BrandMeanwell or Inventronics
Normal Wattage50W
LED Module Quantity1 module
Input Voltage100-240/277VAC/DC12/24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-160 lm/w
Lamp Rated Lumen output6500-8000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 ( 80 optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Optic (IESNA)Type I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ROHS, ENEC, CB, LM80, LM79, FCC, IP66, IK10
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years


FAQ

1. Do outdoor lights need an IP rating?

With the development of low-voltage lighting and LED technology, outdoor lighting is becoming easier to use, but your lamps need to have a certain IP rating, depending on where they are installed and what they are used for.

IP Rating (Water-2nd Digit)Protected Against...
0Not protected
1Dripping water
2Dripping water when tilted (15 degrees)
3Spraying water
4Splashing water
5Water jets
6Powerful water jets
7
immersion (up to a depth of 1m)
8lmmersion under pressure (beyond 1m)


2. How to choose a street lamp?

Consider the following factors for street lamp wattage and pole height:

  1. Road width.

  2. The distance between the two poles.

  3. Security requirements.

  4. Installation area: rural, urban, or metro city?

  5. Traffic volume.

  6. Public or private use.


3. Is it true that LED street lights (public lights) emit more blue light than other sources, causing sleep disturbances?

There is no need to worry about blue lights emitted by LED street lighting disrupting sleep. The blue light from LEDs is identical to that from other light sources, according to the US Department of Energy. The intensity of light at night is more crucial. The amount of light, the timing, and the duration of light exposure all have a role in the disruptive effect. LED street lighting produces light levels that are too low to alter hormone levels that regulate our sleep habit, according to research.
