ENEC 40w Economical LED road Light

Series Kmini LED Street Light

Model:

ZGSM-LD40Kmini

Application:

Street | Road | Highway | Parking lot | Bridge | Path


ENEC 40w Economical LED road Light
PRODUCT DESCRIPTION

Key Features

● Wide power range: 20W~50W.

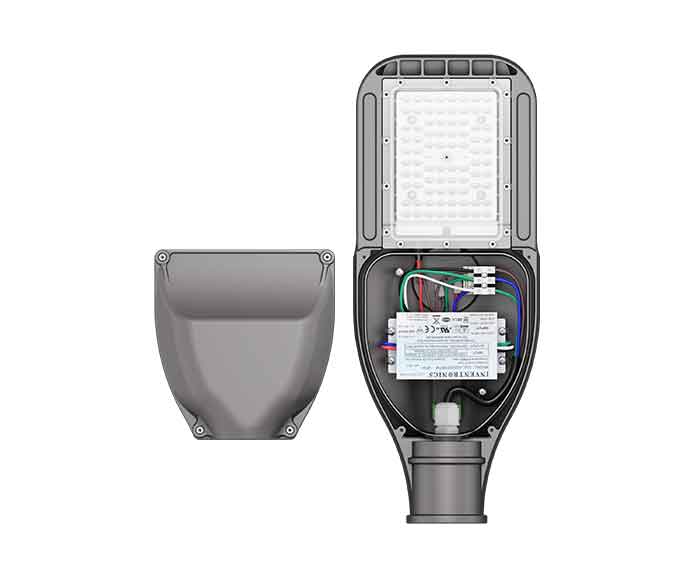

● Special circuit design, single LED's damage won't affect others' normal work.

● Smart design, low transportation costs.

● Smooth body would greatly diminish dust accumulation and bird droppings heap up.

● High Lumen output up to 160lm/ w with high quality LED chips.

● Multiple lighting control options are available, e.g. 1-10V, photocell.

● Designed to last at least 100, 000 hours at L70.




Specifications

Specifications
ModelZGSM-LD40Kmini
LED BrandLUMILEDS® LUXEON 3030/ 5050
Driver BrandInventronics
Norminal Wattage40W
LED Chip Quantity

3030: 56pcs  5050: 22pcs

Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency3030: 140 lm /w  5050: 150 lm /w
Lamp Rated Lumen output3030: 5600 lm  5050: 6000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric Type3030: Type II Medium  5050: Type II Medium BLS
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; PC Lens

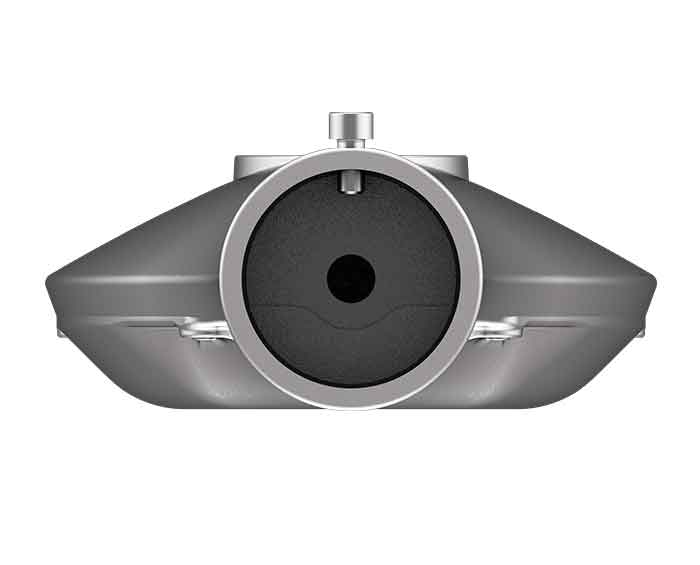

Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I
SPD10KV (20KV optional)
CertificationCE, ENEC,CB ROHS,LM80,LM79,IP66 IK10,ISTMT
Dimming Options1-10V
Control OptionsPhotocell or Smart control
Color OptionsDeep grey
Warranty5 years





Packing Details

Packing Details
Fixture Dimension447X179X77mm
Fixture Weight2.3 kg
Packing Dimension465X200X100mm
Packing Weight2.7 kg
