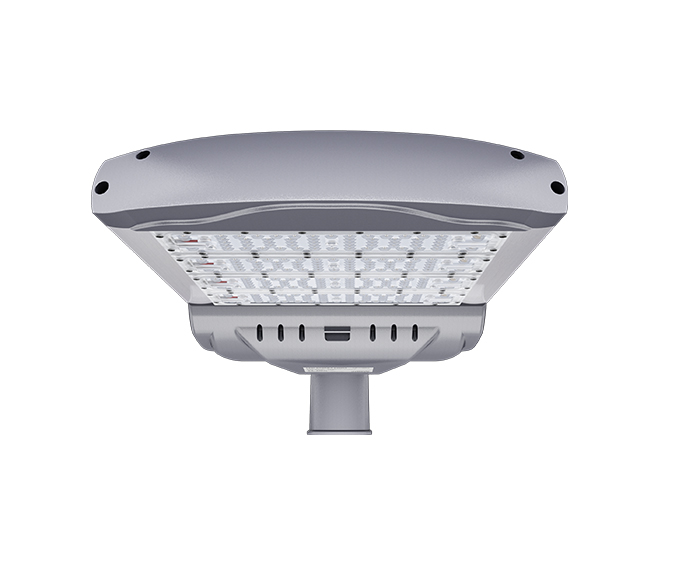

Best Parking Lot Pole Lights 100w UL Approved

Parking Lot Pole Lights and street lights are ideal for a variety of outside and outdoor lighting applications, including parking lots, residential areas, and streets. Parking lot lights are outdoor lights that cast maximum light over a large area to improve visibility and help keep pedestrians and vehicles safe.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE,ROHS,GS,CB,LM80,FCC,IP66,IK10

14. 7 years warranty


Specifications

ModelZGSM-LD100H
LED BrandLumileds Luxeon TX
Driver BrandMeanwell or Inventronics
Normal Wattage100W

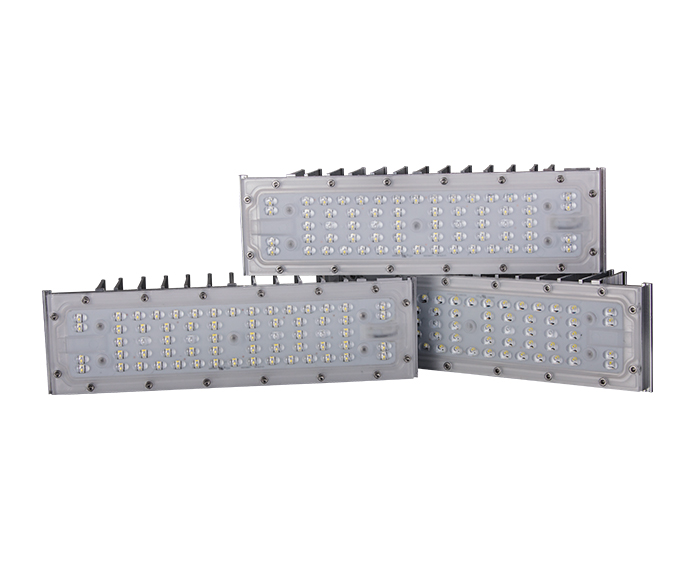

LED Module Quantity3 modules
Input Voltage100-240/277VAC/DC24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110lm/w
Lamp Rated Lumen output11000 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79,LM80,SAA
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years


FAQ

What are street lights and parking lot lights?

Street lights project narrow beams to illuminate narrow rectangular areas, such as street surfaces, while parking lot lights project-wide beams to illuminate larger areas.


Why do the lights in the parking lot blink?

A flashing light usually indicates that the lamp is damaged or low power. This is common in outdated metal halide fixtures. If you notice flashes in your parking lot, it's recommended to replace them and consider switching to longer-lasting LEDs.
