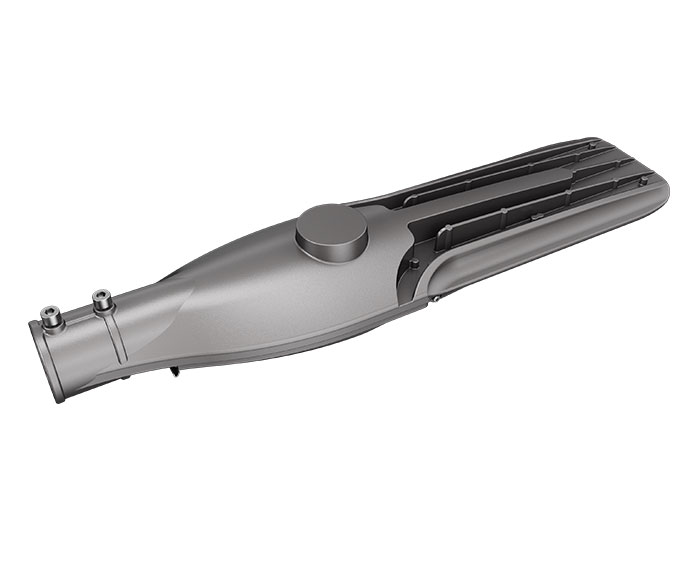

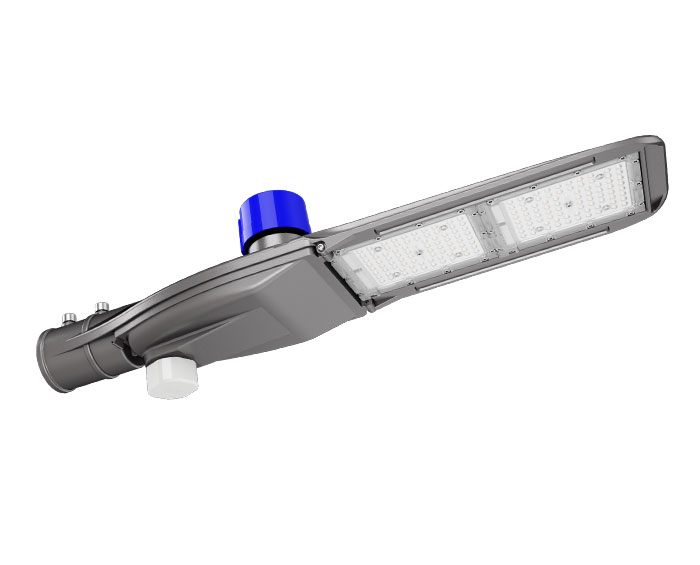

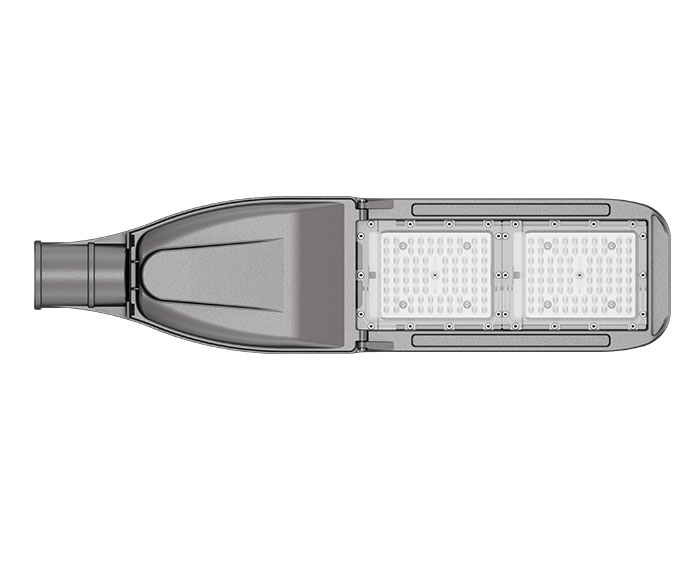

Economical LED street light
Street Lighting LED is originally designed to illuminate public roads and highways, but can also be installed in gardens, parks, and private estates. Our Kmini2 series led street lights to become a competitive product at the best price, with Smart design, and low transportation costs. Toolless is open for easy installation, replacement, and maintenance.
● Wide power range: 60W~130W.
● Smart design, low transportation costs.
● Special circuit design, single LED damage won't affect others' normal work.
● Tool-less open for easy installation, replacement, and maintenance.
● High Lumen output up to 160lm/ w with high-quality LED chips.
● Multiple lighting control options are available, e.g.1-10V, photocell, and motion sensor.
● Designed to last at least 100,000 hours at L70.
Model | ZGSM-LD110Kmini2 |
LED Brand | LUMILEDS® LUXEON 3030/ 5050 |
Driver Brand | Inventronics |
Normal Wattage | 110W |
LED Chip Quantity | 3030: 160pcs 5050: 56pcs |
Input Voltage | 100-240/277VAC |
Power Efficiency | >90% |
Power Factor | >0.95 |
Lamp Rated Luminous Efficiency | 3030: 143 lm /w 5050: 155 lm /w |
Lamp Rated Lumen output | 3030: 15730 lm 5050: 17050 lm (Lumen tolerance +/- 5%) |
Color Rendering Index | 70(80 optional) |
Color Temperature | 3000K or 4000K or 5000K or 5700K |
Photometric Type | 3030: Type II Medium 5050: Type II Medium BLS |
Optimal Operating Temperature | 25℃ |
Storage Temperatures | -40°C~50°C |
Working Environment | Between-40°C~+50°C, 10%~90%RH |
Total Harmonic Distortion | < 10% |
Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
Wind Index | Force 12 |
Body and Shell Materials | Die-cast aluminum; PC Lens |
Pole Fitter Diameter | 60mm ( 50mm optional) |
Rating | IP66 IK10 |
Protection | Class I |
SPD | 10KV (20KV optional) |
Certification | CE, ENEC,CB ROHS,LM80,LM79,IP66 IK10,ISTMT |
Dimming Options | 1-10V |
Control Options | Photocell or Smart control |
Color Options | Deep grey |
Warranty | 5 years |
The main requirements are to provide a specified illuminance level and uniformity ratio and adequate control of the glare. In conflict zones, visual tasks are often more difficult than straight roads due to changes in road layout or high patronage by pedestrians, cyclists, or other road users.
In residential areas, luminaires are typically 120 or 240VAC single-phase. Older highway lights and airport runway lights operate on 5kV series circuits powered by constant current transformers.
