Economical LED street light

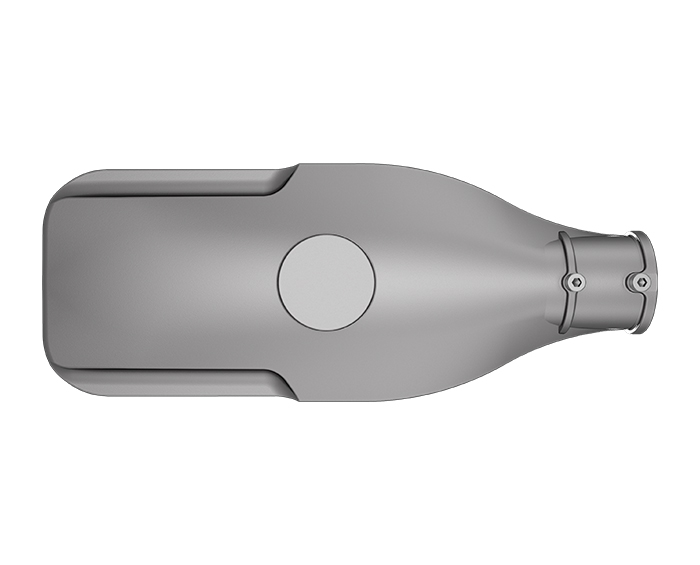

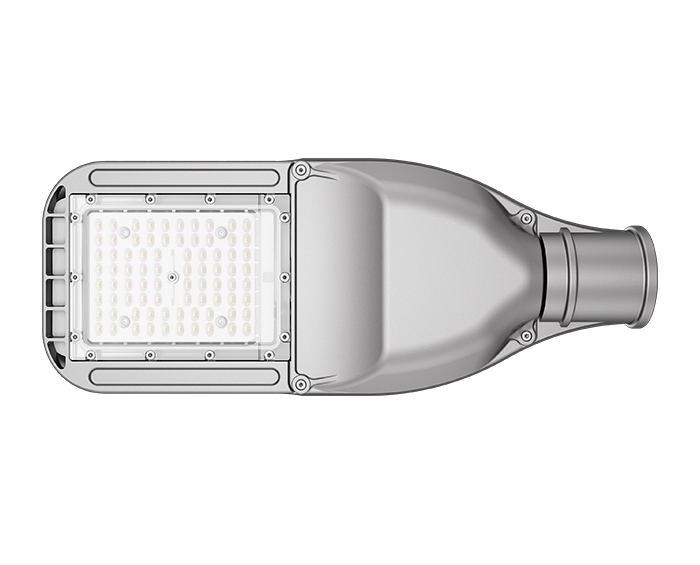

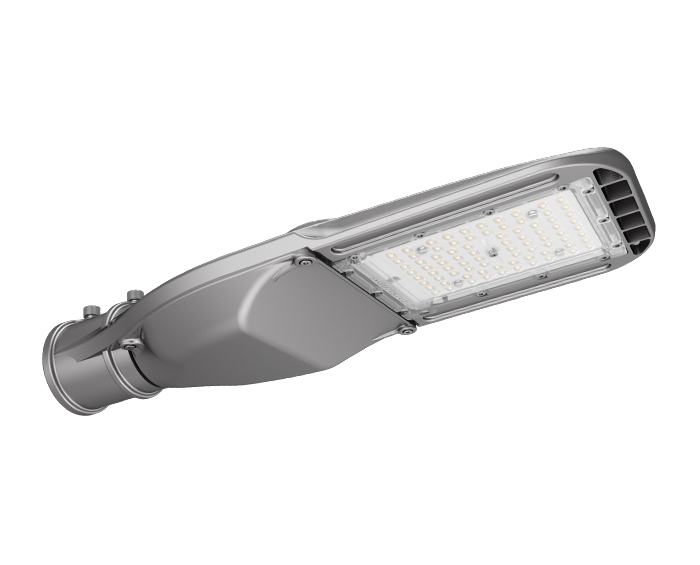

Series Kmini LED Street Light
Model：
ZGSM-LD28Kmini
Application：
Street | Road | Highway | Parking lot | Bridge | Path
1. Wide power range: 28W~57W
2. Special circuit design, single LED’s damage won't affect others' normal work
3. Smart design, low transportation costs
4. Smooth body would greatly diminish dust accumulation and bird droppings heap up.
5. High Lumen output up to 142lm/w with high quality LED chips
6. Designed to last at least 100,000 hours at L70
7. ENEC/ CB/ CE/ RoHS/ IK10 /IP66 /LM79
8. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell.
9. 5 years limited warranty available.
| Specifications | |
| Model | ZGSM-LD28Kmini |
| LED Brand | LUMILEDS® LUXEON 3030 |

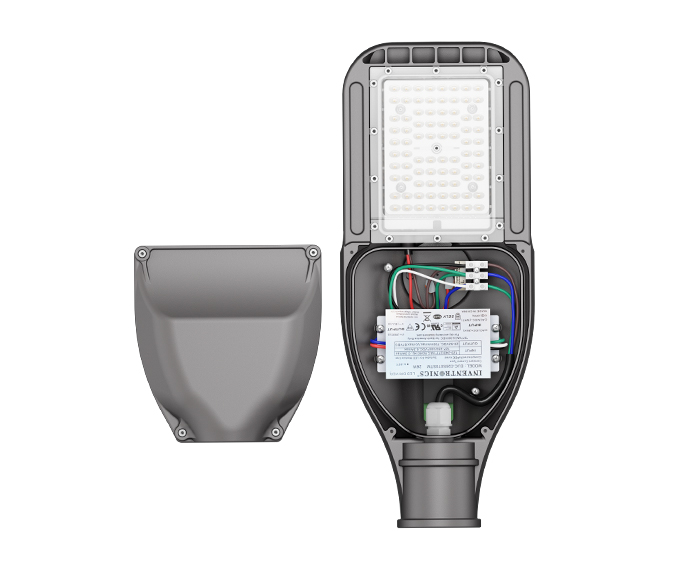

| Driver Brand | Inventronics |
| Norminal Wattage | 28W |
| LED Chip Quantity | 3030: 48pcs |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 142 lm /w |
| Lamp Rated Lumen output | 3976 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70(80 optional) |
| Color Temperature | 3000K or 4000K or 5000K or 5700K |
| Photometric Type | Type II Medium |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body and Shell Materials | Die-cast aluminum; PC Lens |

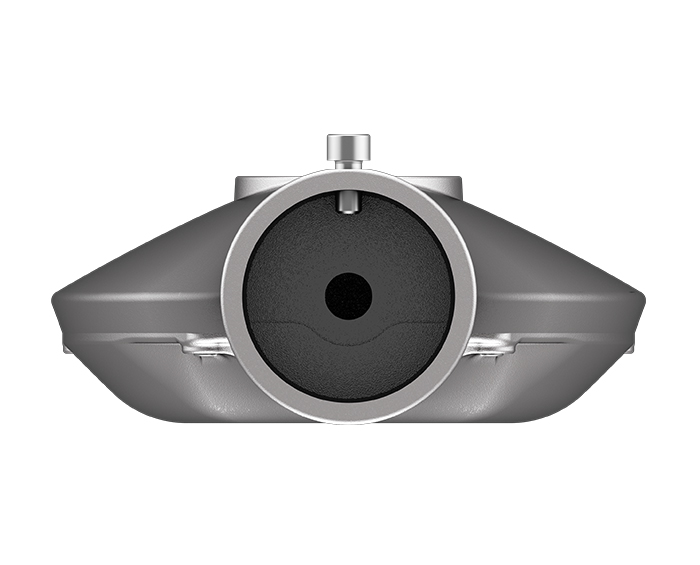

| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK10 |
| Protection | Class I |
| SPD | 10KV (20KV optional) |
| Certification | CE, ENEC,CB ROHS,LM80,LM79,IP66 IK10,ISTMT |
| Dimming Options | 1-10V |
| Control Options | Photocell or Smart control |
| Color Options | Deep grey |
| Warranty | 5 years |
| Packing Details | |
| Fixture Dimension | 447X179X77mm |
| Fixture Weight | 2.2 kg |
| Packing Dimension | 465X200X100mm |
| Packing Weight | 2.6 kg |
