IP66 LED Flood Light
Series H4B LED Flood Light
Model:
ZGSM-FGD160H4B
Application：
Warehouse | Workshop | Garage | Billboard | Area | Building
1. Wide power range: 40W~360W.
2. Special circuit design, single LED’s damage won't affect others' normal work.
3. Modular design for easy installation, replacement and maintenance.
4.High Lumen output up to 165lm/ w with high quality LED chips.
5. Various applications with different mounting Accessories.
6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.
7. Designed to last at least 100, 000 hours at L70.
8. Multiple lighting distributions are available.
| Model | ZGSM-FGD160H4B |
| LED Brand | Lumileds LUXEON 3030/5050 |
| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 160W |
| LED Module Quantity | 4 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 140-165 lm/w |
| Lamp Rated Lumen output | 22400-26400 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Stretching Aluminum |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE,ROHS,LM80 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
| Fixture Dimension | 385 x270x300 mm |
| Fixture Weight | 5.4 kg /11.9 lbs |
| Packing Dimension | 505 x370x200mm |
| Packing Weight | 6.3 kg /13.9lbs |
LED Gas Station Light Project In Ghana
LED Street Light Project in Uruguay
LED High Bay Light Project In Netherlands
LED High Bay Light Project In Croatia
LED Flood Light Project In Greece
LED Tunnel Light Project in China
LED Street Light Project in He'nan, China
LED Street Light Project in Greece
LED Projector Light Project In Mexico
LED Tunnel Light Project in Mexico
LED Street Light Project in Hangzhou, China
LED Canopy Light Project in Vietnam
High Lumen 120w IP66 flood lamp
CE UL approved 120w IP66 led flood lamp
50w IP66 outdoor led flood lights
Economical 120w IP66 Waterproof Outdoor Flood Lights
Outdoor 100w IP66 led flood light fixtures
Economical 240w IP66 Warehouse LED Flood Light
Outdoor 240w IP66 floodlight
Economical 180w IP66 Workshop LED Flood Light
High Lumen 240w IP66 flood light led
CE UL approved 240w IP66 led outside flood lights

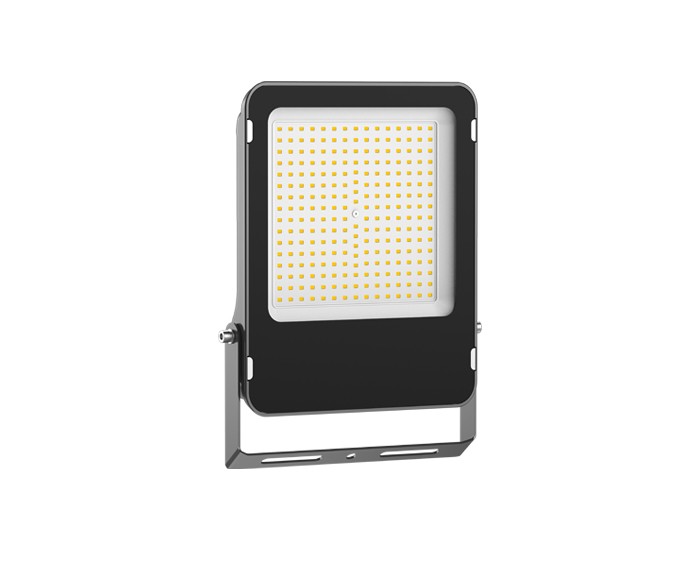

Series FL12 LED Floodlights With CCT & Power Selection
