LED Tunnel Light Project in Mexico

LED tunnel lighting project in Mexico, finished in 2018. There are 250 units of 100W H Series LED Tunnel Lights installed in this project. H Series LED tunnel lamp is developed and manufactured by ZGSM. As one model of ZGSM modular design products, it is easy to install and maintain. IP66 waterproof design and IK10 tested make it could both work as LED high bay light in indoor lighting and work as LED flood light in outdoor lighting. Equipped with high-end Meanwell drivers and Lumileds chips, the lifespan of H Series tunnel LED lights is more than 100000hours (L70 @25℃). We provide a warranty of up to 7 years for the full light fixture of H Series tunnel lights.


Product Details


Product: 100W LED Tunnel Light

Model No.: ZGSM-GCD100H5

LED: Lumileds 3030

Driver: Inventronics

CCT: 5700K

Optics: 90 degrees

QTY: 250 Units


Video

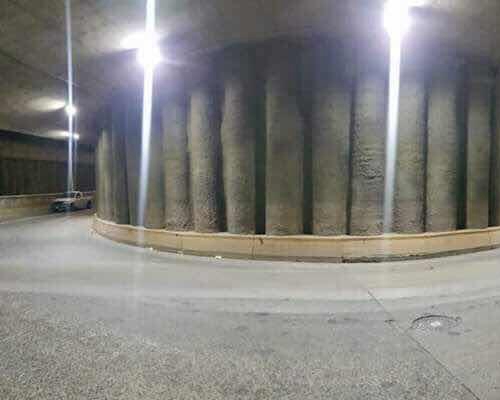

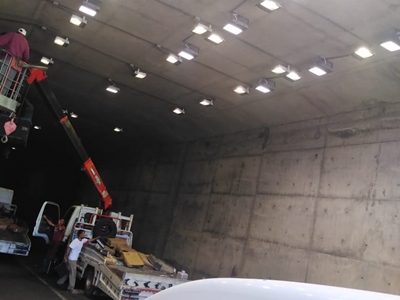

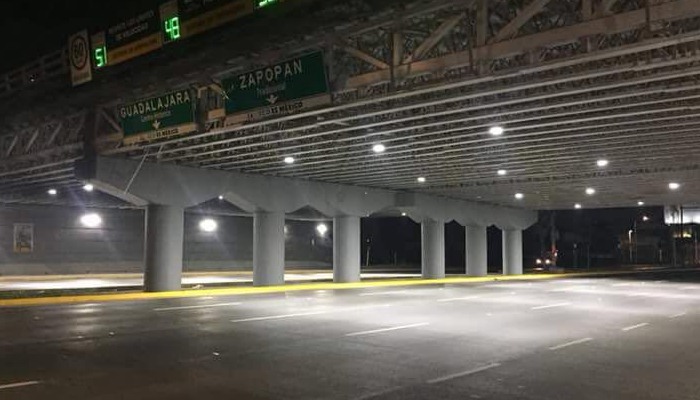

Project Photos


LED Tunnel Light Project in MexicoLED Tunnel Light Project in Mexico


Specification


ModelZGSM-GCD100H5
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Norminal Wattage100W
LED Module Quantity2 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-160 lm/w
Lamp Rated Lumen output13000-16000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


Download


Installation Manual_HighBay&Flood&TunnelLight_H.pdf

Data Sheet_HighBay&Flood&TunnelLight_H.pdf

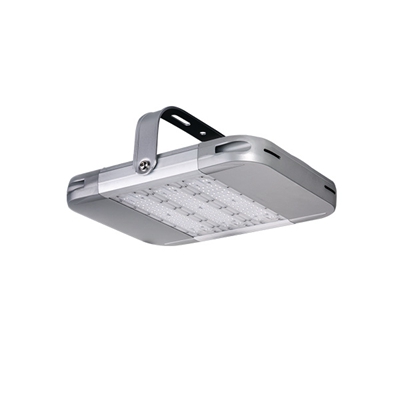

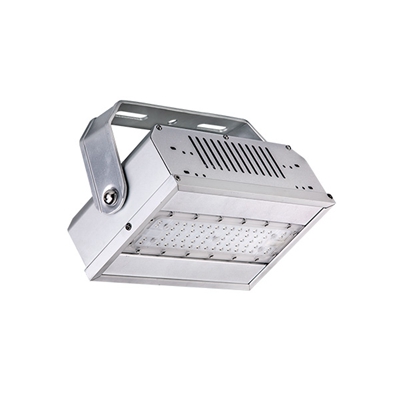

Related Products


LED Tunnel Light Project in MexicoLED Tunnel Light Project in MexicoLED Tunnel Light Project in Mexico

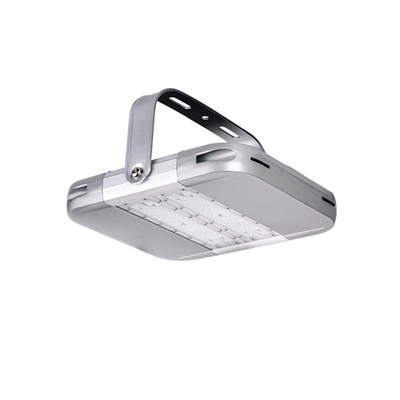

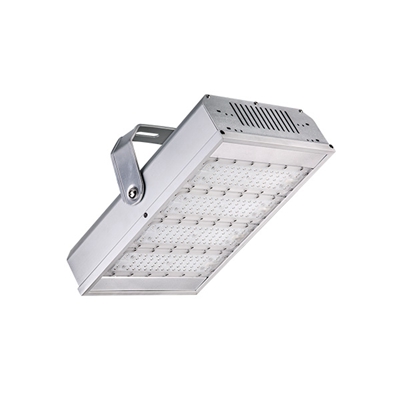

50W IP66 LED Passage Light100W IP66 LED Channel Light150W IP66 Tunnel Light Manufacturers
LED Tunnel Light Project in MexicoLED Tunnel Light Project in MexicoLED Tunnel Light Project in Mexico

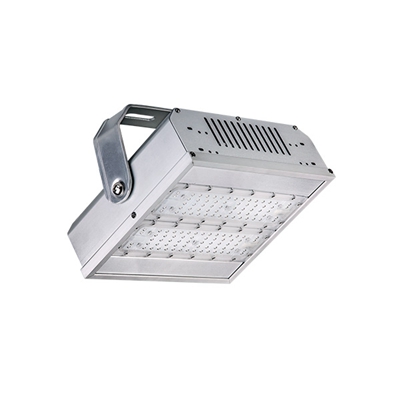

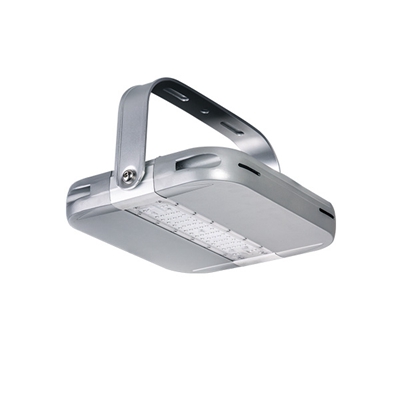

60W Modular Design Tunnel Lighting Fixtures120W LED Tunnel LightsCompetitive 240W Modular Design Tunnel Lighting

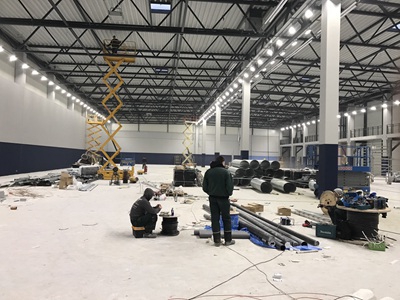

Related Projects


LED Tunnel Light Project in Mexico
LED Tunnel Light Project in China


Related Blogs


LED Tunnel Light Project in MexicoLED Tunnel Light Project in MexicoLED Tunnel Light Project in Mexico

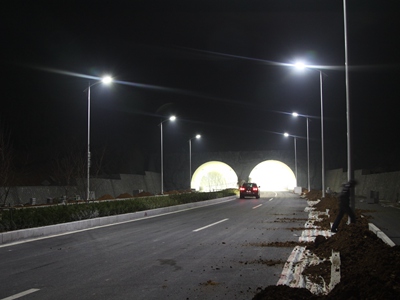

LED Tunnel Lights Advantages

And Installation Precautions

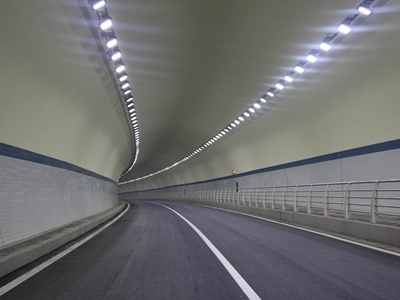

LED Tunnel Light Energy Saving Project

Renovation Solution

What Are The Characteristics

Of LED Tunnel Lights?

LED Tunnel Light Project in MexicoLED Tunnel Light Project in MexicoLED Tunnel Light Project in Mexico

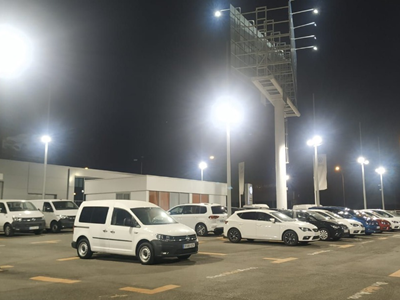

What Are The Main Application Areas Of
