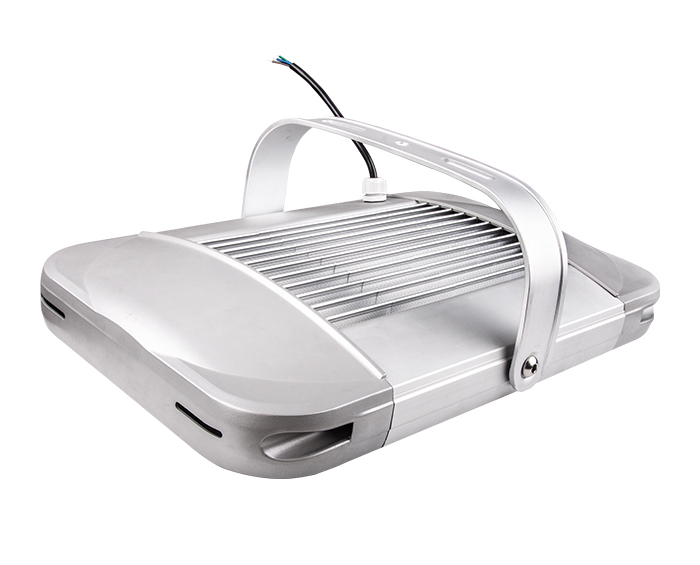

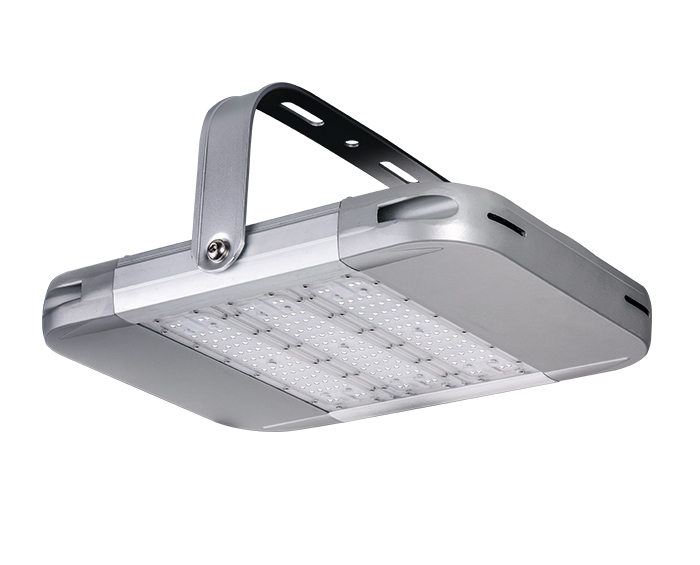

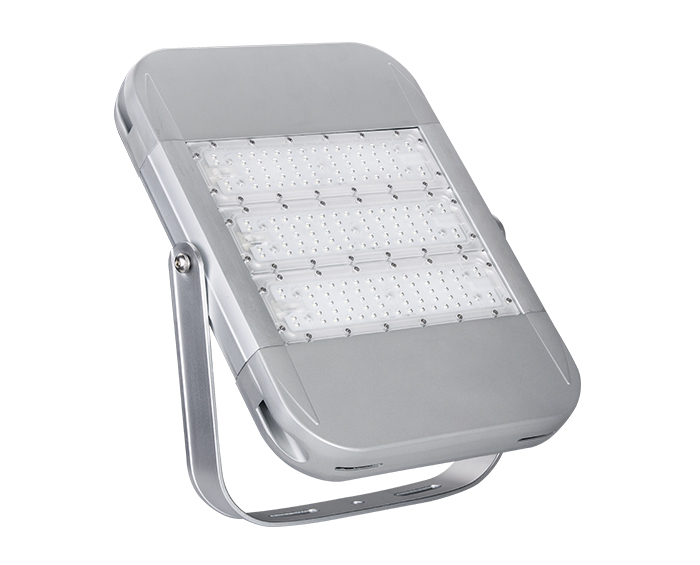

IP66 LED Tunnel Light
150w IP66 LED Tunnel Light. It is used in large-area floodlighting in tunnels, workshops, large warehouses, stadiums, metallurgy and various factories, engineering construction, and other places. It is most suitable for urban landscapes, billboards, and building structures Surfaces for landscaping lighting.
1. Wide power range: 40W~240W.
2. Special circuit design, single LED damage won't affect others' normal work.

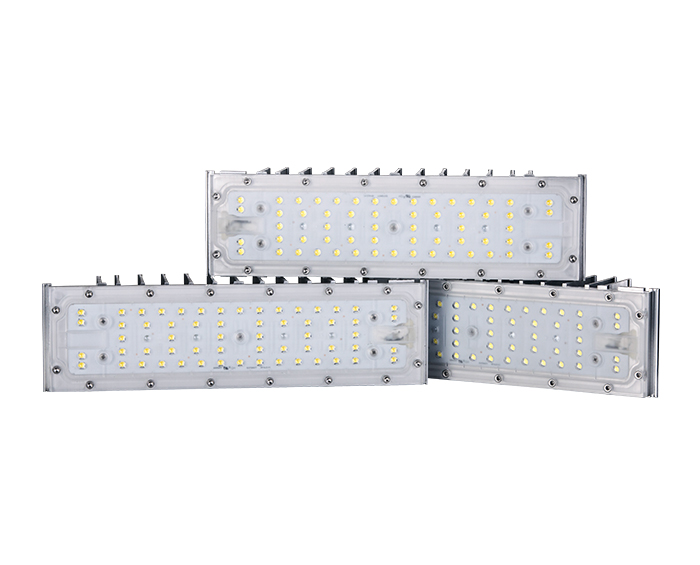

3. Modular design for easy installation, replacement, and maintenance.
4. High Lumen output up to 165lm/ w with high-quality LED chips.

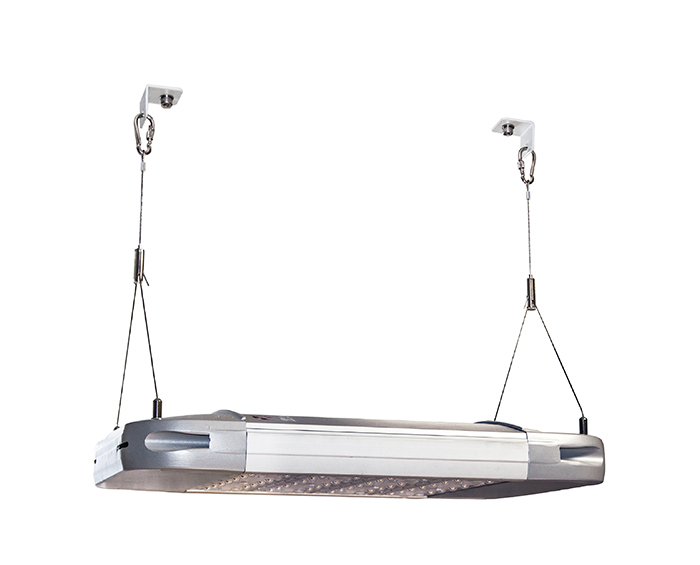

5. Variety applications with different mounting Accessories.
6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.
7. Designed to last at least 100, 000 hours at L70.
8. Multiple lighting distributions are available.
Model | ZGSM-SDD150H5 |
LED Brand | Lumileds LUXEON 3030/5050 |
Driver Brand | Meanwell HLG series |
Norminal Wattage | 150W |
LED Module Quantity | 3 modules |
Input Voltage | 100-240/277/347/480VAC |
Power Efficiency | >90% |
Power Factor | >0.95 |
Lamp Rated Luminous Efficiency | 130-160 lm/w |
Lamp Rated Lumen output | 19500-24000 lm (Lumen tolerance +/- 5%) |
Color Rendering Index | 70 (80 is optional) |
Color Temperature | 3000K, 4000K, 5000K or 5700K |
Photometric Type | 60,90,110 degrees |
Optimal Operating Temperature | 25℃ |
Storage Temperatures | -40°C~50°C |
Working Environment | Between-40°C~+50°C, 10%~90%RH |
Total Harmonic Distortion | < 10% |
Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
Body | Die-cast aluminum Housing |
Cover | PC lens |
Rating | IP66 IK10 |
Protection | Class I ( Class II optional) |
Certification | CE,ROHS,LM80 |
Dimming Options | 1-10V or DALI or PWM or Timer |
Control Options | Motion sensor or Smart control |
Color Options | Silver |
Warranty | 7 years |
Good tunnel lighting ensures that the driver adapts to the light inside the tunnel at the tunnel entrance. It creates a safe driving environment by providing adequate lighting for the entire tunnel. The driver must enter the tunnel without any negative impact, pass through the tunnel and leave the tunnel.
It is generally used for transition zones and internal areas of long tunnels, short tunnels, or low-speed tunnels in all areas. Asymmetrical lighting can also be a way to enhance the brightness level of a one-way tunnel.
