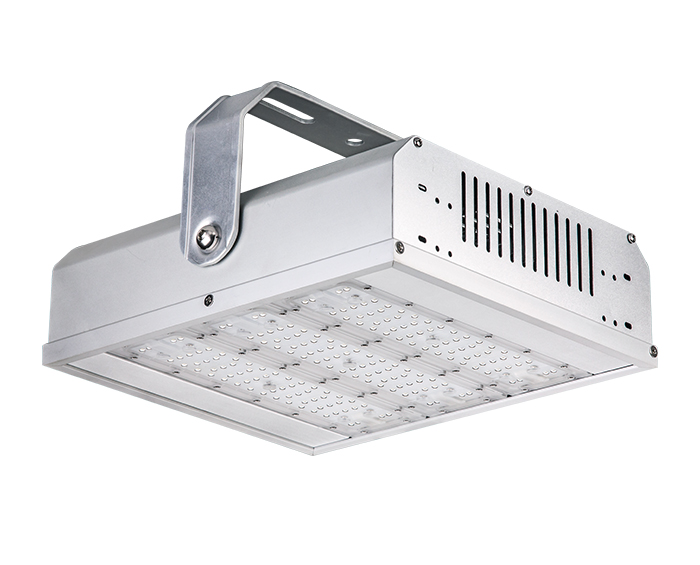

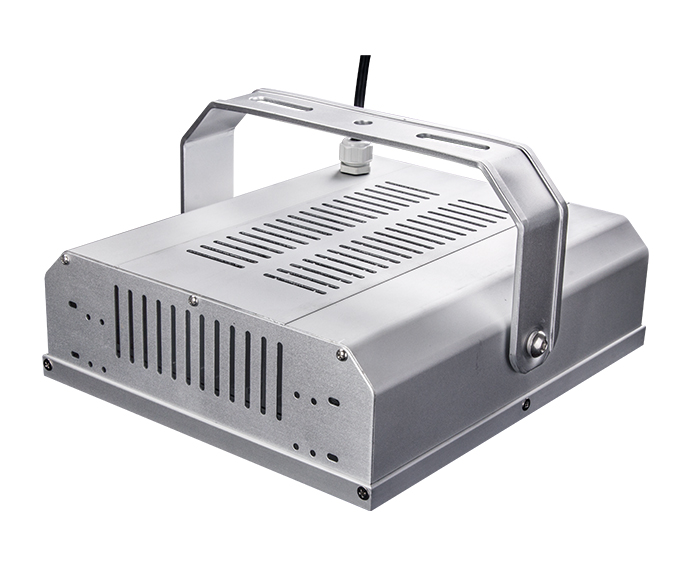

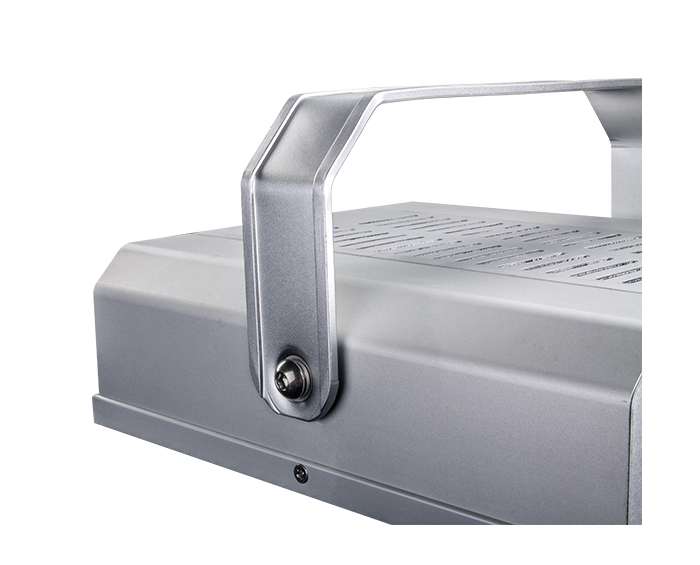

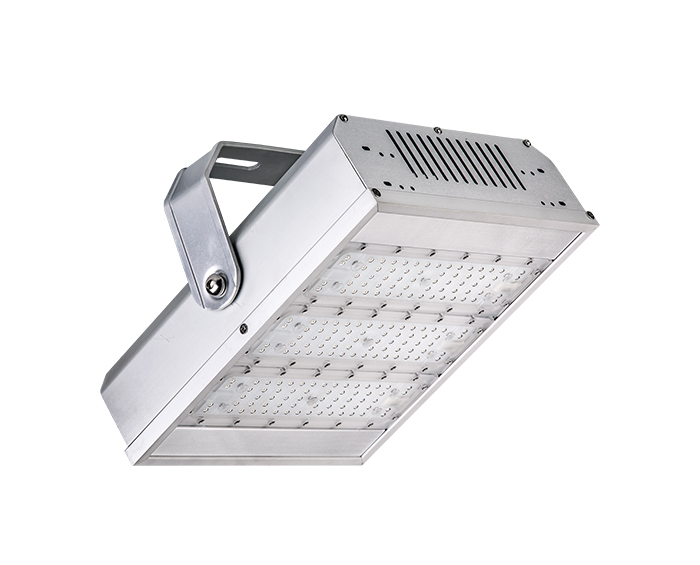

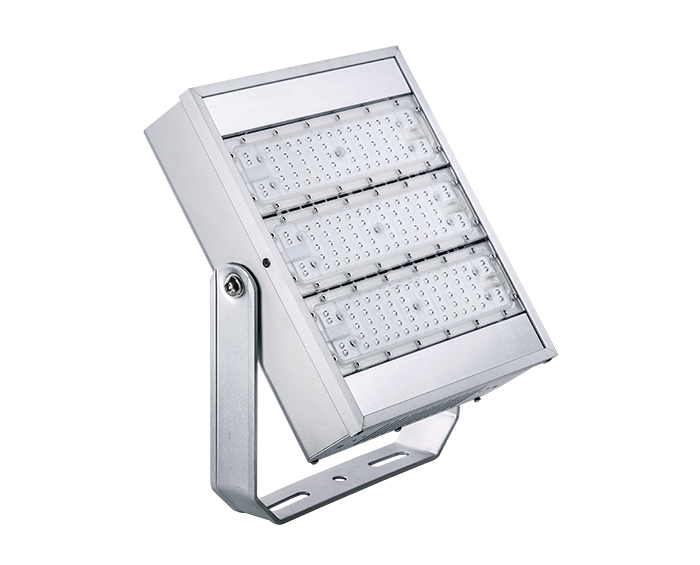

180w Modular Design Under Bridge Lighting

The first option for the bridge lighting design was to install floodlights under the bridge. They can make bridges more attractive, and they can make them a little safer. It shows the walking path of the bridge, helping you determine where you want to go as you walk through the space. But Under Bridge Lighting can also stand out from a distance. It illuminates the entire bridge body, creating a refined all-around look.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~240W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Variety applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-SDD180H6
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage180W
LED Module Quantity3 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-155 lm/w
Lamp Rated Lumen output22500-27900 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

What are the lights under a bridge for?

Under-bridge lighting is a sufficiently common type of lighting that can also provide some functional and decorative advantages. In addition to the unique atmosphere, it can provide bridges, and under-bridge lighting is also very important for pedestrians and passing vehicles, especially at night.


What lights are suitable for underground passage lighting?

Today, LED lights are increasingly used to illuminate public road networks, including tunnels, rather than traditional high-intensity discharge (HID) lighting systems. LED lighting systems have proven to be the perfect tunnel lighting device for today's underground roads.
