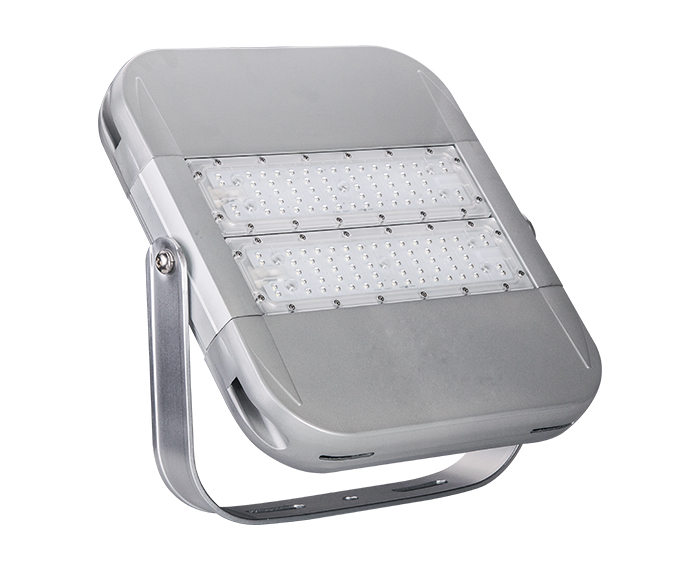

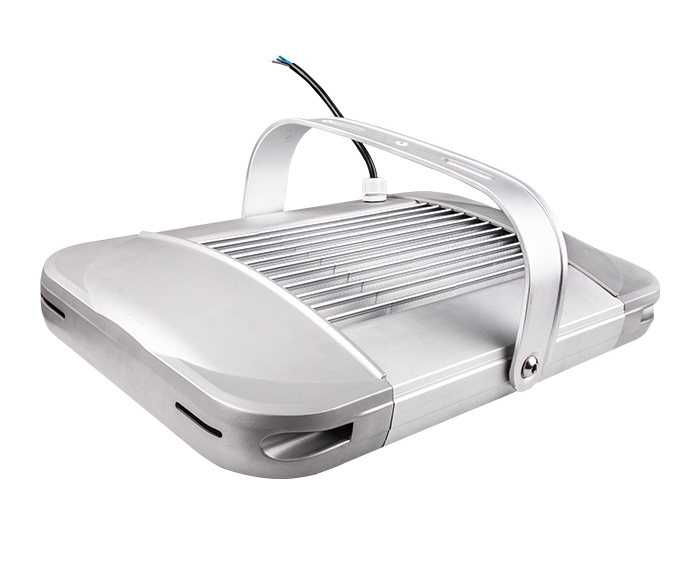

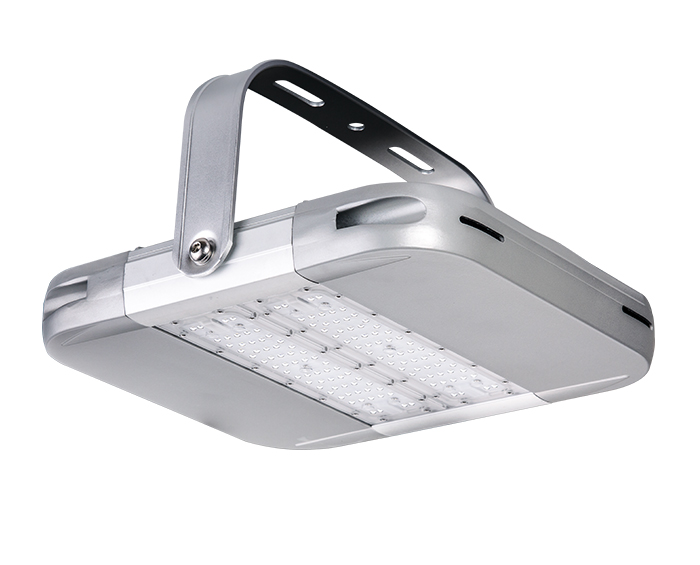

100w IP66 LED Tunnel and Underpass Light

Road tunnels are special areas where the overall safety of travelers and accidents need to be reduced to ensure smooth traffic. The specific LED Tunnel and Underpass Light source for tunnel lighting guarantees uniform beam distribution and high visual comfort reduces glare and places high demands on thermal management, consistent brightness, and high energy efficiency. ZGSM can provide project-specific custom lighting upon request.



Key Features

1. Wide power range: 40W~240W.

2. Special circuit design, single LED damage won't affect others' normal work.

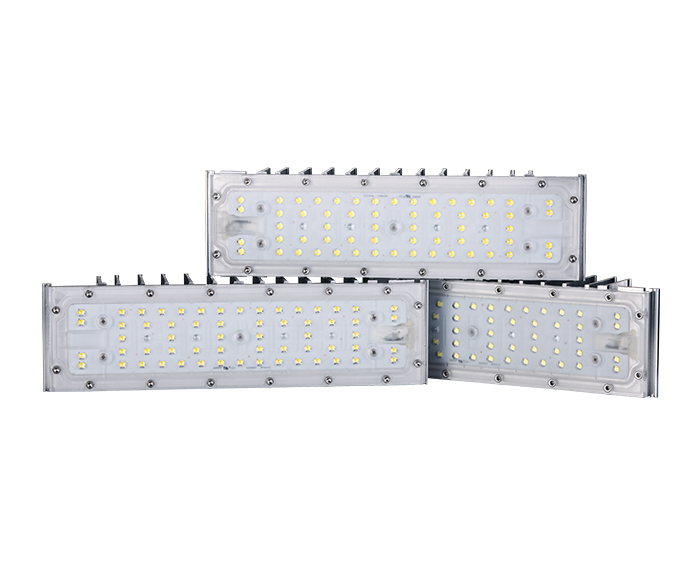

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

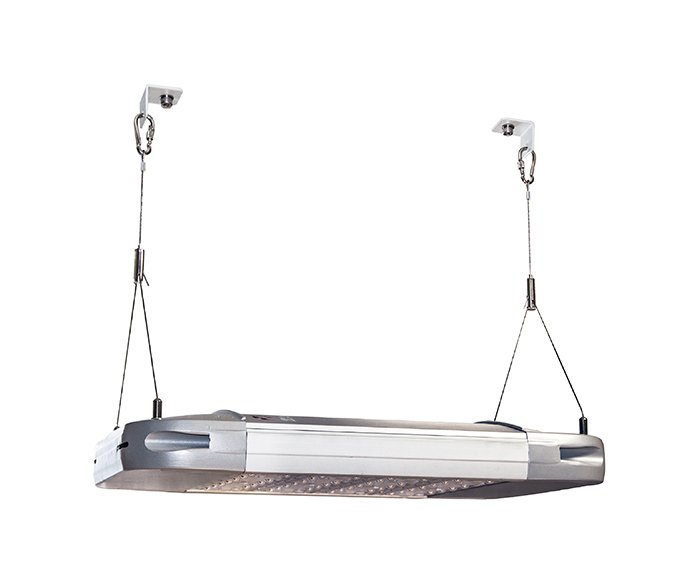

5. Variety applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage100W
LED Module Quantity2 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-160 lm/w
Lamp Rated Lumen output13000-16000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


How to choose led tunnel light?

Waterproof and corrosion-resistant.

Good stability.

Long working life.

High lighting efficiency.



Special optical design.

Easy installation.

What lights are suitable for underground passage lighting?

Today, LED lights are increasingly used to illuminate public road networks, including tunnels, rather than traditional high-intensity discharge (HID) lighting systems. LED lighting systems have proven to be the perfect tunnel lighting device for today's underground roads.
