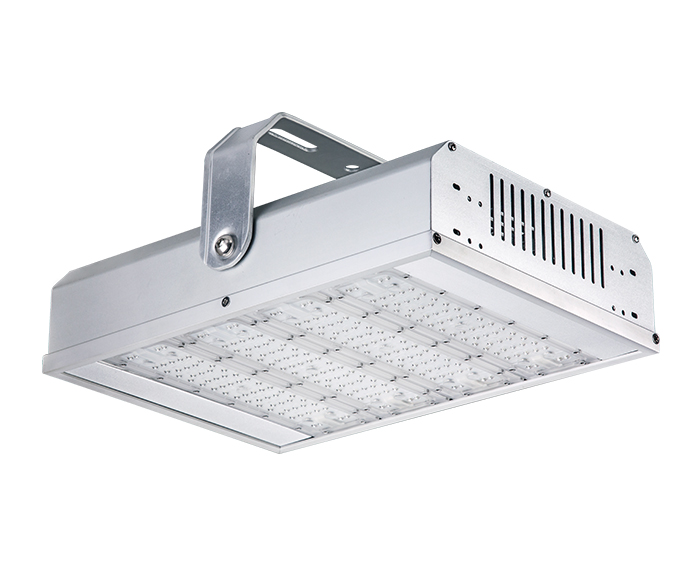

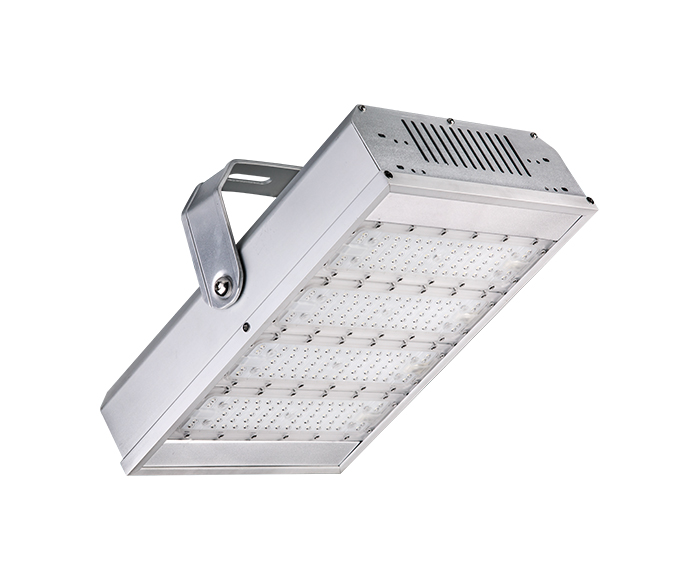

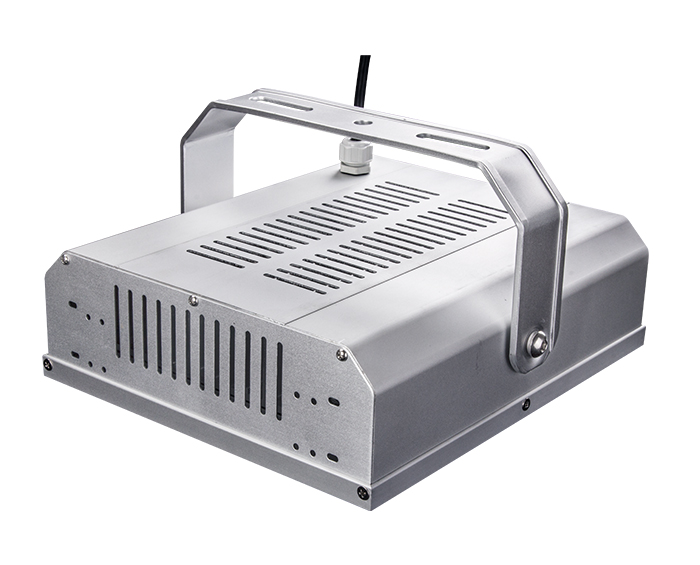

Competitive 240w Modular design tunnel lighting

As our road network becomes more congested, the use of tunnels and underpasses is expanding to improve traffic flow. ZGSM's tunnel lighting is available in a variety of light distribution options, with PC lenses and flexible bracket mounting, as each tunnel is different, which is why our portfolio of the tunnel and underground aisle lighting solutions provides maximum flexibility.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~240W.

2. Special circuit design, single LED damage won't affect others' normal work.

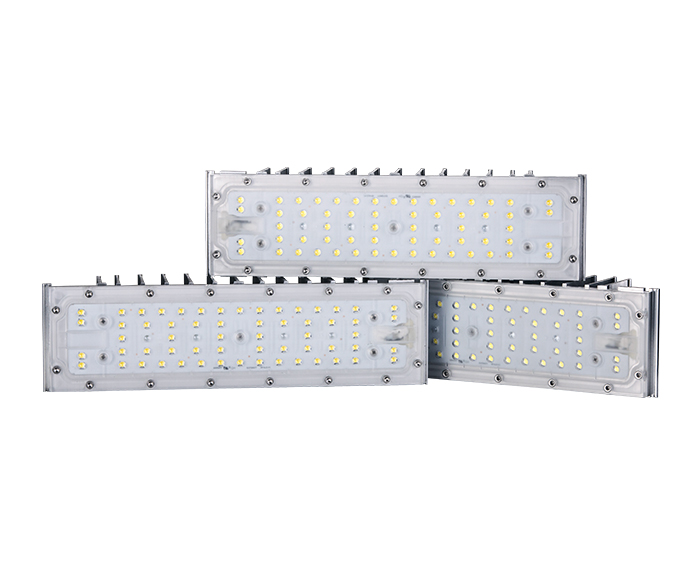

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

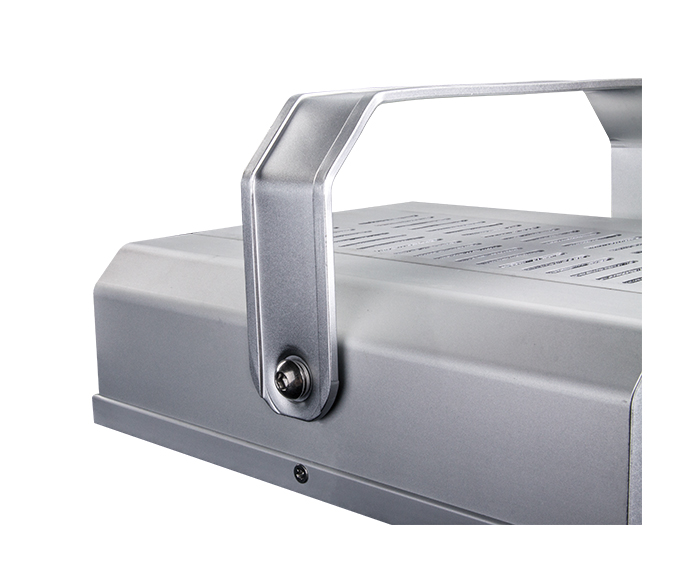

5. Variety applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-SDD240H6
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage240W
LED Module Quantity4 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-155 lm/w
Lamp Rated Lumen output30000-37200 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

What is tunnel lightning?

Good tunnel lighting ensures that the driver adapts to the light inside the tunnel at the tunnel entrance. It creates a safe driving environment by providing adequate lighting for the entire tunnel. The driver must enter the tunnel without any negative impact, pass through the tunnel and leave the tunnel.


Why does tunnel lighting need?

Tunnel lighting is necessary to solve the problem of sudden adaptability to the environment within the tunnel. The need to balance the adaptability of the internal and external brightness to the people entering and leaving the tunnel. This design is based on a certain critical length of the tunnel.
