LED Tunnel Light Project in China

LED Tunnel Lighting project in China, which was finished in 2011. H Series LED Tunnel Light used in this project have a great lighting effect, which makes driving safer. Excellent modular design makes it easier to maintain. The angle adjustable mounting bracket ensures you could adjust the tunnel lighting fixture to illuminate any directions you need when installation. Equipped with high-end Meanwell/Inventronics drivers and Lumiled chips, H Series LED Light for tunnel has a long lifespan and high efficacy, which is trustable and energy saving. No failure feedback on this project was received by now.


Product Details

Products: 70W & 120W LED Tunnel Light

Model No.: ZGSM-SDD70WE, ZGSM-SDD120WE

LED: Lumileds Luxeon TX

Driver: Meanwell

CCT: 6500K

Optics: 120degrees

QTY: 699 Units

(Note: E series LED Tunnel Lights have been discontinued and replaced by H series.)


Products: 165W LED Street Light

Model No.: ZGSM-LLD150WF

LED: Lumileds Luxeon TX

Driver: Meanwell

CCT: 6500K

Optics: Type 1M

QTY: 24 Units

(Note: F series LED Street Lights have been discontinued and replaced by H series.)


Video

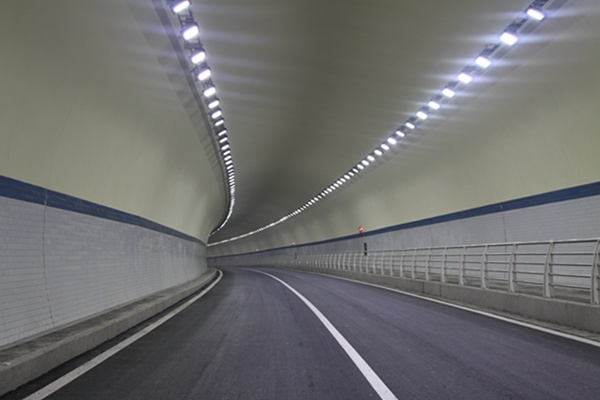

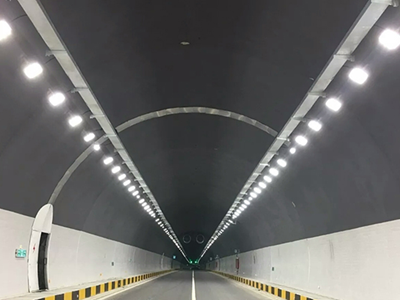

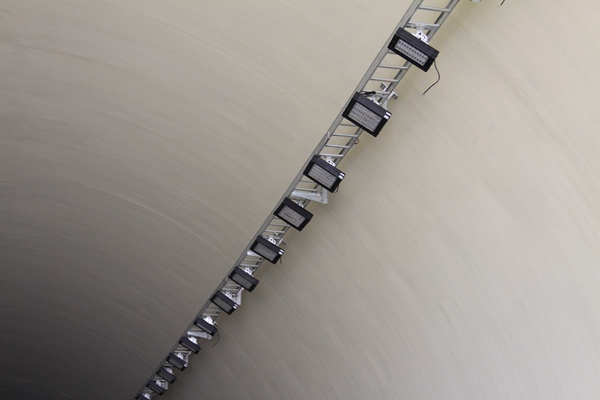

Project Photos


LED Tunnel Light in ChinaLED Tunnel Light in China


Specification


ModelZGSM-SDD120H6
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage120W
LED Module Quantity2 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-155 lm/w
Lamp Rated Lumen output15000-18600 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


Download


Installation Manual_HighBay&FloodLight&TunnelLight_HB.pdf

Data Sheet_TunnelLight_H.pdf


Related Products


LED Tunnel Light in ChinaLED Tunnel Light in ChinaLED Tunnel Light in China

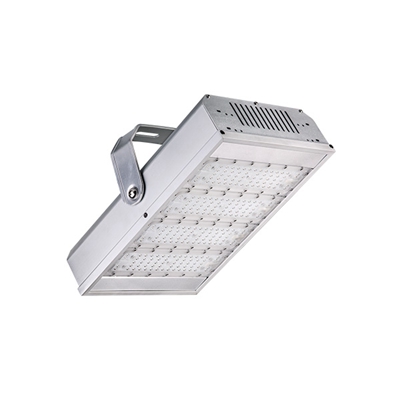

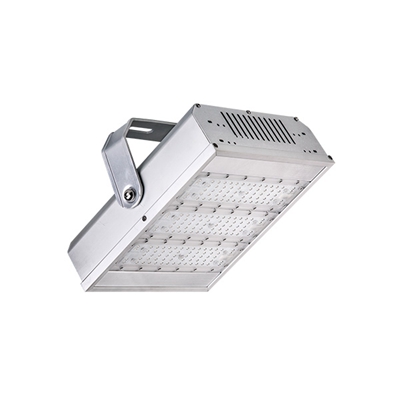

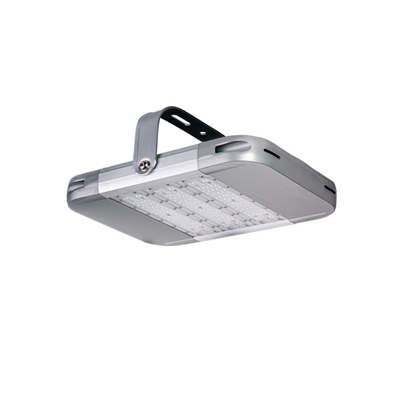

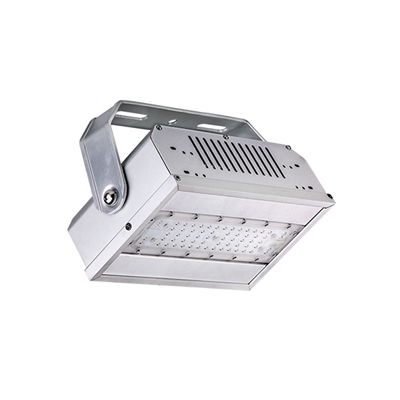

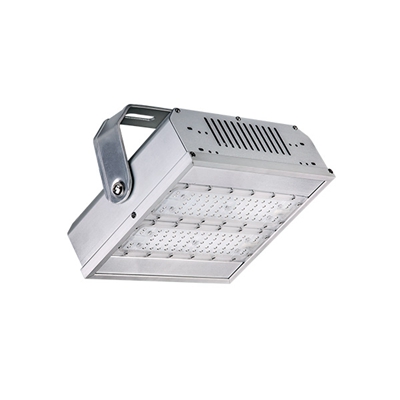

Competitive 60w Modular Design Tunnel Light120W LED Tunnel Lights180W Modular Design Tunnel Lighting Fixtures
LED Tunnel Light in ChinaLED Tunnel Light in ChinaLED Tunnel Light in China
IP66 IK10 180W Modular Design LED Tunnel Light
100W LED Tunnel Light With CE
150W IP66 Tunnel Light Manufacturers


Related Projects


LED Tunnel Light in China
LED Tunnel Light Project in Mexico


Related Blogs


LED Tunnel Light in ChinaLED Tunnel Light in ChinaLED Tunnel Light in China

Led Tunnel Lights Advantages

And Installation Precautions

LED Tunnel Lights In Tunnel Lighting

Application Advantages

LED Tunnel Light Energy Saving Project

Renovation Solution

LED Tunnel Light in ChinaLED Tunnel Light in ChinaLED Tunnel Light in China
What Are The Characteristics Of LED Tunnel Lights?How To Choose A Good LED High Bay Light?

What Is The Installation Distance

 Of LED High Bay Light?


People Also Ask



  1. What is LED Tunnel Light?

    LED tunnel light is used in large-area flood lighting in tunnels, workshops, large warehouses, venues, metallurgy and various factories, engineering construction, and other places. It is most suitable for urban landscapes, billboards, buildings, etc. Facade for landscaping lighting.


  2. What are the advantages of modular design?

    - Easy to maintain. It only needs to replace the broken module when one of LED modules is broken, convenient and cost effective.

    - Gaps between the modules will increase the thermal dissipation rate and solve the problem of dust deposition.

    - The LED modules could be used to different modular designed models and combined to different wattages you demand.

    - If one of modules  broke in the lamp, it won't affect other LED modules.


  3. What is the best choice: LED, fluorescent or CFL?

    LED lights have a mild dimming effect and do not flicker. LEDs also have the ability to turn on instantly in any setting and under any weather conditions. Fluorescent or compact fluorescent lights (CFLs), on the other hand, are not dimmable and frequently flicker.

    In the above quiz, you'll also find inside information about various LED light advantages. As a result, LED is clearly superior to fluorescent and CFL lighting.
