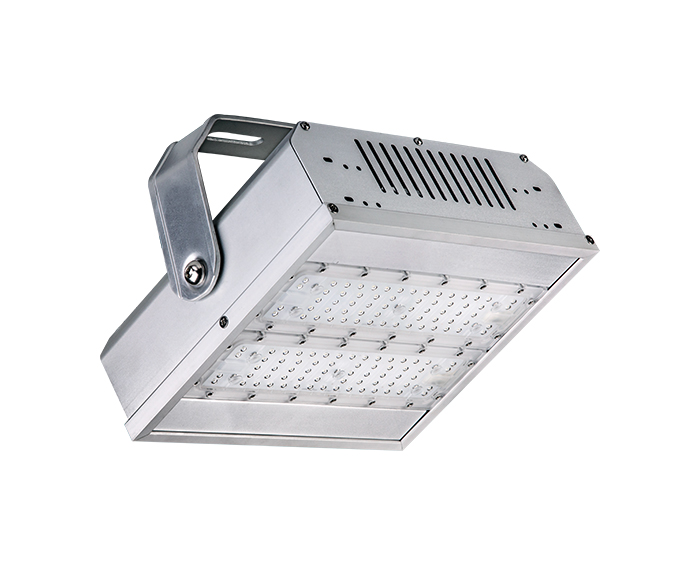

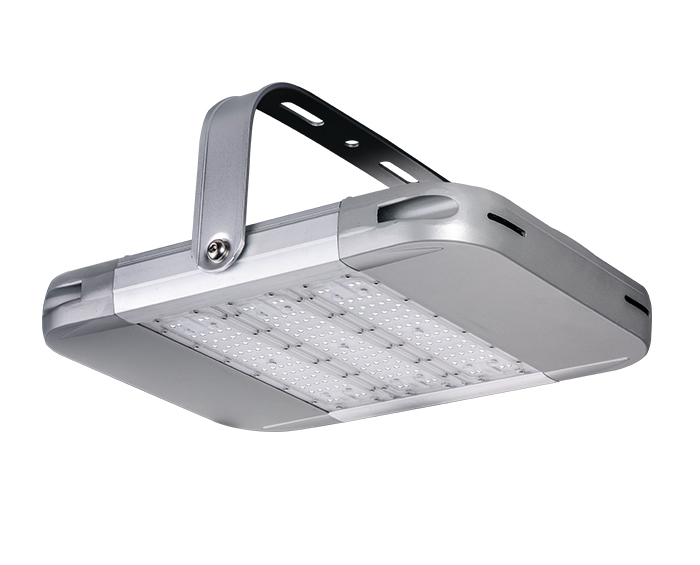

50w IP66 LED Tunnel Lights and Underpass Lighting

Good tunnel lighting allows users to enter and exit the tunnel safely and comfortably. In some cases, the positive contrast must be strengthened, usually in the exit area where the exit is visible. In these cases, the light distribution is asymmetrical. Efficient Tunnel Lights and Underpass Lighting with remote control system are your best choice, ZGSM professional LED luminaire manufacturers are worthy of your trust!

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~240W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

3. Modular design for easy installation, replacement and maintenance.

4. High Lumen output up to 165lm/ w with high quality LED chips.

5. Variety applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-SDD50H5
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage50W
LED Module Quantity1 module
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-160 lm/w
Lamp Rated Lumen output6500-8000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100, 000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

What is a tunnel light?

Good tunnel lighting ensures that the driver adapts to the light inside the tunnel at the tunnel entrance. It creates a safe driving environment by providing adequate lighting for the entire tunnel. The driver must enter the tunnel without any negative impact, pass through the tunnel and leave the tunnel.


What are the 5 areas of tunnel lighting?

Tunnel lighting is divided into five areas according to the design brightness: entrance area lighting, threshold area lighting, transition area lighting, interior area lighting, and exit area lighting. The lighting requirements for each area are different.
