LED Tunnel Light

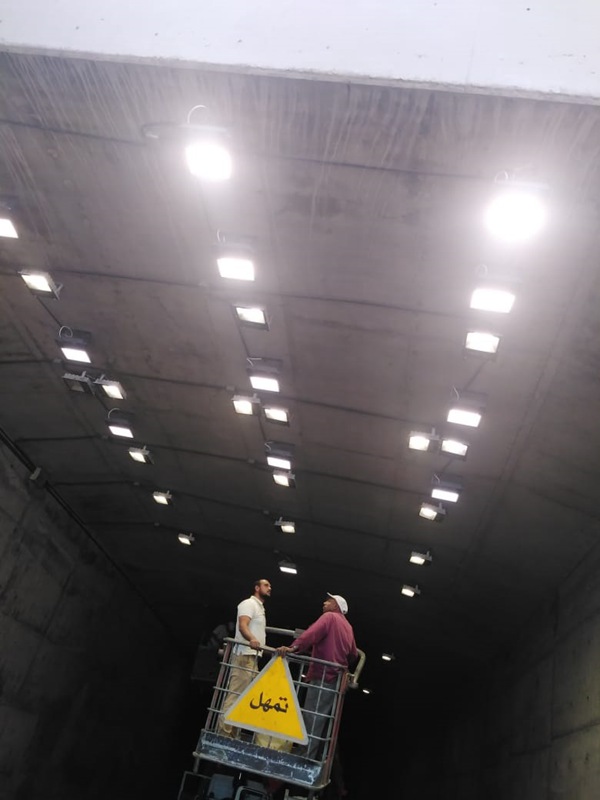

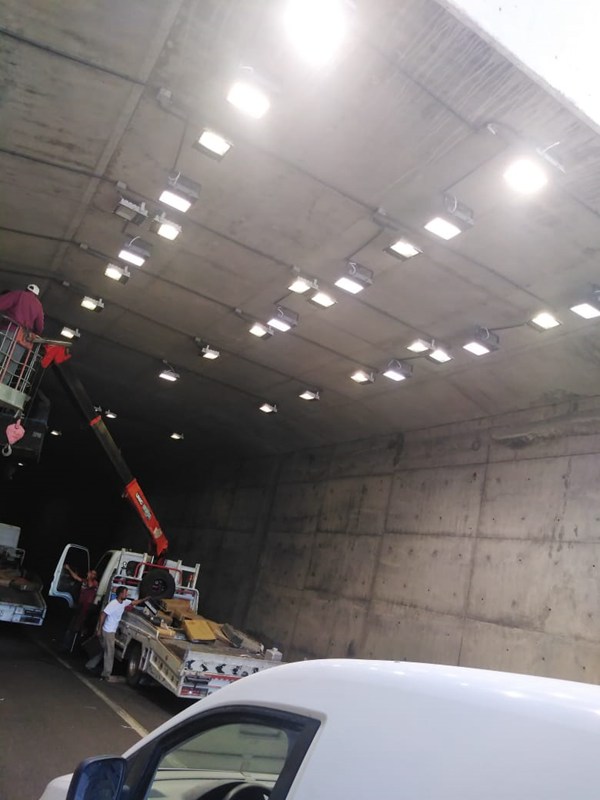

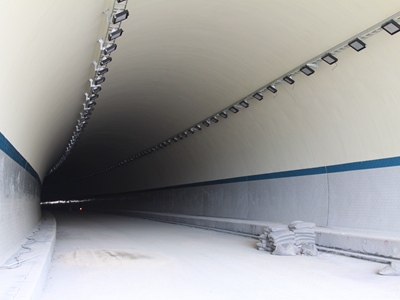

The LED tunnel lighting project in Jordan was completed in 2021. After the DIALux lighting design, we provided a solution of installing 250 units of 100W Zoom series LED Flood Lights with 155lm/W in this tunnel. The client is satisfied with the light effect of this new tunnel. The Zoom series LED Flood Light is designed and manufactured by ZGSM, a China manufacturer focusing on LED lights for over 17 years. The angle-adjustable bracket design makes Zoom series could be used as LED floodlights, LED high bay lights, LED tunnel lights, LED high mast lights, and so on. It could be applied to tunnel lighting, warehouse lighting, workshop lighting, stadium lighting, square lighting, etc.

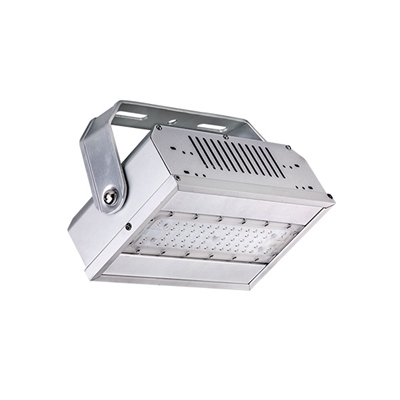

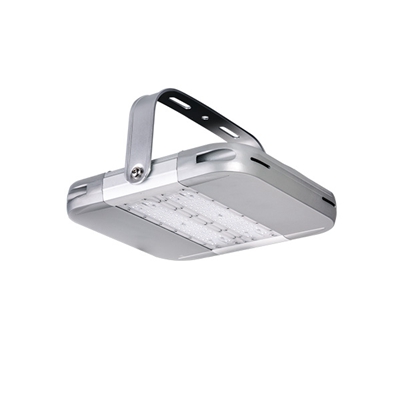

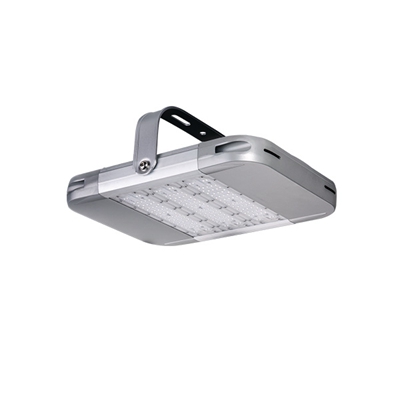

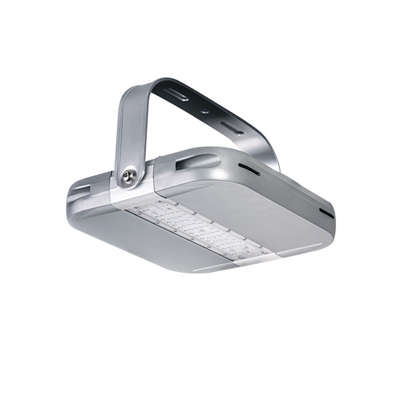

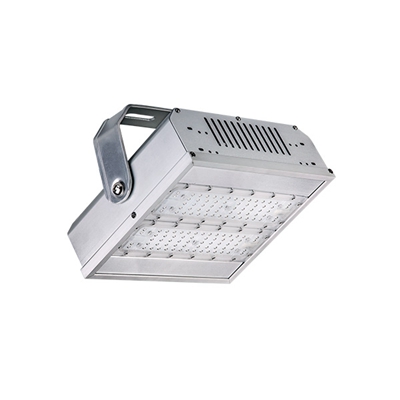

Products: 100W Zoom Series LED Flood Light
Model No.: ZGSM-FL07-100M
LED: Lumileds 5050
Driver: Inventronics
CCT: 4000K
Optics: 90D55016
QTY: 250 Units
| Model | ZGSM-FL07-100M |
| LED Brand | LUMILEDS 3030 OR 5050 |
| Driver Brand | Inventronics (Default) / Other brands on request |
| Normal Wattage | 100W |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 145-155lm/w |
| Lamp Rated Lumen output | 14500-15500 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K, 5700K |
| Photometric Type | 25°, 60°, 90°, 120°, or Asymmetrical |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | High-pressure die-cast aluminum |
| Cover | Tempered glass |
| Rating | IP66, IK09 |
| Protection | Class I (Default) /Class II |
| Certification | CE, RoHS, ENEC, CB, LM79, LM80, TM-21 |
| Dimming Options | 1-10V Dimming (Default) /Timer Dimming |
| Control Options | Photocell, Motion sensor |
| Color Options | Gray (Default) /Black (available on request) |
| Warranty | 5 years |
Installation Manual_FloodLight_Zoom.pdf
Data Sheet_FloodLight_Zoom.pdf
 |  |  |
| What Are The Characteristics Of LED Tunnel Lights? | LED Tunnel Light In Lighting Application Advantages | |
 |  |  |
LED tunnel light is used in large-area flood lighting in tunnels, workshops, large warehouses, venues, metallurgy and various factories, engineering construction, and other places. It is most suitable for urban landscapes, billboards, buildings, etc. Facade for landscaping lighting.
Tunnel lighting is required to address the issue of the tunnel's atmosphere abruptly adapting. The adaptation of the inside and outside brightness for the person entering or exiting the tunnel must be balanced. This design is based on the tunnel's critical length.

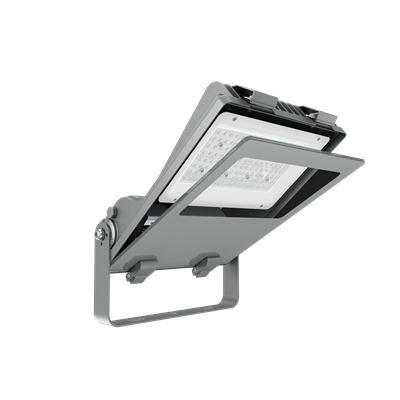

We have different kinds of LED floodlights called H series, HB series, Zoom series, Stellar series, which power ranges from 10W to 1000W.
More details about our LED flood lamps, pls kindly check page products or contact us.
