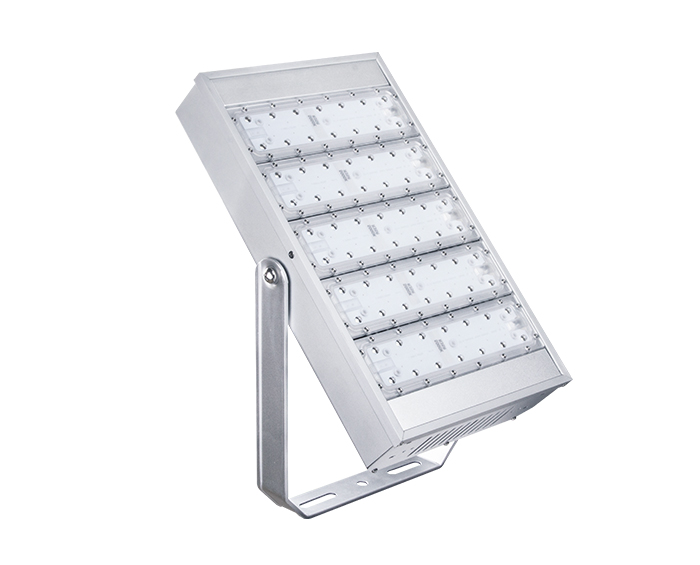

CE UL approved IP66 LED Flood Light 200W

IP66 LED Flood Light 200w adopts modular design, efficient heat dissipation, multi-angle spectrum optional, 360° adjustable bracket to meet any installation angle, and IP66 waterproof rating allows you to use in outdoor environments with confidence. We also have other products with modular designs, welcome to purchase.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

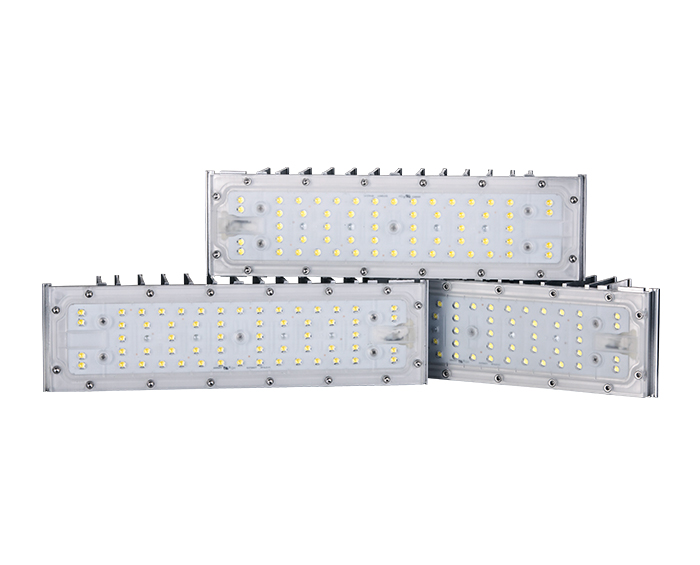

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-FGD200H
LED BrandLumileds LUXEON® TX
Driver BrandMeanwell HLG series
Normal Wattage200W
LED Module Quantity5 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110 lm/w
Lamp Rated Lumen output22000 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, GS, CB, UL, cUL, DLC, LM-79
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

What is the IP66 rating of the lighting?

IP66 means that the product is completely dustproof and protects against high-pressure water jets from any direction. The IP67 lamp is completely protected against solid particles and can be immersed in water for 1m for up to 30 minutes. The IP66-rated enclosure has a rugged design and construction for general outdoor use. The IP66-rated enclosure provides excellent performance for many environments, including outdoor safety devices.


What are the benefits of floodlights?

Here are the 5 benefits of user installation of LED floodlights and flood light fixtures:

  1. Longevity. LED floodlights are robust, durable, and long-lasting.

  2. Energy-efficient.

  3. Controlled heat dissipation.

  4. Environmentally friendly.

  5. Cost-effective.
