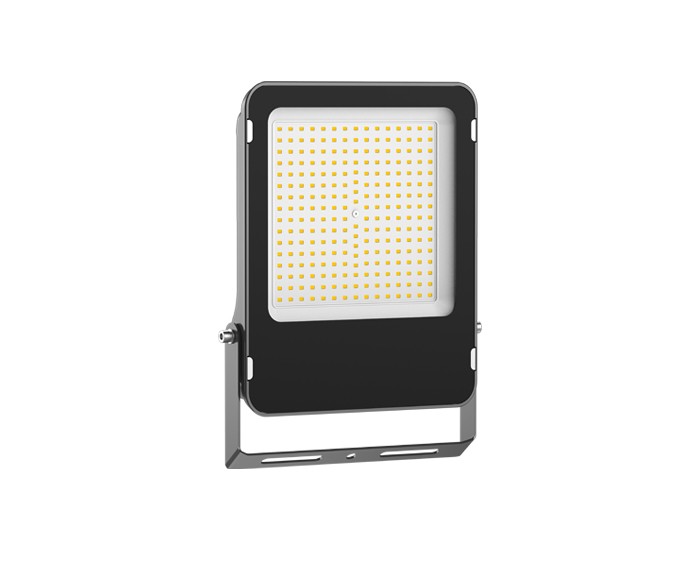

Series FL12 LED Floodlights With CCT & Power Selection

The FL12 series LED floodlights support dual mode selection for power and color temperature (CCT & POWER). The power can be adjusted between 100%, 80%, and 60% using the power switch, while offering three color temperature options (3000K warm white light / 4000K neutral light / 5700K cool white light). This feature allows users to precisely and flexibly adjust brightness and color temperature according to the specific lighting conditions of the scene, without the need to replace the fixture. This feature endows the luminaire with high adaptability, significantly reducing operating costs.

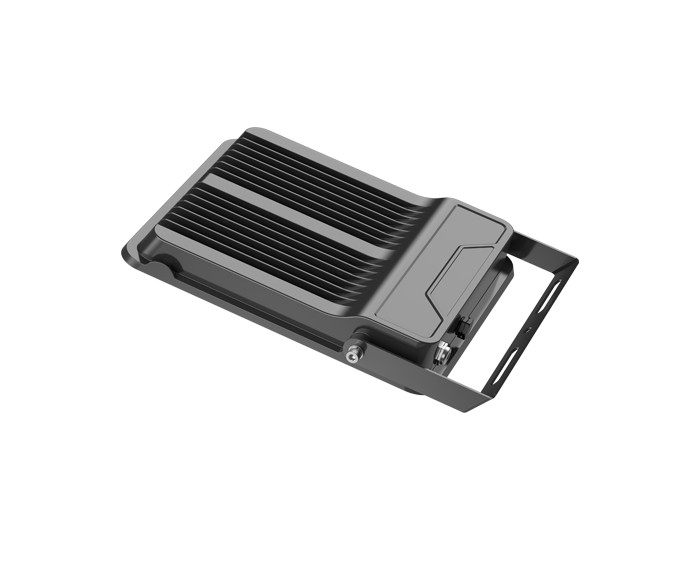

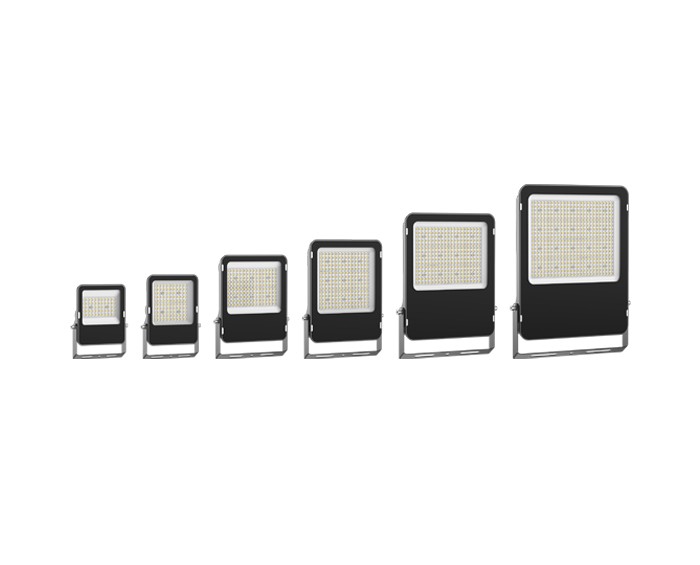

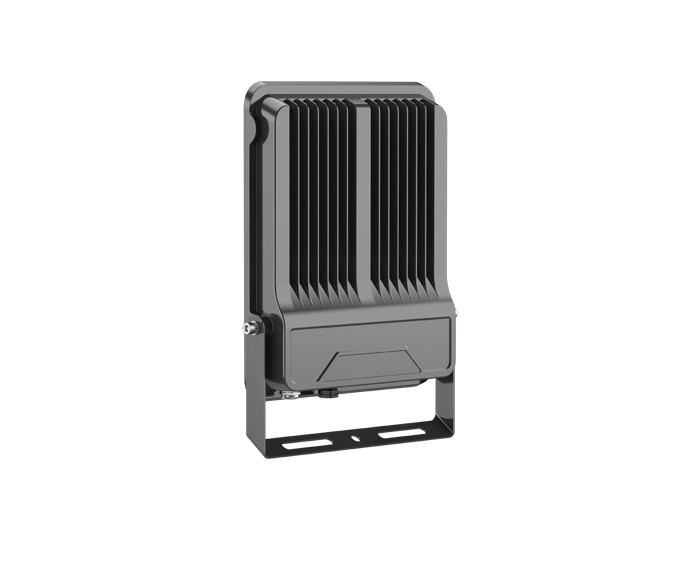

The FL12 series LED floodlights use a sturdy and durable die-cast aluminum housing, with excellent heat dissipation performance. The front of the fixture is equipped with a 4mm thick tempered glass cover, which is impact-resistant and wear-resistant, effectively protecting the internal components. The FL12 series LED floodlights have a power range of 30W-300W, meeting the lighting needs of different scenarios and site sizes.

Inquire Now Produit suivant

Key Features

Watts: 30W, 50W, 100W, 150W, 200W, 240W, 300W
Light Efficiency up to 140lm/w
Integrated LED driver
IP66 protection and IK08 resistance
SMD (Beam Angle 120° only) With Optic Lens (Beam Angle 25°/45°/60°/90°/70×150°)
Optimized housing with economic prices
Available for Power & CCT selectable

Specifications

Model	ZGSM FL12 LED floodlights
Power	30W, 50W, 100W, 150W, 200W, 240W, 300W
Efficacy	140lm/W
Input Voltage	AC100-277V, 50/60Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request) with IEC61643-11
IP Rating	IP66
IK Rating	IK08
CCT	3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra≥70
Operating Temperature	-25°C ~ +40°C
Beam Angle	SMD (Beam Angle 120° only) \| With Optic Lens (Beam Angle 25°/45°/60°/90°/70x150°)
Warranty	5 Years
Certification	CE, ROHS, IP66, IK08, LM80, TM-21

FAQ

What are LED floodlights that supports dual-mode selection of power and color temperature (CCT & POWER)?

LED floodlights that supports dual-mode selection of power and color temperature (CCT & POWER) is essentially a hardware-adjustable smart luminaire. It allows you to independently adjust the brightness (power) and color (color temperature) of the light before installation or use via physical switches (such as DIP switches), enabling a single light to adapt to various application scenarios. This functionality is typically achieved through internal DIP switches or jumper caps, a hardware-level configuration, rather than the ability to adjust via a mobile app.

What is the difference between LED Floodlights With CCT & POWER Selection and regular floodlights?

Features	Ordinary LED Floodlight	Dual-mode Adjustable Floodlight
Flexibility	Factory-fixed, cannot be changed	Multi-purpose, can be switched according to season or task
Inventory Management	Requires stocking multiple specifications (e.g., 50W warm white, 100W cool white)	Only one model needs to be stocked, reducing inventory pressure
Energy Efficiency	Cannot automatically reduce power according to time of day	Can be set to a low-power mode at night for energy saving
Adjustment Method	None	Typically manual DIP switch
