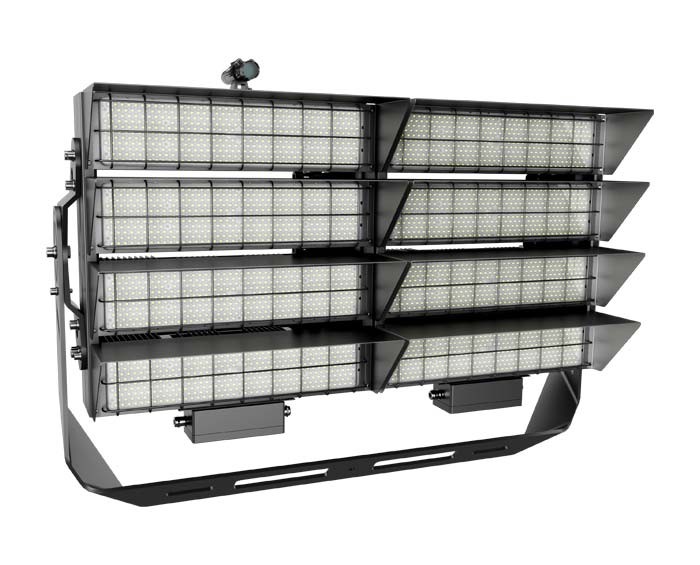

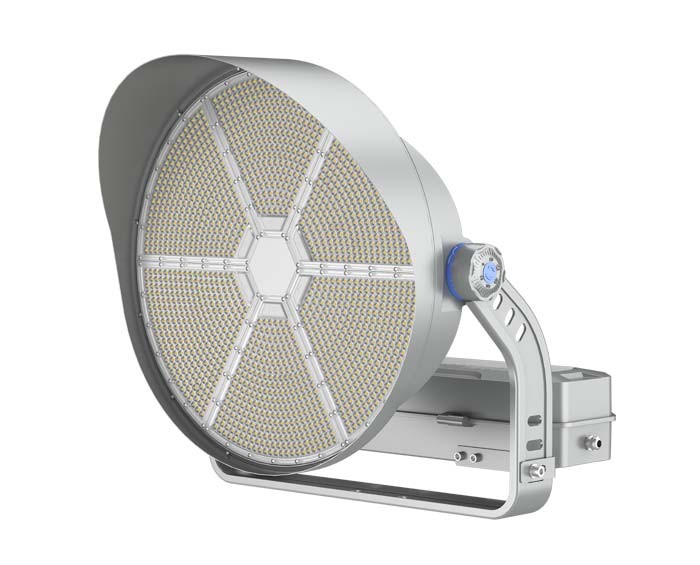

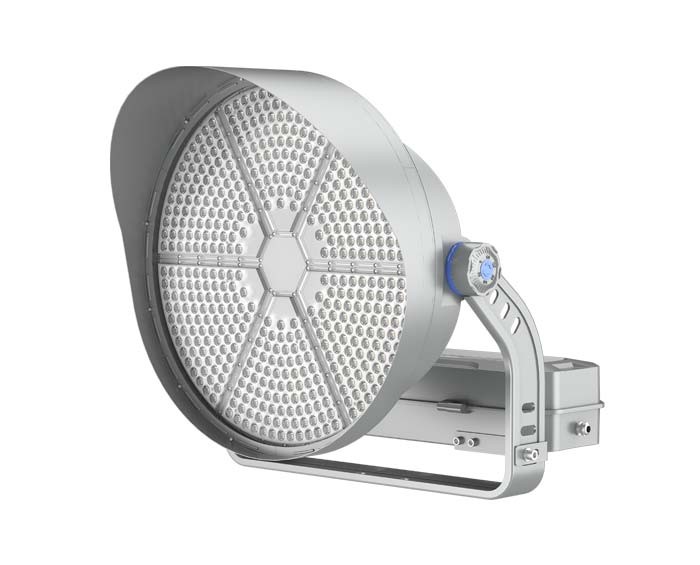

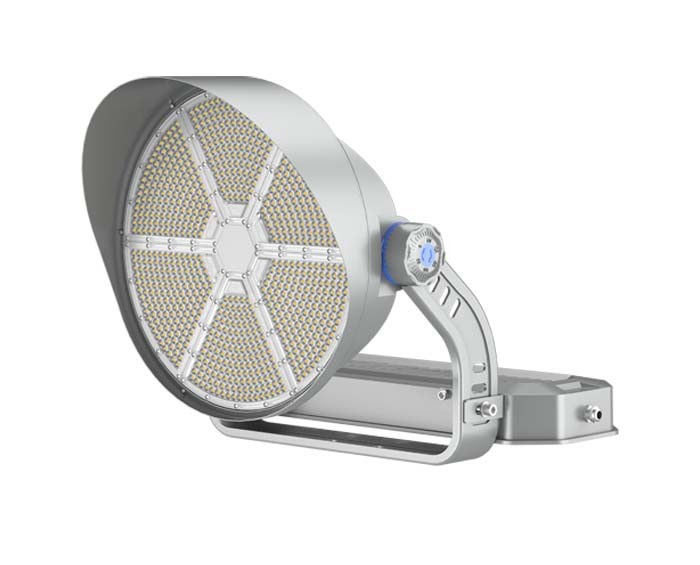

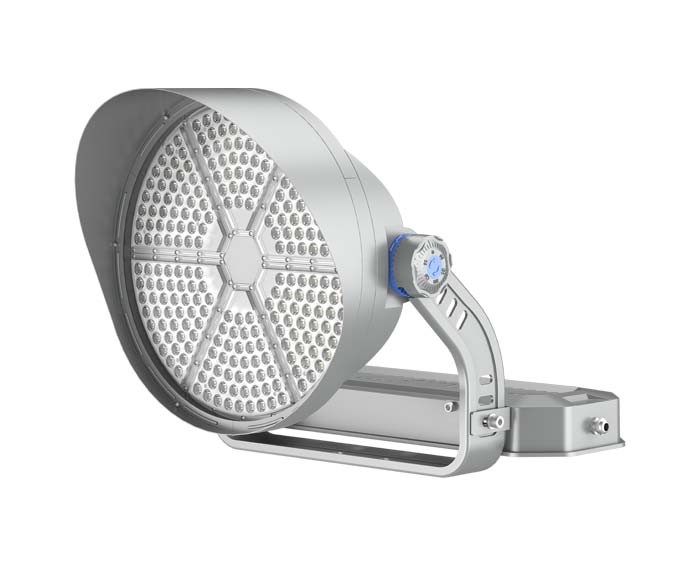

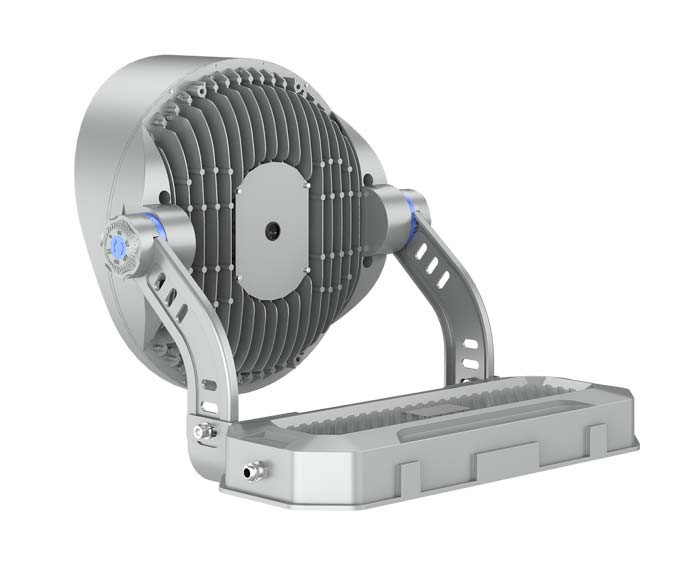

Series FL10 Football Field Lights

The FL10 series LED football field lights feature a split driver box design, making installation and maintenance extremely easy. Comfortable optical components provide a larger luminous surface area, thereby reducing glare. With multiple beam angles: 10°, 15°, 25°, 45°, 60° and 90° available, these high-efficiency football field lights have many commercial applications and are suitable for large stadiums, airports, docks and other scenes. Energy-saving LED sports lighting fixtures can significantly improve the quality of live events while reducing monthly expenses.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Power options: 400W, 500W, 600W, 800W, 1000W, 1200W

2. High luminous efficacy: Up to 150lm/W±5%

3. IK08 rating, IP66 waterproof

4. Long lifespan: 10,0000 hours

5. High CRI and high TLCI for choice

6. Multiple Beam Angles: 10°, 15°, 25°, 45°, 60°, and 90° for options

7. Optional: Tempered glass, DALI driver

8. Tool-less LED driver box design which can be remotely mounted

Specifications

Model No.	ZGSM-FL10-400/500/600	ZGSM-FL10-800/1000/1200
Power	400W/500W/600W	800W/1000W/1200W
CCT	1800K-6500K	1800K-6500K
Lighting Efficacy	150lm/W±5%	150lm/W±5%
Lumen Flux	60000LM/75000LM/90000LM	120000LM/150000LM/180000LM
LED Brand	LUMILEDS	LUMILEDS
Qty of LED	3030-714PCS 3737-240PCS	3030-1540PCS 3737-504PCS
Beam Angle	3737 For 10°/15° 3030 For 25°/45°/60°/90°	3737 For 10°/15° 3030 For 25°/45°/60°/90°
Driver	SOSEN/MOSO	SOSEN/MOSO
Input Voltage	AC 100-240V /277V \| 50 /60Hz	AC 100-240V /277V \| 50 /60Hz
Power Factor	>0.95	>0.95
SPD	10KV (Default) /20KV on request	10KV (Default) /20KV on request
THD	<15%	<15%
Driver Efficiency	>92%	>92%
IP Rating	IP66	IP66
Lifespan	100,000Hrs	100,000Hrs
Housing	Die-Cast Aluminum	Die-Cast Aluminum
Cover Material	PC lens, Glass (Optional)	PC lens, Glass (Optional)
Fixture Size	521511393mm	680660442mm
Carton Size	710675355mm	885730440mm
Net Weight	20.05KG	33.30KG
Gross Weight	22.22KG	38.10KG

FAQ

What lumens are used for lighting a football field?

LED stadium lights start at around 60,000 lumens, replacing a 1500-watt metal halide lamp, and can reach an average of 150,000 lumens. Lumens are the amount of light emitted by a fixture, as opposed to the light on the ground (called foot-candles). A standard football field is 360 feet long and 160 feet wide, equivalent to 57,600 square feet. Please determine the level of competition. For professional-level games, at least 1,000 lumens per square foot is required. For high school or amateur-level games, 400-600 lumens per square foot is acceptable.

What type of lighting is used in football fields?

Football Field Lights has become mainstream. Modern football lighting utilizes high-powered LED fixtures to provide ample, even illumination across the field for optimal visibility.
