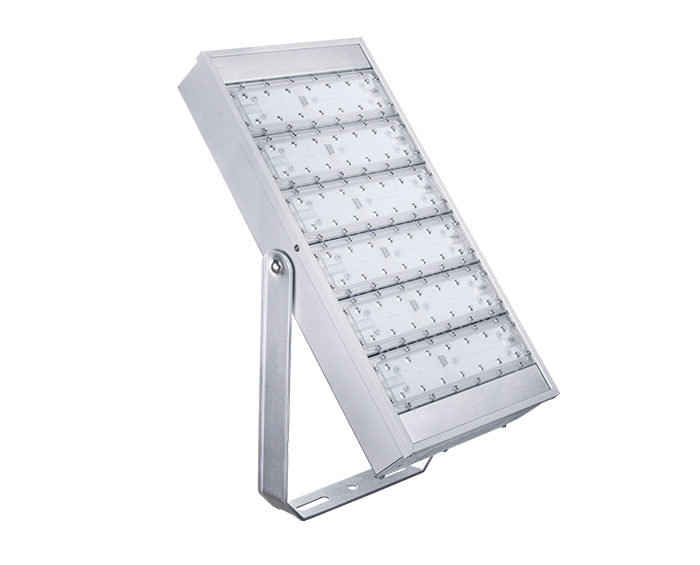

CE UL approved 240w IP66 led outside flood lights

CE UL approved 240w IP66 led outside floodlights, not only can be used as a floodlight but also can be used as a stadium light, high mast light, modular design is convenient for maintenance, 360° rotatable bracket can adjust the installation angle.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

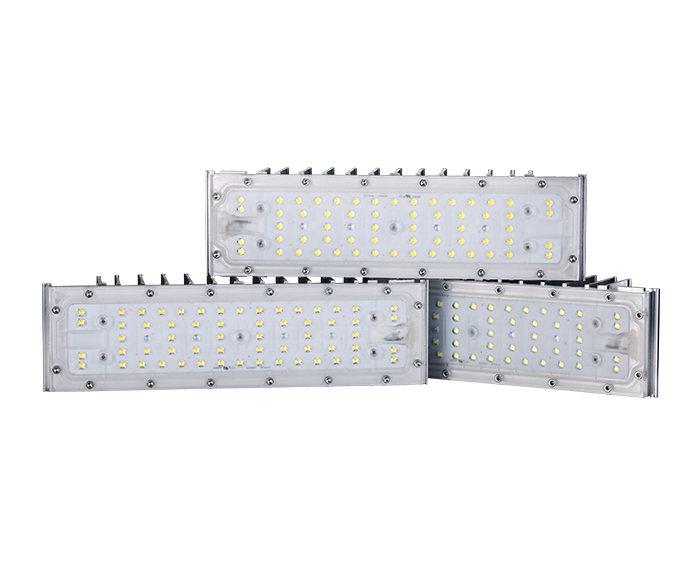

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.

Specifications

Model	ZGSM-FGD240HB
LED Brand	Lumileds LUXEON® TX
Driver Brand	Meanwell HLG series
Normal Wattage	240W
LED Module Quantity	6 modules
Input Voltage	100-240/277/347/480VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	>110 lm/w
Lamp Rated Lumen output	26400 lm (Lumen tolerance +/- 5%)
Color Rendering Index	Ra>70
Color Temperature	3000K, 4000K, 5000K, or 5700K
Photometric Type	60,90,110 degrees
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Body	Stretching Aluminum
Cover	PC lens
Rating	IP66 IK10
Protection	Class I ( Class II optional)
Certification	CE, ROHS, GS, CB, UL, cUL, DLC, LM-79
Dimming Options	1-10V or DALI or PWM or Timer
Control Options	Motion sensor or Smart control
Color Options	Silver
Warranty	7 years

FAQ

What illuminates the football field?

Floodlights have a beam range of up to 120 degrees. It can illuminate larger spaces with the same wattage and lumen output as spotlights. Therefore, it is widely used in football stadiums and stadiums.

What are floodlights used for?

As the name suggests, floodlights are used to illuminate an area. This is the best way to provide a large amount of unnatural light to an area. LED floodlights are energy efficient and have a higher lumens per watt output than any other traditional lighting system.
