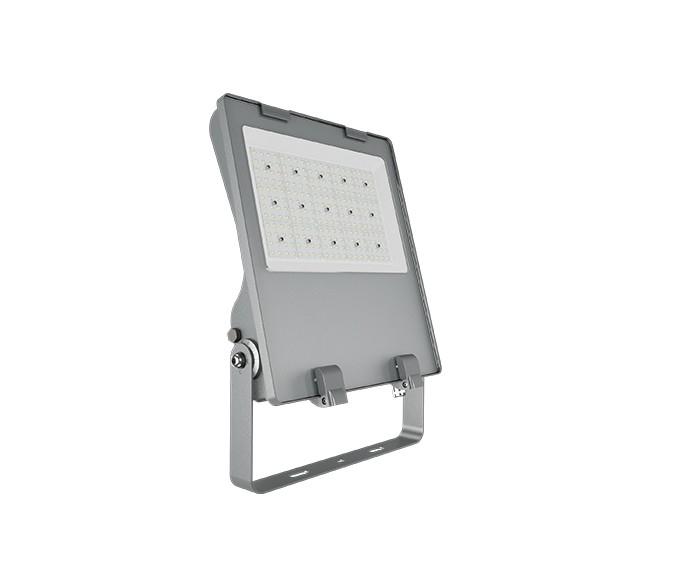

Modular Design LED Flood Light
Series H5 LED Flood Light
Model:
ZGSM-FGD300H5
Application：
Warehouse | Workshop | Billboard | Area | Building
300w led flood light, commercial flood lights, led outdoor flood light, ip66 led flood light, led stadium flood light
300w led flood light, commercial flood lights, led outdoor flood light, ip66 led flood light, led stadium flood light
1. Wide power range: 40W~360W.
2. Special circuit design, single LED’s damage won't affect others' normal work.
3. High Lumen output up to 165lm/ w with high quality LED chips.
4. Various applications with different mounting Accessories.
5. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.
6. Designed to last at least 100, 000 hours at L70.
7. Multiple lighting distributions are available.
300w led flood light, commercial flood lights, led outdoor flood light, ip66 led flood light, led stadium flood light
| Model | ZGSM-FGD300H5 |
| LED Brand | Lumileds LUXEON 3030/5050 |
| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 300W |
| LED Module Quantity | 6 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 130-160 lm/w |
| Lamp Rated Lumen output | 39000-48000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Die-cast aluminum Housing |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE,ROHS,LM80 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
300w led flood light, commercial flood lights, led outdoor flood light, ip66 led flood light, led stadium flood light
| Fixture Dimension | 658 x340 x156 mm |
| Fixture Weight | 7.8 kg /17.2 lbs |
| Packing Dimension | 705 x365 x160 mm |
| Packing Weight | 9.0 kg /19.8 lbs |

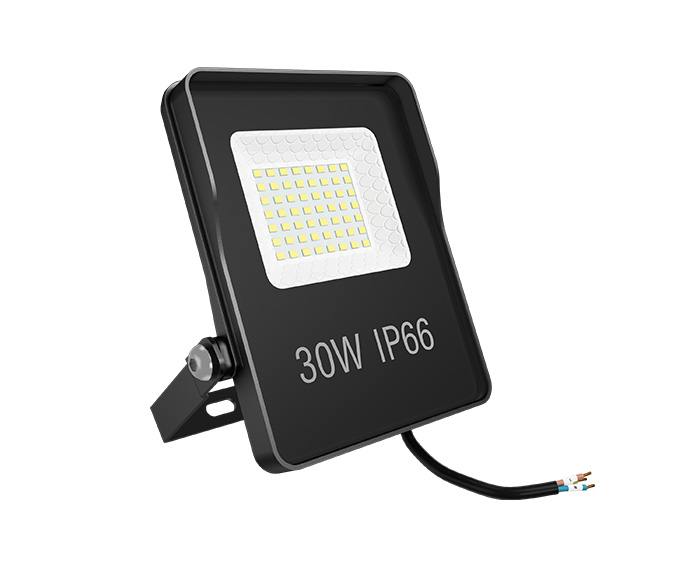

Tempered Glass 30w led floodlight
