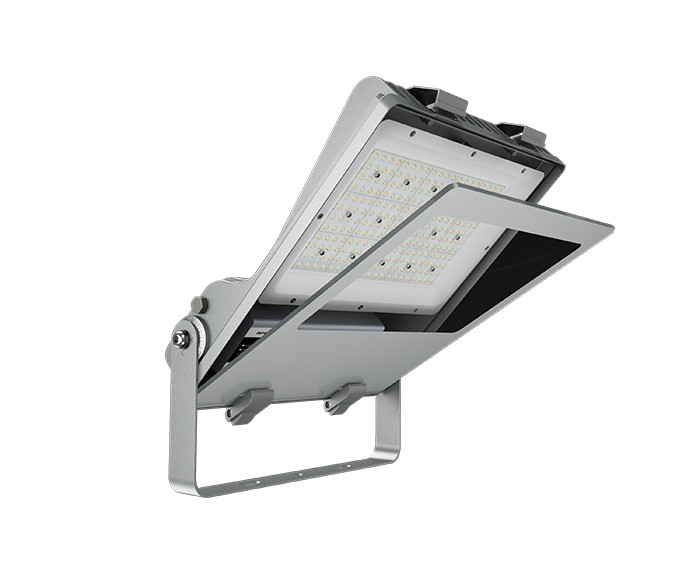

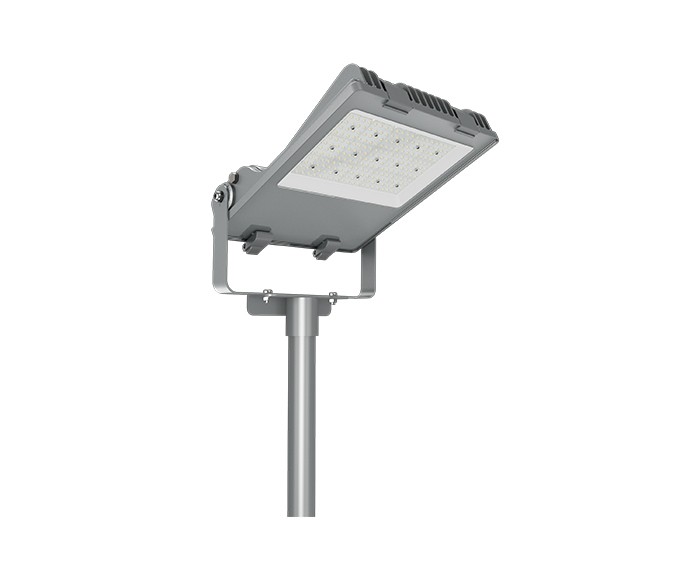

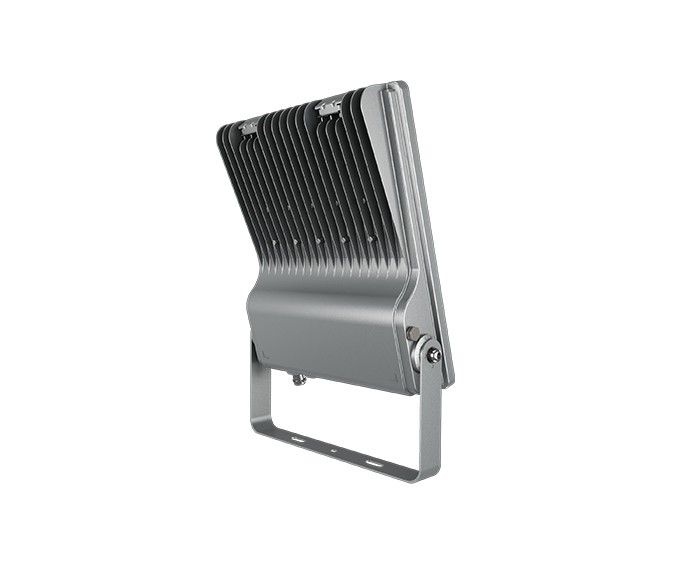

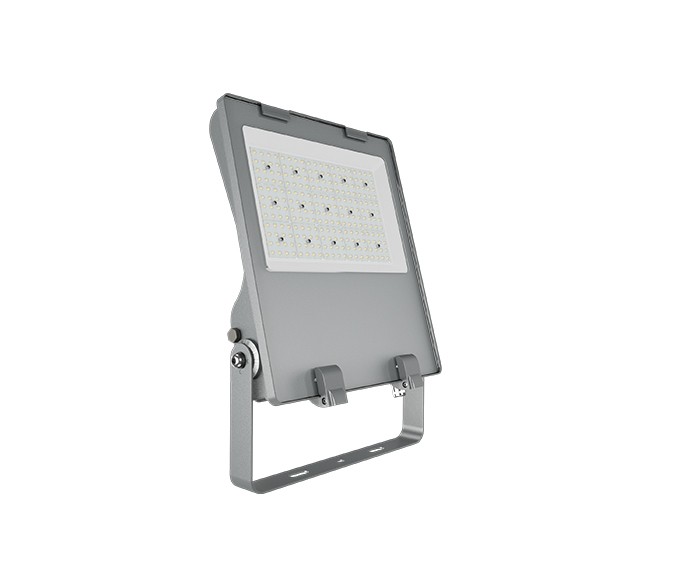

120W Outdoor Flood Light Fixtures

When you have a business, warehouse, or commercial space, Outdoor Flood Light Fixtures are an effective way to protect that area and ensure that it remains brightly lit day and night. Ideal for parking lots or countless other outdoor spaces, these commercial LED floodlights offer bright lighting and a variety of options.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Up to 100, 000hrs @ L70, low maintenance cost

2. World-class, approbated quality components (LEDs /Driver /etc.)

3. Equip with vent to avoid internal fogging and frosting

4. Wide choice of optics to suit more applications (asymmetrical and symmetrical)

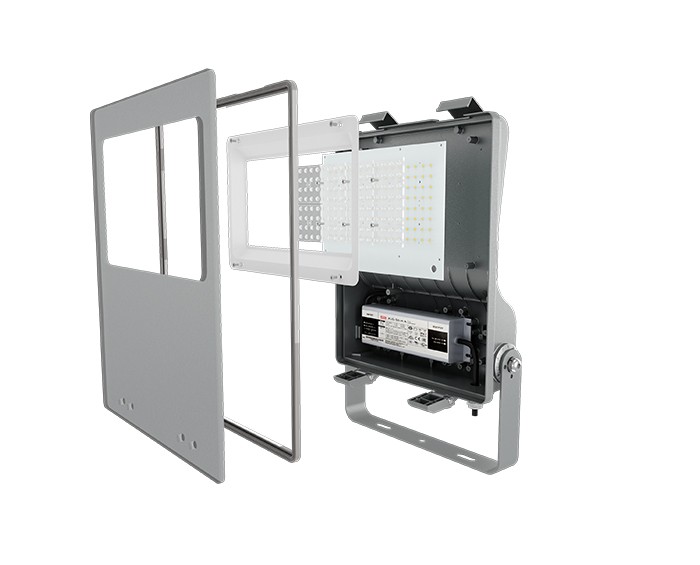

5. Buckle design makes it very easy for further maintenance

6. 5 years warranty

Specifications

Model	ZGSM-FL07-120M
LED Brand	LUMILEDS 3030 OR 5050
Driver Brand	Inventronics (Default) / Other brands on request
Normal Wattage	120W
Input Voltage	100-240/277VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	145-155lm/w
Lamp Rated Lumen output	17400-18600 lm (Lumen tolerance +/- 5%)
Color Rendering Index	70 (80 is optional)
Color Temperature	3000K, 4000K, 5000K, 5700K
Photometric Type	25°, 60°, 90°, 120°, or Asymmetrical
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Body	High-pressure die-cast aluminum
Cover	Tempered glass
Rating	IP66, IK09
Protection	Class I (Default) /Class II
Certification	CE, RoHS, ENEC, CB, LM79, LM80, TM-21
Dimming Options	1-10V Dimming (Default) /Timer Dimming
Control Options	Photocell, Motion sensor
Color Options	Gray (Default) /Black (available on request)
Warranty	5 years

FAQ

How do I replace an outdoor floodlight?

Select the location of the floodlight.

Turn off the power.
Remove an existing luminaire.
Wiring and installing a replacement floodlight.
Install floodlights in the new area.
Sealed junction box.
Test and troubleshoot floodlights.

What are floodlights used for?

As the name suggests, floodlights are used to illuminate an area. This is the best way to provide a large amount of unnatural light to an area. LED floodlights are energy efficient and have a higher lumens per watt output than any other traditional lighting system.
