LED Canopy Light

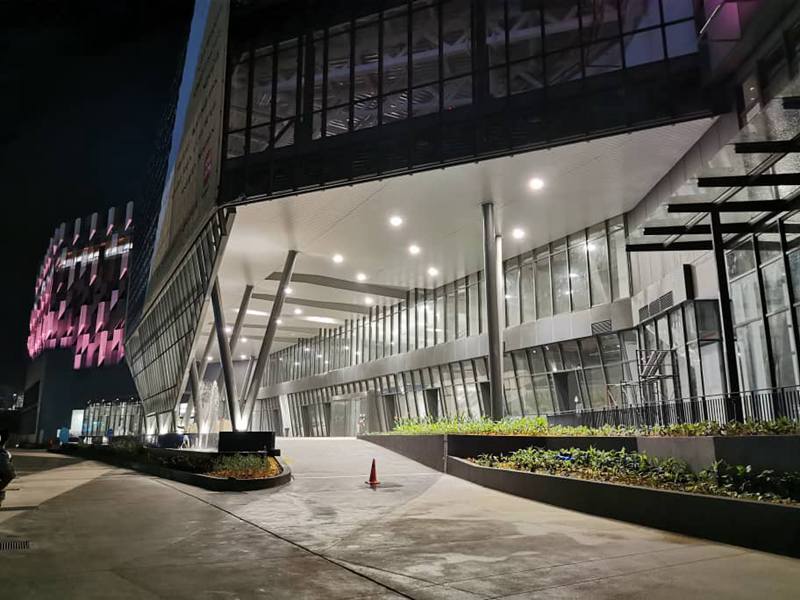

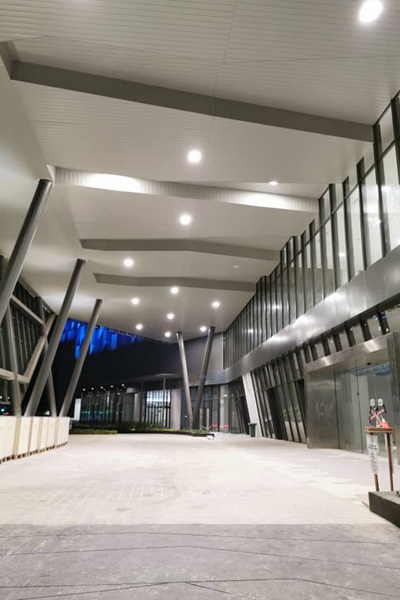

The office building lighting project in Malaysia was finished in 2019. This project is equipped with ZGSM 160W H series LED canopy light fixtures. This excellent designed model could not only be recessed mounted or surface mounted as a gas station light or ceiling light, but also be bracket mounted as a LED high bay light or floodlight. Waterproof design, which is IP66 & IK10 certified, makes it available for both indoor and outdoor lighting projects.
Product: 160W LED Canopy Light Fixture
Model No.: ZGSM-QD160H4
LED: Lumileds 3030
Driver: Meanwell
CCT: 3000K
Optics: 60 degrees
QTY: 25 Units.
| Model | ZGSM-QD160H4 |
| LED Brand | Lumileds LUXEON 3030/5050 |
| Driver Brand | Meanwell HLG series |
| Normal Wattage | 160W |
| LED Module Quantity | 4 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 140-165 lm/w |
| Lamp Rated Lumen output | 22400-26400 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Stretching Aluminum |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE, ROHS, LM80, ATEX |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
Installation Manual_CanopyLightforGasStationLighting_H.pdf
Data Sheet_CanopyLightforGasStationLighting_H.pdf
 |  |  |
 |  |  |
| Why Are LED Flood Light Popular In The Market? | How to choose LED Gas Station Lights? | The Main Application Areas Of LED Flood Light |

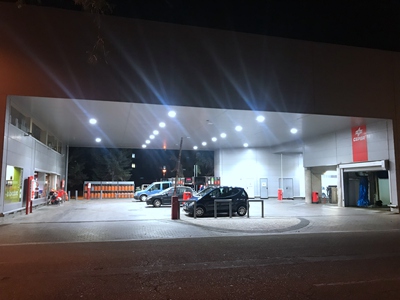

For commercial outdoor applications, LED canopy lights are surface mounted or recessed fixed ceiling lights. LED canopy lights provide security and ambient illumination for parking garages, petrol stations, and covered pathways.
Many aspects, such as canopy type, ceiling height, number of pumps, area layout, and ambient light, influence why and which led light fixture to purchase, based on the application and purpose of what you're lighting.
From the road, potential buyers will notice your canopy illumination first. Customers, particularly females, would typically pull into the brightest station they feel safe in to pump gas at night, making commercial outdoor lighting fixtures one of the most critical considerations in recruiting business.
Led canopy lights provide a bright, clear light that enhances the appearance of your petrol station canopy and forecourt. One of the quickest and simplest changes you can make to your ceiling canopy is to install outdoor led lighting.
The canopy length from inner leg to inside leg is the first measurement you'll need. Second, take a measurement from the inside leg to the inside leg of the canopy. The most crucial measurement is the final one, as it has the largest variation and frequently distinguishes one manufacturer from another.
