LED Gas Station Light

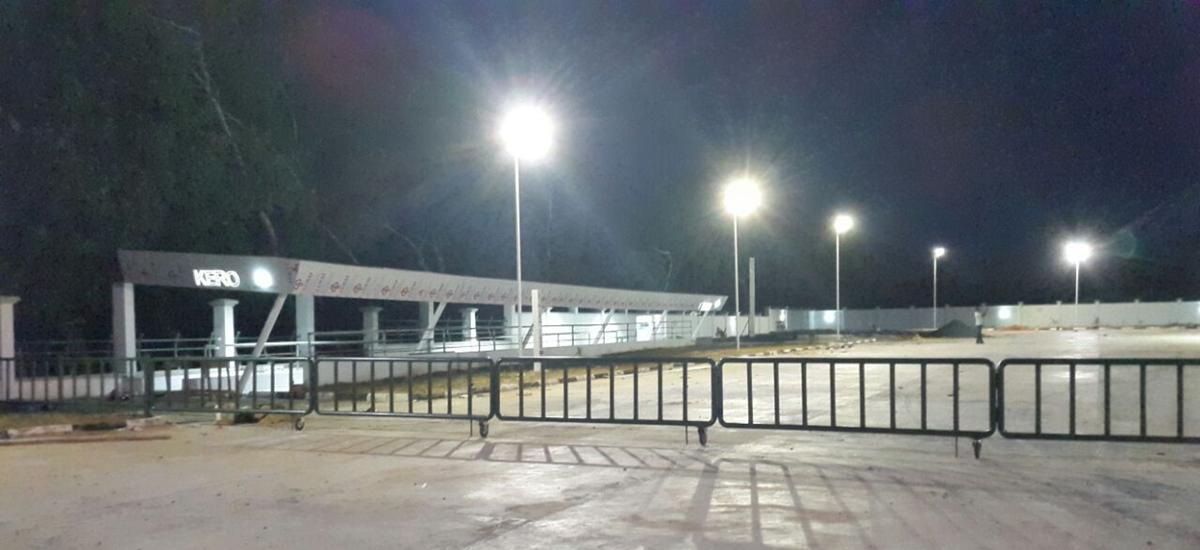

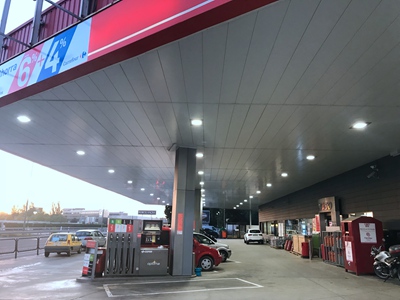

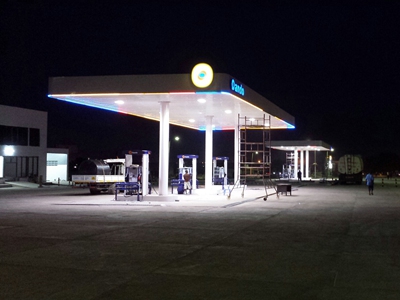

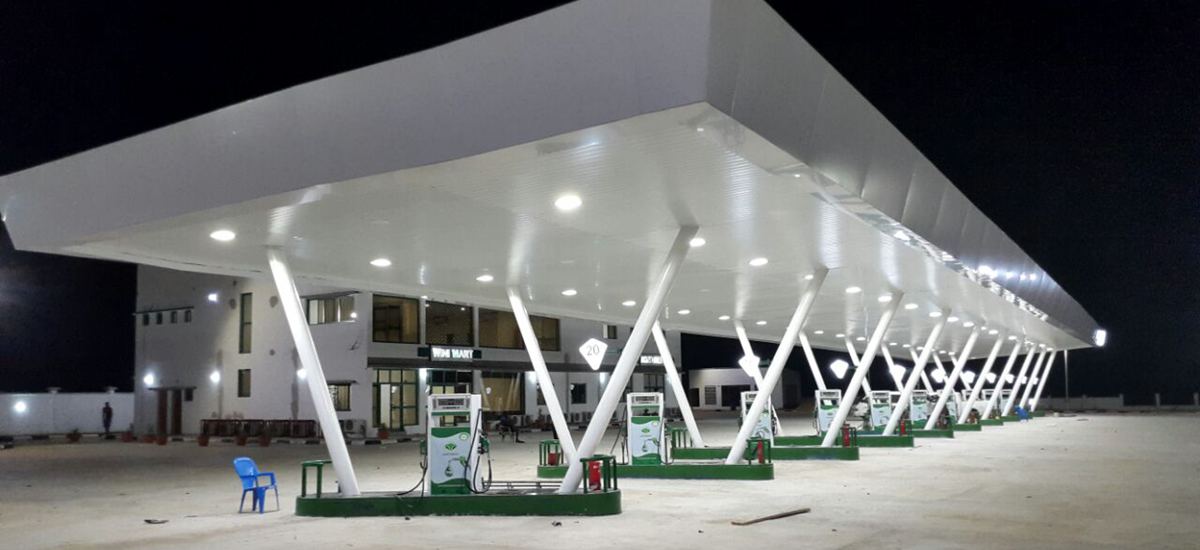

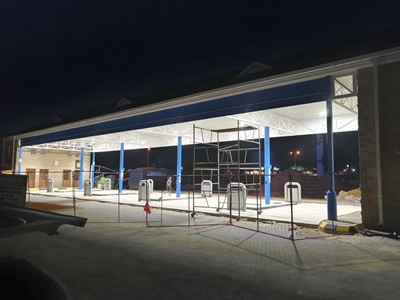

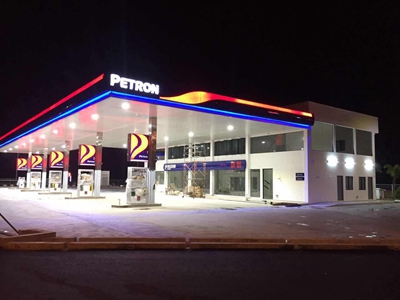

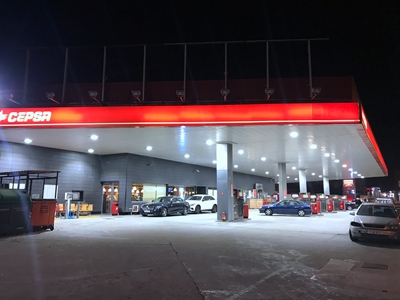

LED gas station lighting project in Nigeria, using ZGSM manufactured H Series LED Gas Station Lights, was finished in 2016. High end Lumileds chips provide H Series LED Canopy Lights with a high efficacy up to 165lm/W. Equipped with Inventronics dimmable drivers and motion sensors, these canopy LED lamps could work under 30% power when no persons and turn to 100% power if sensing cars coming, saving more energy. Explosion-proof design, which is ATEX certified, makes it safe to work in some specific places such as petrol station, oil depot, fireworks workshop, Coal stacking areas and other flammable and dusty environments.

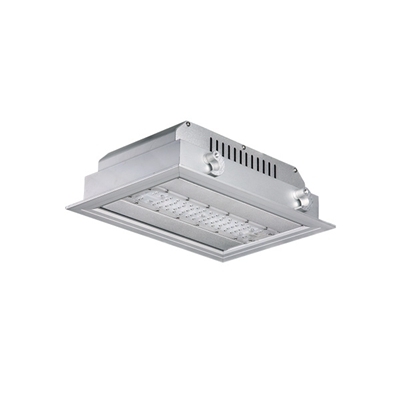

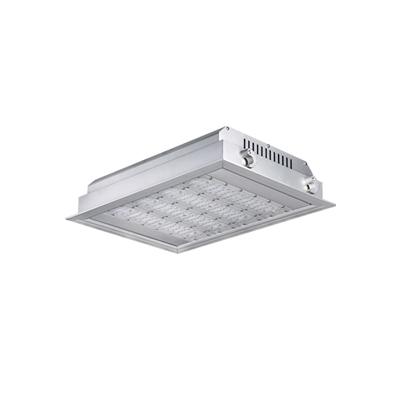

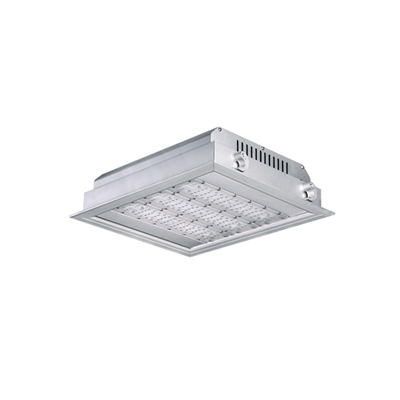

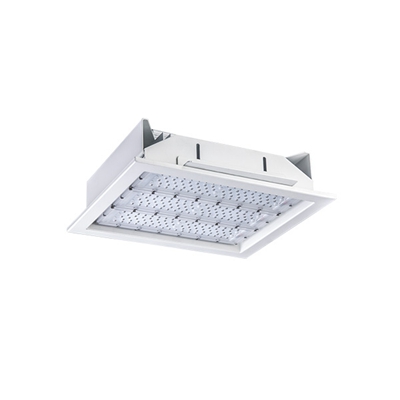

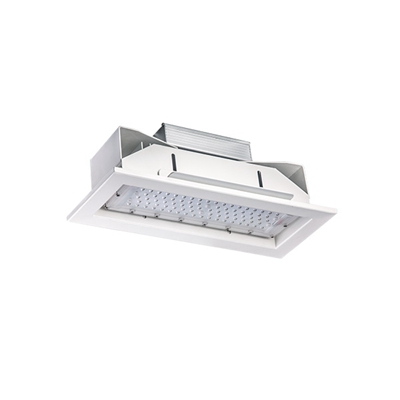

Products: 80W LED Canopy Light For Gas Filling Station,
Model No.: ZGSM-QD80H4
LED: Lumileds 3030
Driver: Meanwell
CCT: 5700K
Optics: 110 degrees
QTY: 50 Units
Products: 100W LED Street Light
Model No.: ZGSM-LD100H5,
LED: Lumileds 3030
Driver: Meanwell
CCT: 5000K
Optics: Type 2M
QTY: 12 Units
| LED Brand | Lumileds LUXEON 3030/5050 |
| Driver Brand | Meanwell / Inventronics |
| Norminal Wattage | 80W |
| LED Module Quantity | 2 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 140-165 lm/w |
| Lamp Rated Lumen output | 11200-13200 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Stretching Aluminum |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE,ROHS,LM80,ATEX |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
Installation Manual_CanopyLightforGasStationLighting_H.pdf
Data Sheet_CanopyLightforGasStationLighting_H.pdf
 |  |  |
| How To Choose LED Gas Station Lights? | Guide to Buy Led High Bay Light | |
 |  |  |
| The Advantages Of Led High Bay Light | Why Does Led Use High Bay Light? |
- Long Lifetime
- High Efficacy
- No pollution
- Lower maintenance cost
- Much Safer
Simply said, well-made LED lights last a long time and may be left on 24 hours a day, seven days a week. This is because, unlike traditional light sources, LEDs emit very little heat, making them unlikely to overheat or catch fire.

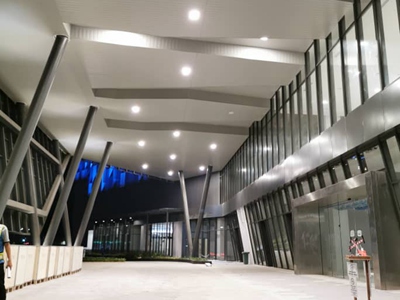

Yes, it could also be applied to office, warehouse, workshop, apartment, supermarket, hotel, resturant and so on.
