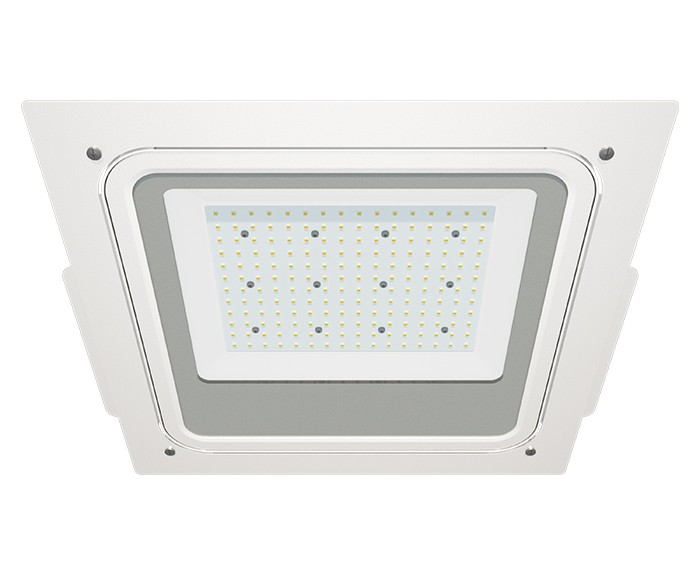

Recessed LED Canopy Light
Series A4 Recessed LED Canopy Light
Model:
ZGSM-QD120A4
Applications：
Gas station | Toll station | Petrol station
gas station canopy light, led gas station light, led canopy lighting fixtures, gas station canopy lighting, canopy led light
gas station canopy light, led gas station light, led canopy lighting fixtures, gas station canopy lighting, canopy led light
1. Wide power range: 40W~200W.
2. Special circuit design, single LED’s damage won't affect others' normal work.
3. Modular design for easy installation, replacement and maintenance.
4. High Lumen output up to 140lm/ w with high quality LED chips.
5. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.
6. Designed to last at least 100,.000 hours at L70.
7. Multiple lighting distributions are available.
8. Multiple lighting distributions are available.
gas station canopy light, led gas station light, led canopy lighting fixtures, gas station canopy lighting, canopy led light
| Model | ZGSM-QD120A4 |
| LED Brand | Lumileds LUXEON 3030 |
| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 120W |
| LED Module Quantity | 3 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 140lm/w |
| Lamp Rated Lumen output | 16800 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Stretching Aluminum |
| Cover | PC lens |
| Rating | IP65 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE,ROHS,LM80 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | White |
| Warranty | 7 years |
gas station canopy light, led gas station light, led canopy lighting fixtures, gas station canopy lighting, canopy led light
| Fixture Dimension | 330x365x130 mm |
| Fixture Weight | 6.7 kg |
| Packing Dimension | 415x365x195 mm |
| Packing Weight | 8.7 kg |
