ENEC certified LED road street light

ENEC certified LED road street light Saves energy and improves road safety in your city. The complexities of transportation infrastructure mean varying types of illumination are needed to ensure traffic flows smoothly. ZGSM LED street lighting is a cost-effective and sustainable choice for cities today.



Key Features

1.70% energy saving, short ROI period

2. Up to 100, 000hrs @ L70, low maintenance cost

3. World-class, approbated quality components (LEDs /Driver /etc.)

4. Support horizontal and vertical mounted, suitable for different light poles

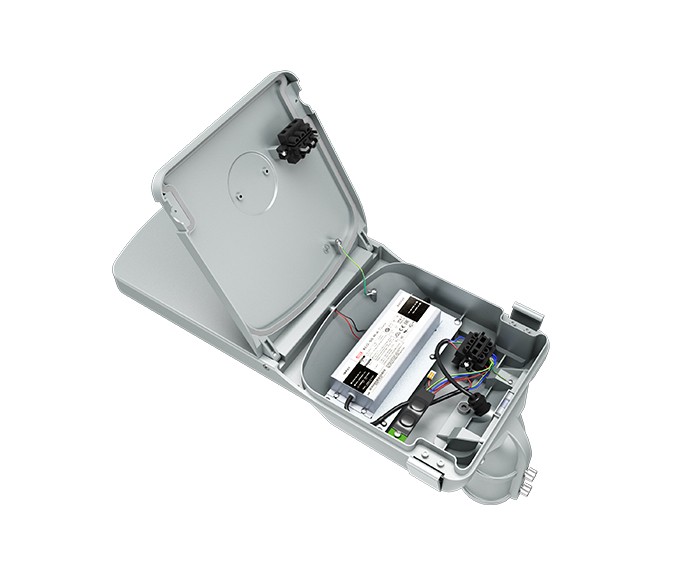

5. Tool-less opening of driver box, ease of maintenance

6. 5 years warranty


LED BrandLUMILEDS   3030 OR 5050
Driver BrandInventronics   /Other brands on request
Normal Wattage80W
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-155lm/w
Lamp Rated Lumen output11200-12400   lm (Lumen tolerance +/- 5%)
Color Rendering Index70   (80 is optional)
Color Temperature3000K,   4000K, 5000K, 5700K
Photometric TypeType   II, Type III
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C,   10%~90%RH
Total Harmonic Distortion<   10%
Lumen Maintenance>   100,000 hours -L70, @25 ºC (77 ºF)
BodyHigh-pressure die-cast aluminum
CoverTempered   glass
RatingIP66   IK10
Protection Class   I (Default) /Class II
CertificationCE, RoHS, ENEC, CB, LM79, LM80, TM-21
Dimming Options1-10V Dimming   (Default) /Timer Dimming
Available on request

NEMA   socket (3/5/7pins), ZHAGA socket, Short cap,

 Photocell, Motion sensor, Knife   switch, NTC, OLC,

Solar Compatible, DALI Dimming

Color OptionsGray   (Default) /Black (available on request)
Warranty5   years


Is the street light 240v?

In residential areas, luminaires are typically 120 or 240VAC single-phase. Older highway lights and airport runway lights operate on 5kV series circuits powered by constant current transformers.

How much space should be left between luminaires on a straight road?

Technically, the distance between two street lights should be 29 meters. This is defined by the calculation of rod height and other factors. The purpose of maintaining a standard distance is to maintain good lighting on the street. But in many parts of the PCB, the distance between the two lights is as high as 50 meters.

How high should the street lights be?

Between 9 and 14 feet

The average height of a street light pole is between 9 and 14 feet. But there are also smaller ones, ranging from 5 feet to 6.5 feet. These are mainly used in pedestrian areas rather than roads.
