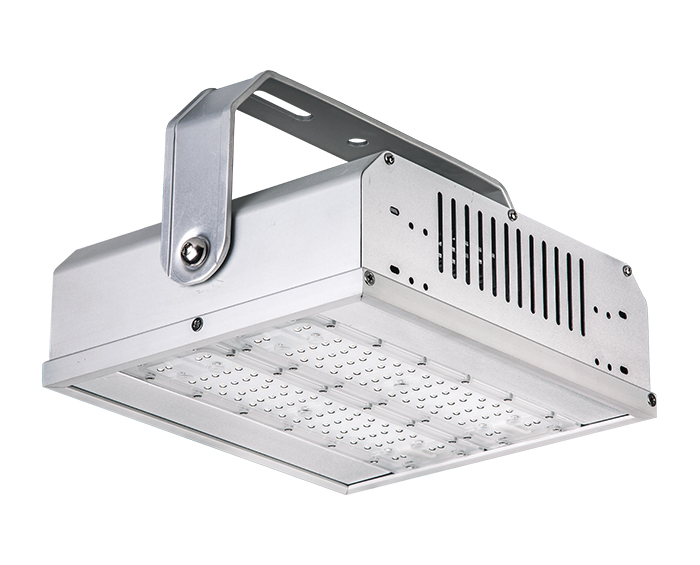

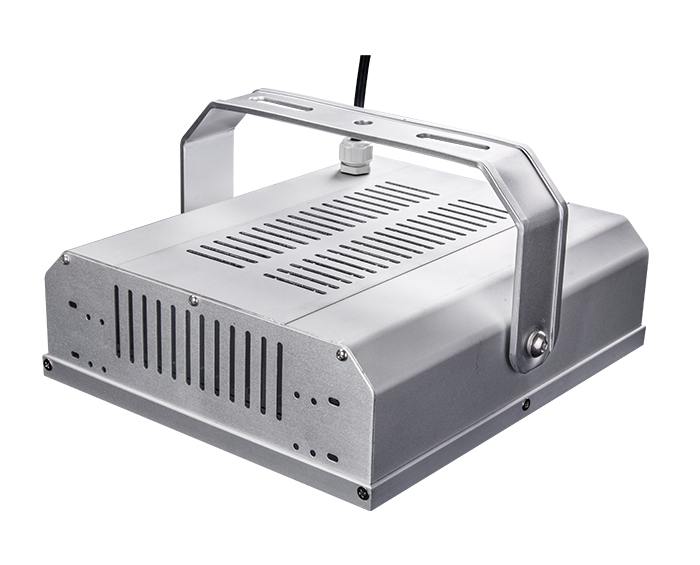

120w High Lumen High Mast Lights for Airport

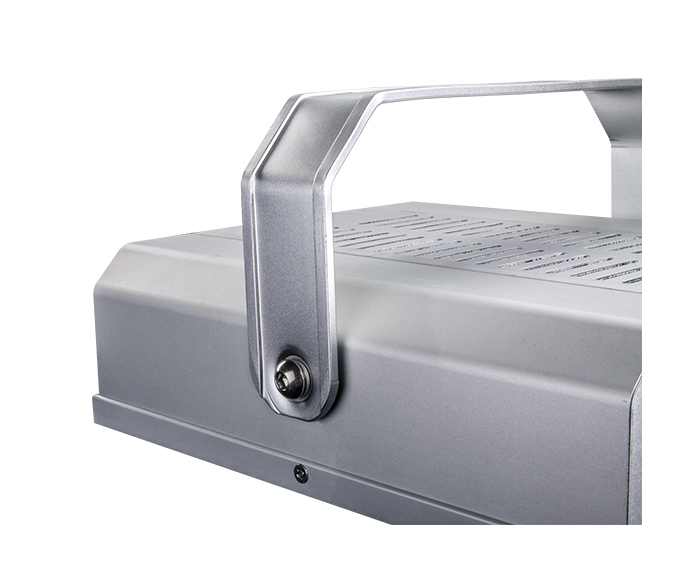

High mast lights are the most effective way to illuminate large areas of an airport with minimal obstacles. They can also be used for courtyard and area lighting. The 360° rotatable bracket adjusts the mounting angle arbitrarily, and the modular design facilitates installation, replacement, and maintenance.



Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

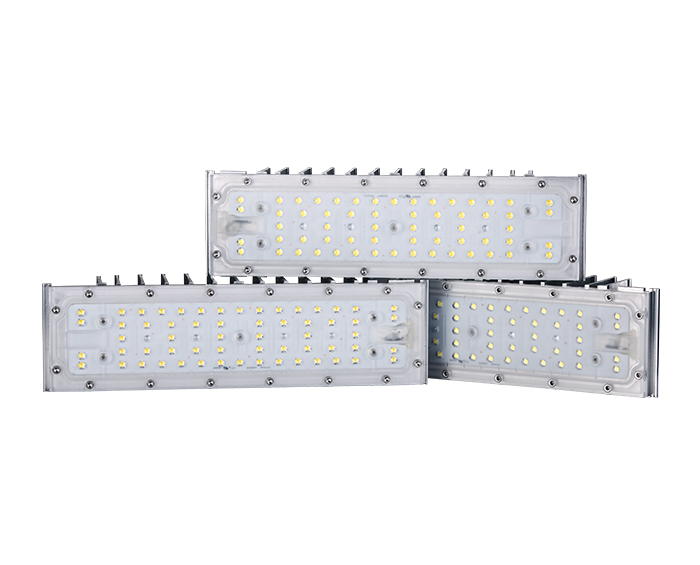

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage120W
LED Module Quantity2 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-155 lm/w
Lamp Rated Lumen output15000-18600 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


What is a floodlight mast?

The high mast floodlight is designed to be installed a few meters above the ground. These luminaires offer a high level of brightness and a narrower beam angle to focus light and avoid scattering.

Why do some stadium lights come on?

Stadium lights are very powerful sports lights, installed at high places, with a small beam angle, usually between 12-60 degrees. Using these smaller beam angles, the light intensity within that angle is higher, allowing bright light to reach the ground from a higher altitude.
