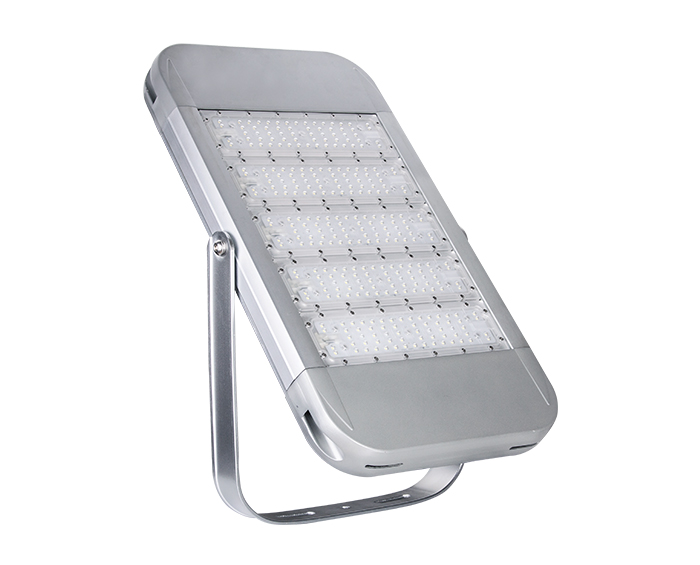

IP66 IK10 240w Modular Design led flood lights outdoor

ZGSM's LED Dimmable Flood Lights have a dimmable option: The dimmable option allows you to adjust the brightness of the LED lamp to your needs. Tested by IP66, IK10, it is ideal for outdoor use, and the modular design is convenient for installation and maintenance.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. High Lumen output up to 165lm/ w with high-quality LED chips.

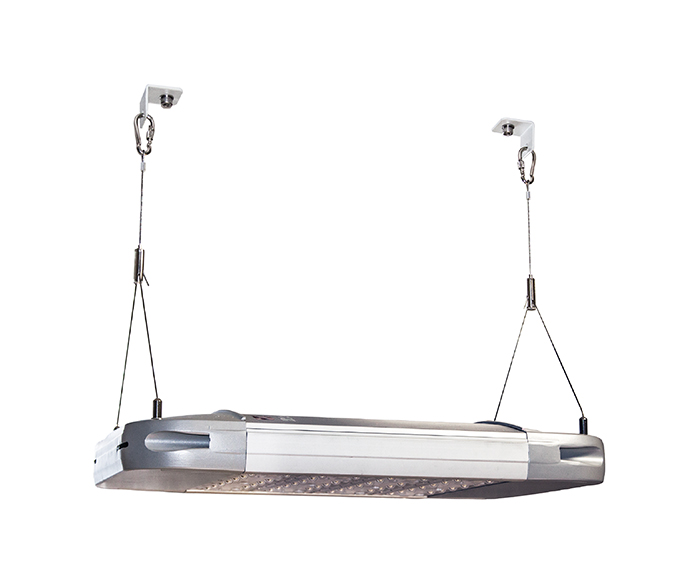

4. Various applications with different mounting Accessories.

5. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

6. Designed to last at least 100, 000 hours at L70.

7. Multiple lighting distributions are available.

Specifications

Model	ZGSM-FGD240H5
LED Brand	Lumileds LUXEON 3030/5050
Driver Brand	Meanwell HLG series
Normal Wattage	240W

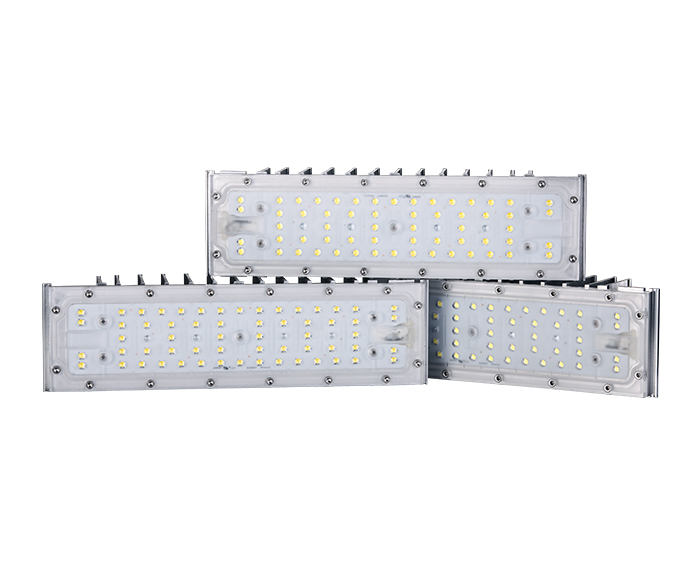

LED Module Quantity	5 modules
Input Voltage	100-240/277/347/480VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	130-160 lm/w
Lamp Rated Lumen output	31200-38400 lm (Lumen tolerance +/- 5%)
Color Rendering Index	70 (80 is optional)
Color Temperature	3000K, 4000K, 5000K, or 5700K
Photometric Type	60,90,110 degrees
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Body	Die-cast Aluminum Housing
Cover	PC lens
Rating	IP66 IK10
Protection	Class I ( Class II optional)
Certification	CE, ROHS, LM80
Dimming Options	1-10V or DALI or PWM or Timer
Control Options	Motion sensor or Smart control
Color Options	Silver
Warranty	7 years

FAQ

What does a dimmable floodlight mean?

Dimming lights means reducing energy consumption, and the best part is that you can use dimmable LED lights in non-dimming circuits. It should be noted that non-dimmable lamps are not designed to operate in dimmable circuits, as both the lamp and the circuit can be damaged.

What is a 1-10V dimmer?

Explains 1-10V dimming

Street lights with 1-10V dimming uses a controlled DC voltage signal to change the brightness of the accessory. 1 is the lowest level and is usually 10% light output, 10 is the brightest, and 100% light output. The light output has a linear pattern between 1 and 10V, so 5 is about 50%.

What is DALI Dimming Control?

DALI (Digital Addressable Lighting Interface)

These dimming switches use a digital protocol to send dimming control signals to the driver and are connected to the main power supply via separate wires. They do not directly control the energy transmitted to the driver. The lamp is dimmable from the (direct) DALI.
