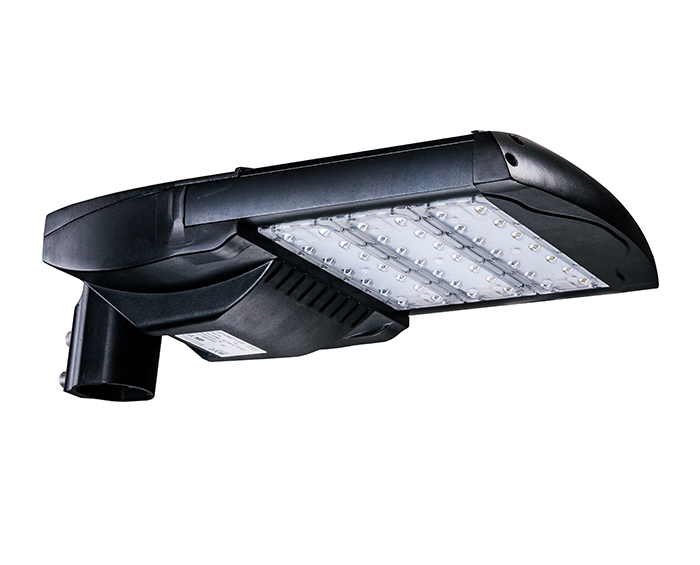

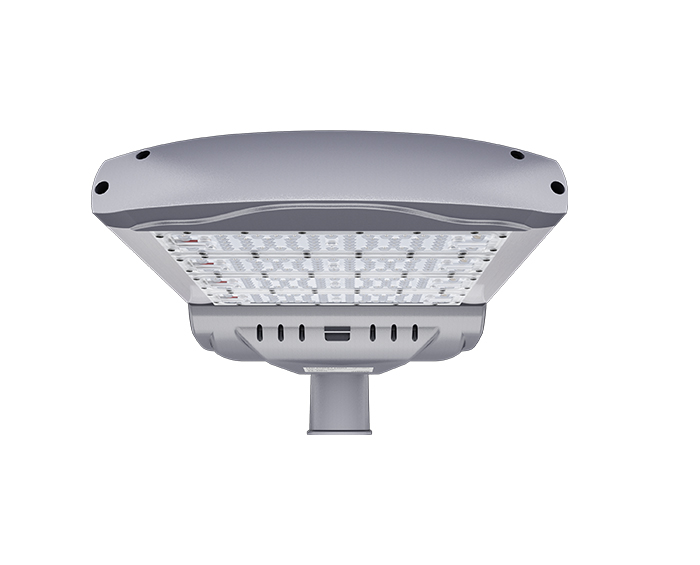

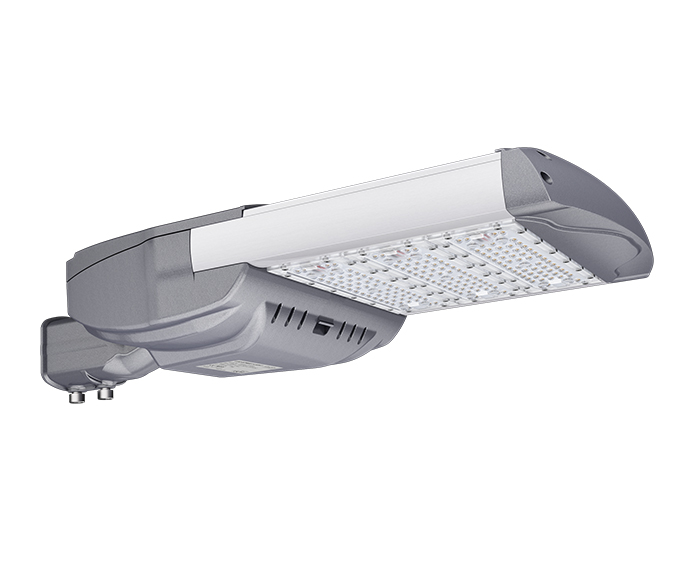

120w Class II Modular Design Road light LED

120w Class II Modular Design Road light LED, It has obtained CE, ROHS, GS, CB, SAA, FCC, UL, cUL, DLC, LM79, LM80, IP66, and IK10 certification, and test reports, The modular design is convenient for installation and maintenance, and it is an ideal choice for municipal engineering, infrastructure projects, and other road lighting projects.



Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of driver box of the lamp.

7. High Lumen output up to 165lm/ w with high quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.


14. 7 years warranty


LED BrandLumileds Luxeon TX
Driver BrandMeanwell or Inventronics
Normal Wattage120W
LED Module Quantity3 modules
Input Voltage100-240/277VAC/DC24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110lm/w
Lamp Rated Lumen output13200 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years

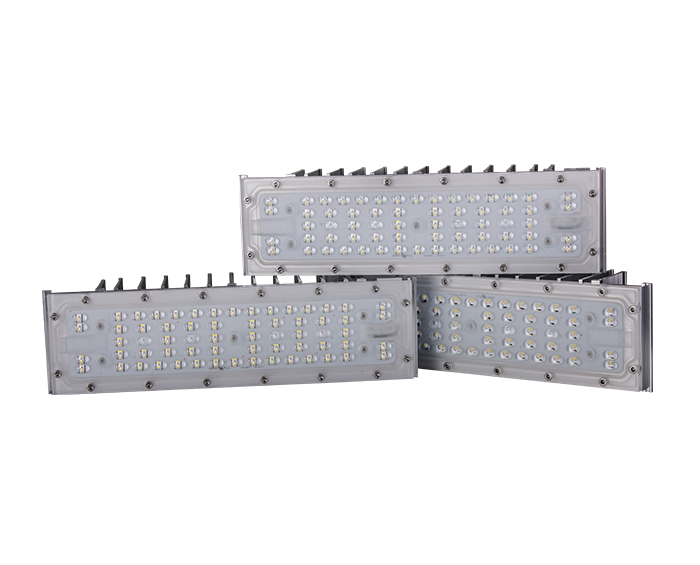

1. Modular LED Lighting Advantages

The luminaire module system allows us to efficiently serialize power in 30 watts, 40 watts, 50 watts, and 60-watt increments in several different luminaires of the same product, with wattages that can be customized according to customer requirements. Advantage? Simply specify the number of modules needed to deliver the desired lumens to different targets from different heights or for different purposes. Learn more about using LED lighting in industrial environments. Get the extra efficiency of the entire lighting project from the same manufacturer in the same delivery with the same look, the same performance, and the same maintainability. The end result is a highly configurable product that can meet a wide range of application needs.

Lots of advantages. Some examples are listed below:

• Save money by reducing the variety of parts and product range

• Improve reliability by limiting design time, how parts are assembled, and taking advantage of product simplicity

• It is easier to replace parts without actually changing other parts of the product

Delivery is faster due to increased efficiency in modular design throughout the manufacturing process

Consider implementing modular design and lighting for your business. Time and money saved, as well as increased efficiency, will compensate for product and installation costs.

2. Some Major Factors In A Street Lighting Design Scheme

  • The brightness level should be appropriate.

  • Brightness uniformity must be achieved.

  • The degree of glare limitation is always incorporated into the design scheme.

  • The lamp spectrum for visual clarity depends on the appropriate luminaire.

  • The effectiveness of visual guidance is also an important factor.

3. What is color temperature and why is it important?

Color temperature is expressed in Kelvin and is a mathematical calculation based on a light source's Spectral Power Distribution (SPD). It enables a large range of unique color combinations. Different combinations of Correlated Color Temperature (CCT) and Color Rendering Indexes (CRI) are available in LED lighting, which can have different impacts on eyesight. The color temperature is measured in degrees Kelvin, with a warm light (yellowish) being around 2700K, neutral white being approximately 4000K, and cool white (bluish) being around 5000K or more.

Protecting the public with lighting that promotes alert drivers and a safe environment may be the greatest priority in many outdoor applications, to explain why it's necessary. In those circumstances, the suggested color temperature is used, taking into account the space and the people who will be using it.
