Basic Design Of Led Gopeng Lights

Jan. 16, 2020

UL certified led high bay light uses a single high-power LED packaged by an LED chip as the light source, uses a unique multi-chip integrated single-module light source design, and uses a high-brightness semiconductor chip with thermal conductivity High rate, low light attenuation, pure light color, no ghosting and so on. The unique design of the heat sink, combined with the electrical box, effectively conducts and diffuses heat, thereby reducing the temperature inside the lamp and effectively ensuring the life of the light source and power supply. The surface of the heat sink is anodized and anticorrosive. The structure is compact and beautiful. It meets the IP65 standard and has good anticorrosive, waterproof and dustproof performance. The energy-saving effect is obvious. The high-power LED light source is equipped with imported high-efficiency power supplies, which can save more than 50% of energy compared with sodium lamps. Green and environmentally friendly, no pollution, no pollution elements such as lead and mercury, and no pollution to the environment. The color rendering is good, and the presentation of real colors is more true. Various light colors are available, which can meet the needs of different environments, eliminate the depressed mood caused by the high or low color temperature of traditional lamps, make the visual sense more comfortable, and improve the work efficiency of workers. Adopting constant current and constant voltage control, applicable voltage wide (AC85V-265V) overcomes the power grid, noise pollution and lighting instability caused by the ballast, and avoids irritation and fatigue caused to the eyes during work. "

Unique design of ufo type led high bay light:

The appearance design is novel, the structure is clever, and it is full of modern flavor, which conforms to the trend of the times. In terms of heat dissipation, we have creatively adopted the design of an air convection cavity aluminum radiator. The upper and lower heat dissipation surfaces of the radiator are transparent front and back, and air convection holes are provided on the left and right sides to enhance the air circulation inside the cavity. Conducive to the discharge of heat, thereby effectively improving the heat conduction efficiency of the LED light source. The above unique heat dissipation design scheme ensures the safe working temperature of the high-power LED light source below 45 ° C. Using a unique secondary optical lens module and light output design. The length of the light spot is determined by the angle of light emitted by the LED, so that the distribution of light is reasonably controlled, superimposed waste of light is avoided, and light loss is reduced.

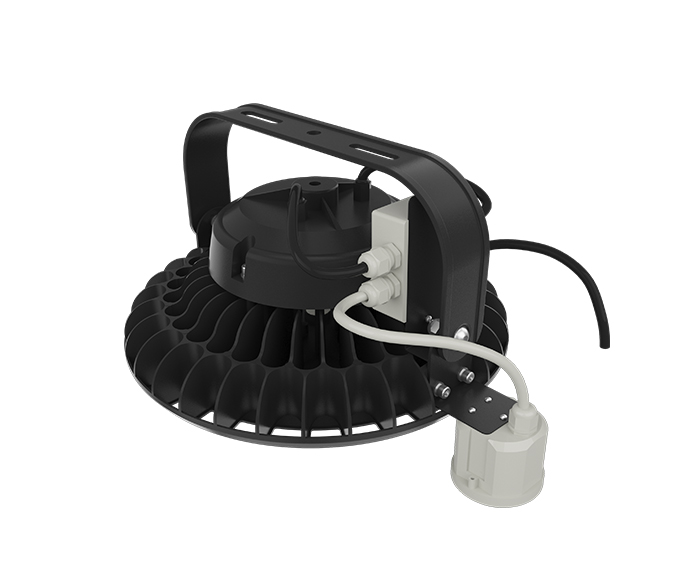

Ufo Type Led High Bay Light

Ufo Type Led High Bay Light

Characteristic parameter indicators:

Our designed workshop ufo led light works under the nominal rated power voltage and rated frequency, the actual power consumption and average life of the LED high-bay lamp is not less than 30,000h. Maximum temperature The rated maximum temperature Tc of the LED high bay light is not greater than 58 ° C. Maximum heat sink temperature The maximum heat sink temperature of each LED tube in the lamp is not greater than 65 ° C. Immunity, the voltage protection level of surge suppression performance (anti-lightning) should not be less than 2kV (line-line) and 4kV (line-ground). Light distribution characteristics When some of the LED bulbs in the lamp are turned off or the whole lamp is dimmed, its spot shape and uniformity of road illumination will not change significantly.
