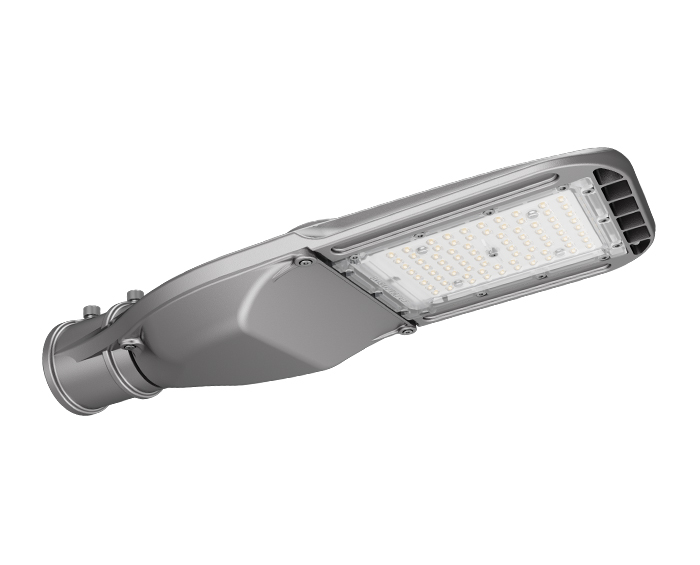

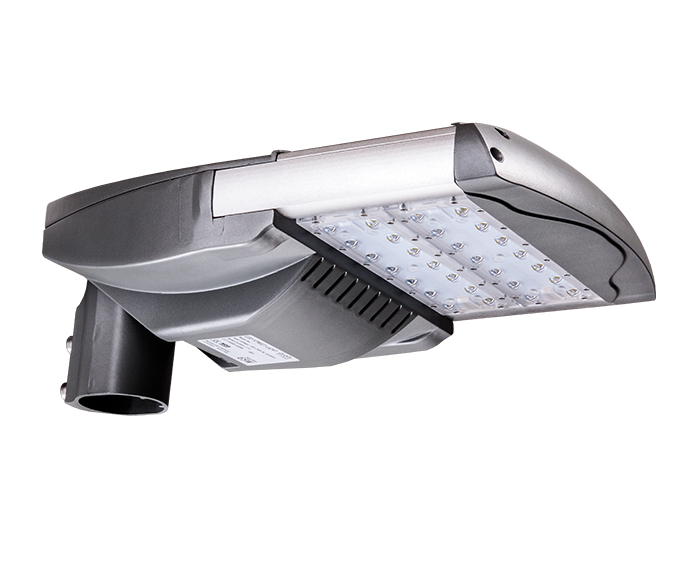

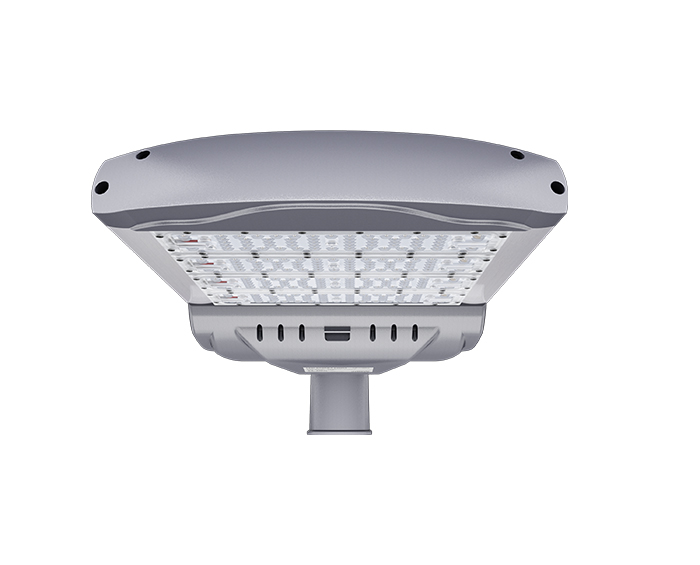

80w Modular design LED roadway lighting

80w Class II modular design LED road lighting is a modern design street lamp with a beautiful appearance, high lumen, and high output, which can realize the Intelligent of street lamps and provide a guarantee for urban lighting.



Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED damage won't affect others' normal work.

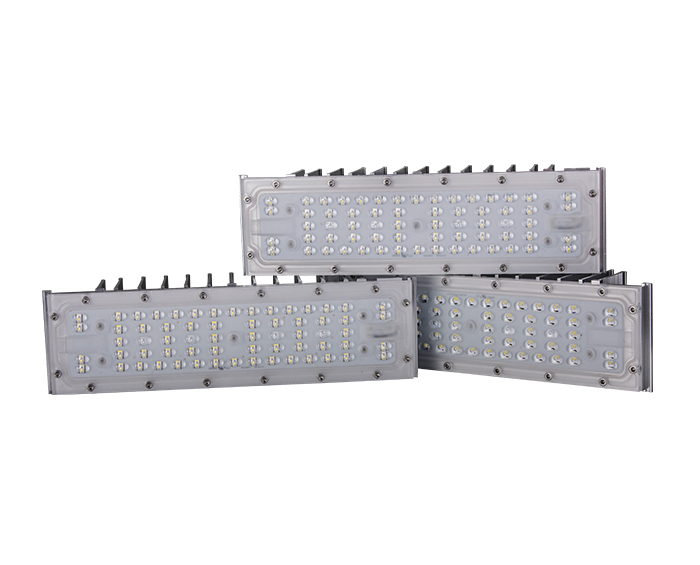

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE, ROHS, GS, CB, LM80, FCC, IP66, IK10

14. 7 years warranty


LED BrandLumileds Luxeon TX
Driver BrandMeanwell or Inventronics
Normal Wattage80W
LED Module Quantity2 modules
Input Voltage100-240/277VAC/DC24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110lm/w
Lamp Rated Lumen output8800 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control

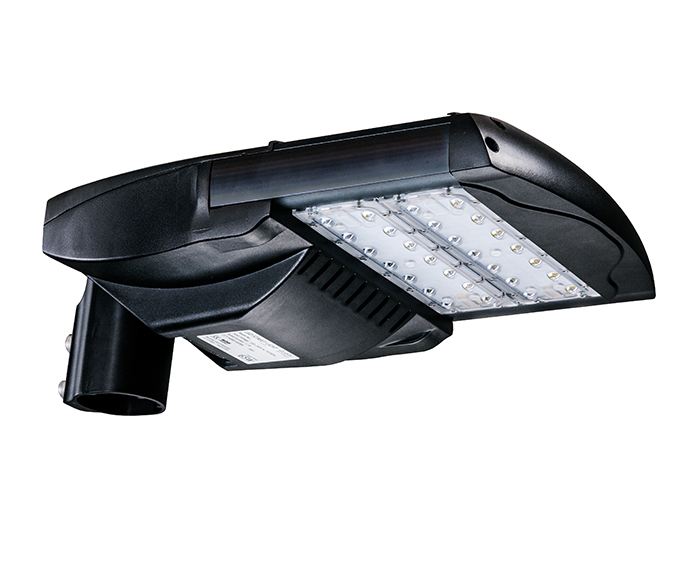

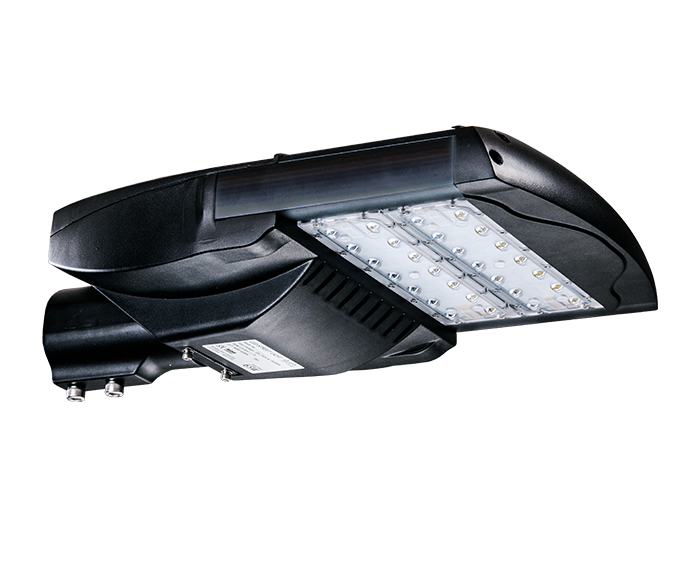

Color OptionsSilver or Black
Warranty7 years


1. What is a Power Surge Protector?

A typical surge protector passes current along with an outlet to many devices plugged into a power strip. SPD in LED lighting area usually means Surge Proection Device. It's a device or appliance that protects electrical equipment against voltage spikes in alternating current (AC) circuits. A voltage spike is a brief transient occurrence that can reach over 1,000 volts and lasts 1 to 30 microseconds. Lightning can generate a spike in voltage of over 100,000 volts, which can burn through wiring insulation and cause fires, but even small spikes can harm a wide range of electrical items, including computers, battery chargers, modems, and televisions. The surge device will typically activate at a predetermined voltage, usually 3 to 4 times the mains voltage, and divert the current to earth. The surge may be absorbed by some gadgets and released as heat.

2. Are street lights AC or DC?

After the street lighting system was actually installed, in my experience, most large installations used 480VAC three-phase power, so the single luminaire was 277VAC (one-phase grounded). In residential areas, luminaires are typically 120 or 240VAC single-phase.

3. Is there an industry standard for street lighting?

For the design, manufacture, and distribution of products, there are standards that have been established by international and regional standardization bodies like CIE, IES, and CEN that are widely regarded as industry best practices. The LED lights manufacured by ZGSM are CE, RoHS, CB, UL, DLC, SAA, ENEC certified. The lighting solutions we provide meet the requirements of these standard.
