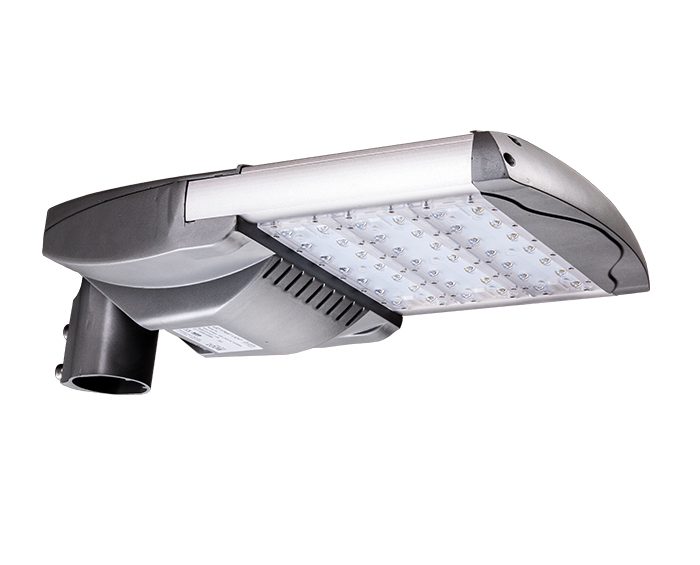

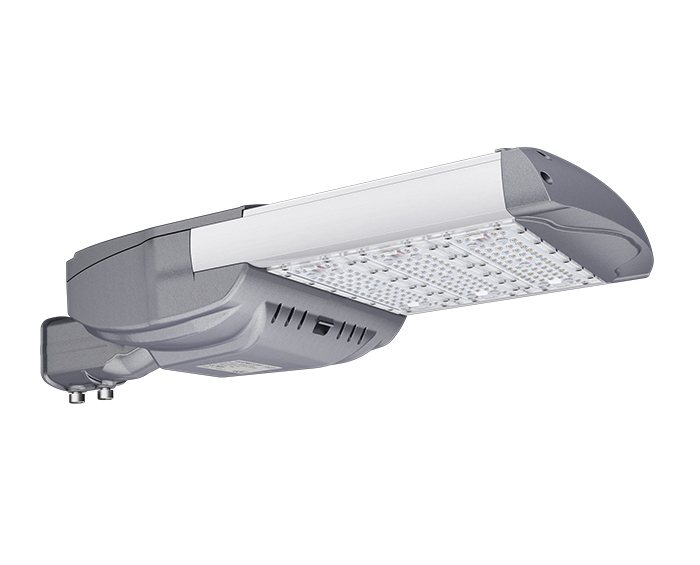

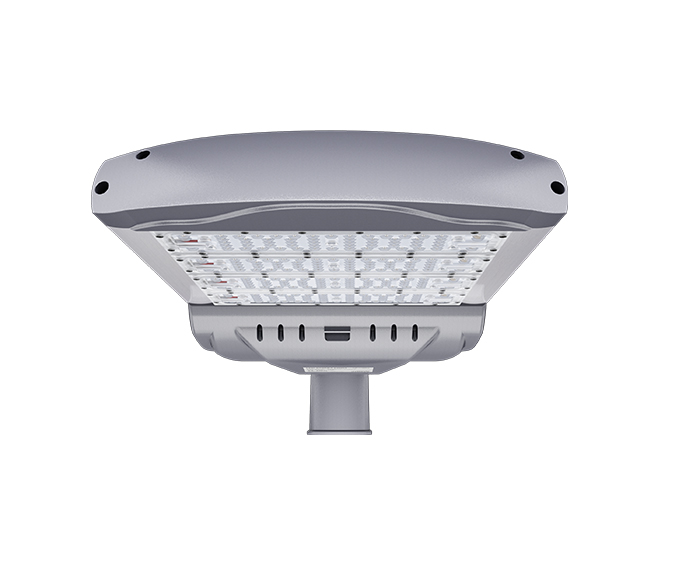

IP66 IK10 150w Modular Design Street LED Lights

IP66 IK10 150w Modular Design Street LED Light, With a modular design, you only need to specify the number of modules needed to supply the required lumens to different targets from different heights or for different purposes.  It is easier to replace parts without actually changing other parts of the product

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE, ROHS, GS, CB, LM80, FCC, IP66, IK10

14. 7 years warranty


Specifications

ModelZGSM-LD150H5
LED BrandLumileds 3030 /5050
Driver BrandMeanwell or Inventronics
Normal Wattage150W
LED Module Quantity3 modules
Input Voltage100-240 /277VAC /DC24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-160 lm/w
Lamp Rated Lumen output19500-24000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70( 80 optional)
Color Temperature3000K,  4000K, 5000K, 5700K
Photometric TypeType I Medium;Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ROHS, ENEC, CB, LM80, LM79, FCC, IP66, IK10
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years



FAQ

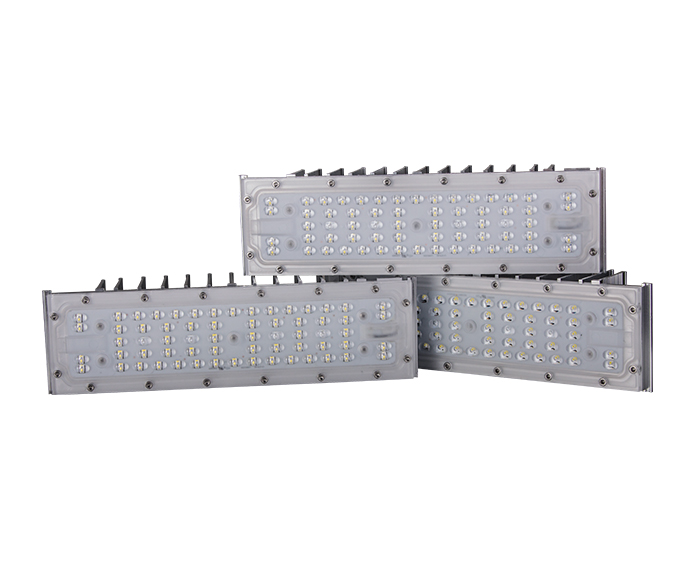

1. Advantages of modular LED lighting

The luminaire module system allows us to efficiently serialize power in 30 watts, 40 watts, 50 watts, and 60-watt increments in several different luminaires of the same product, with wattages that can be customized according to customer requirements. Advantage? Simply specify the number of modules needed to deliver the desired lumens to different targets from different heights or for different purposes. Learn more about using LED lighting in industrial environments. Get the extra efficiency of the entire lighting project from the same manufacturer in the same delivery with the same look, the same performance, and the same maintainability. The end result is a highly configurable product that can meet a wide range of application needs.

Lots of advantages. Some examples are listed below:

• Save money by reducing the variety of parts and product range

• Improve reliability by limiting design time, how parts are assembled, and taking advantage of product simplicity

• It is easier to replace parts without actually changing other parts of the product

Delivery is faster due to increased efficiency in modular design throughout the manufacturing process

Consider implementing modular design and lighting for your business. Time and money saved, as well as increased efficiency, will compensate for product and installation costs.


2. Do outdoor lights need an IP rating?

IP Rating(Solids-1st Digit) Protected Against...
0
Not protected against contact or entrance of substances
1

Solid objects greater than 50mm (e.g. hands)

2Solid objects greater than 12mm (e.g. fingers)
3Solid objects greater than 2.5mm (e.g. tools)
4Solid objects greater than 1mm (e.g. wires, screws)
5Dust in limited amounts
6All dust and harmful deposits
XProtection level not defined or tested

With the development of low-voltage lighting and LED technology, outdoor lighting is becoming easier to use, but your lamps need to have a certain IP rating, depending on where they are installed and what they are used for.


3. What voltage are LED street lights?

The most frequent operating voltage for streetlights was 120 volts (62 percent), followed by 240 volts (28 percent ). The majority of entities that own streetlights (82 percent) employ individual photocells to operate the streetlight's on/off function.
